SKU: HIK-DS-2TD2466-50Y
MPN: DS-2TD2466-50Y
UPC: 842571110227

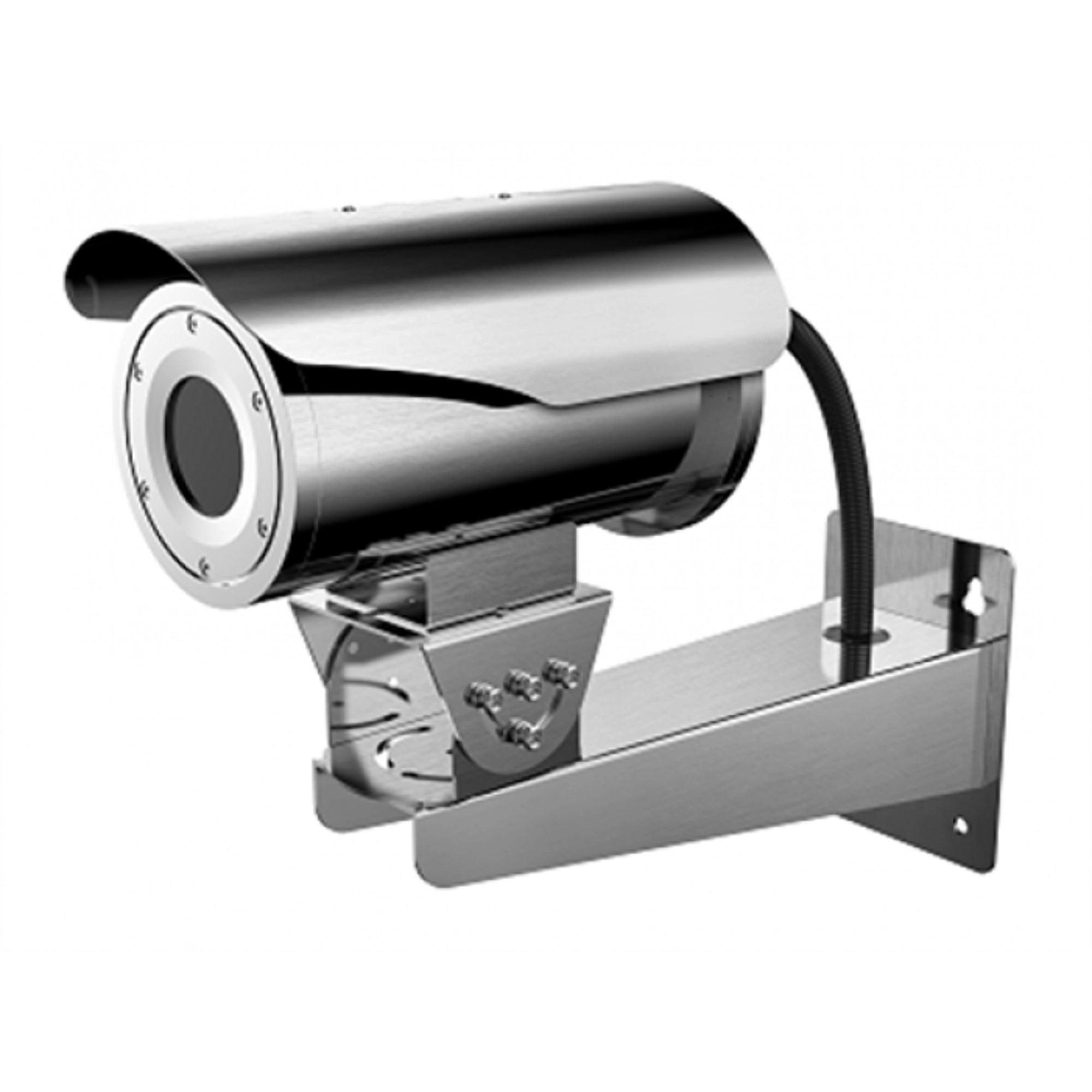

Outdoor network Stainless Steel thermal bullet, 640x512, 50mm lens, intrusion and line cross, temperature exception alarm, fire detection, audio in/out, 24VAC/12VDC/Hi-PoE, 24W
Send to a friend!
| Smart Function (Thermal Imaging) | Thermal Imaging Module Function |
| Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (@25 °C,F#=1.0) | 640*512 resolution, high sensitivity sensor, support contrast adjustment |
| Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit | Support shutter adjustment in various modes |
| Reliable temperature exception alarm function | 3D DNR, 15 palettes of color adjustable, image detail enhancement |
| Advanced fire detection algorithm |
Hikvision Thermal Cameras guarantee layered situational awareness across a wide range of scenarios such as perimeter protection, temperature measurement, fire detection, etc. They see from extended distances under virtually any light or weather condition, distinguishing people and vehicles from other objects with Deep Learning capabilities. Augmented with visible light imaging and visualized metadata, Hikvision Thermal Cameras are the ideal choice for enhanced awareness of events and emergencies 24/7.
The two most common challenges in traditional perimeter protection are frequent false alarms and poor imaging quality in limited light. Since Uncooled Focal Plane Array senses thermal radiation instead of visible light, thermal cameras can see objects and scenery in virtually any weather and under any lighting condition.
Hikvisions Security Thermal Cameras utilize advanced thermal detectors that provide excellent image performance with a high efficiency. They are ideal for perimeter protection 24/7.
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
| SKU | DS-2TD2466-50Y |
|---|---|
| Features | Audio, Auto Gain Control, Digital Noise Reduction, Heater & Fan, Weather Resistant |
| Manufacturer | Hikvision |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Lens Type | Fixed |
| Lens Size | 50mm |
| Mount Type | Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 310 mm 25 mm 263 mm (12.20 0.98 10.35) |
| Image Device | Vanadium Oxide Uncooled Focal Plane Arrays |
| Operating Humidity | 90% or less |
| Operating Temperature | -40 °C to 65 °C (-40 °F to 149 °F), |
| Power Consumption | 24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A, max. 10W (22W with De-icing Heater On), PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 12.42° 9.95° (H V) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Heater & Fan | Yes |
