SKU: HIK-DS-2DT6223-AELY
MPN: DS-2DT6223-AELY
UPC: 813908024302
Outdoor PTZ, 2.0M/1080p, Stainless Steel, DarkFighter, H264, 23X Optical Zoom, Day/Night, 120dB WDR, Smart Tracking, IP66, Heater, HiPoE/24VAC (Includes HiPoE Injector)
Send to a friend!

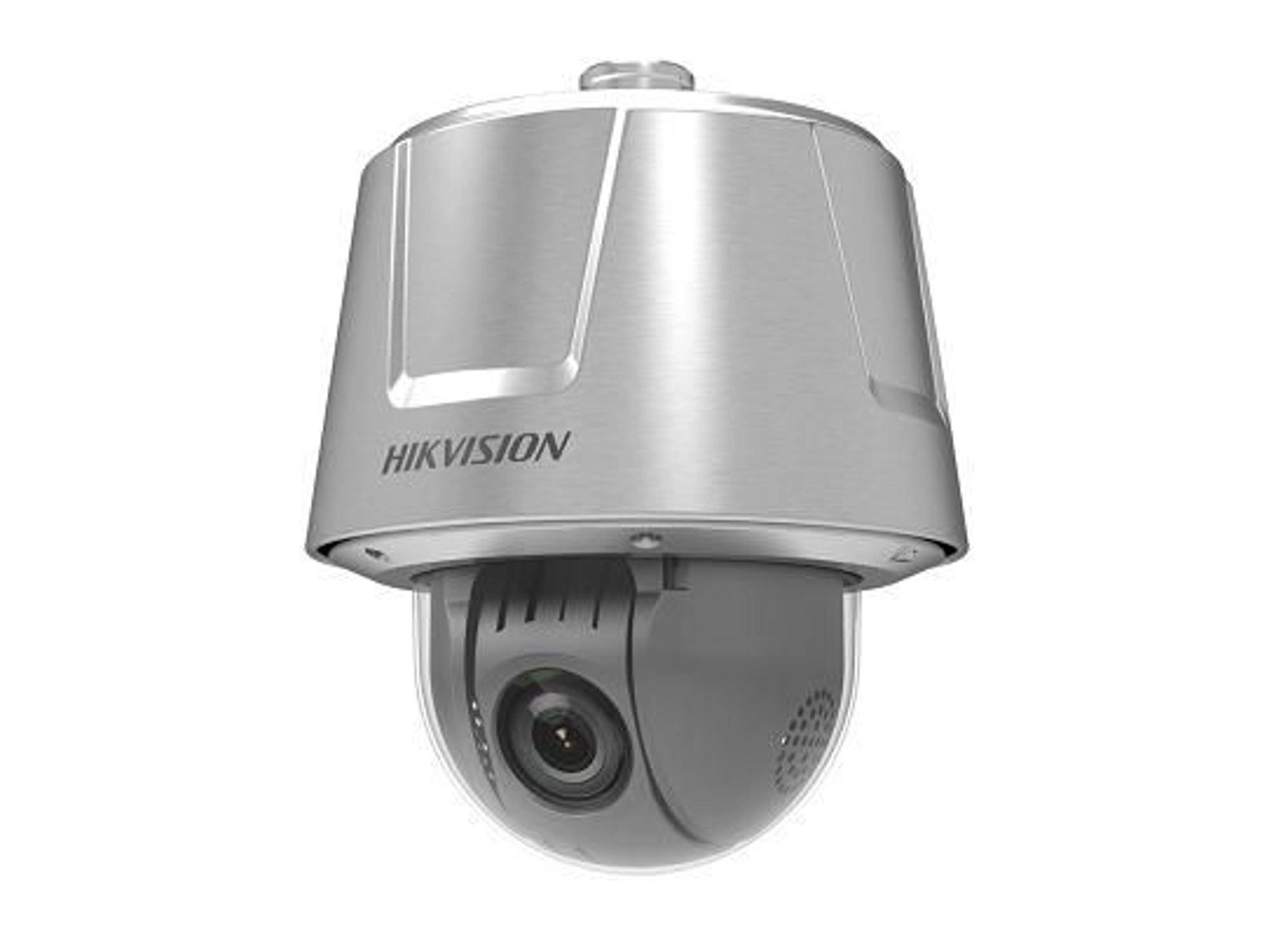

The Hikvision Anti-Corrosion DS-2DT6223-AELY Smart Outdoor PTZ Dome Camera is designed to avoid acidic and neutral salt fog corrosion. The DS-2DT6223-AELY also captures high quality color images in dimly lit environments with a cutting-edge low illumination level down to 0.002 lux (color). The embedded 1/1.9" progressive scan CMOS chip makes true WDR (120 dB) and 2 MP real-time resolution possible. The 23x optical zoom Day/Night lens offers abundant details over expansive areas. A wide range of Smart functions, including face detection, intrusion detection, line crossing detection, and audio exception, benefit users with great improvement in security efficiency and, more importantly, with key events/objects recorded for further forensic needs. Smart tracking enables the camera to detect any progressively moving object and follow it within the cameras area of coverage. Smart defog and EIS (Electronic Image Stabilization) are also supported to improve image quality in challenging conditions.
The Hikvision Anti-Corrosion DS-2DT6223-AELY Smart Outdoor PTZ Dome Camera is designed to avoid acidic and neutral salt fog corrosion. The DS-2DT6223-AELY also captures high quality color images in dimly lit environments with a cutting-edge low illumination level down to 0.002 lux (color). The embedded 1/1.9" progressive scan CMOS chip makes true WDR (120 dB) and 2 MP real-time resolution possible. The 23x optical zoom Day/Night lens offers abundant details over expansive areas. A wide range of Smart functions, including face detection, intrusion detection, line crossing detection, and audio exception, benefit users with great improvement in security efficiency and, more importantly, with key events/objects recorded for further forensic needs. Smart tracking enables the camera to detect any progressively moving object and follow it within the cameras area of coverage. Smart defog and EIS (Electronic Image Stabilization) are also supported to improve image quality in challenging conditions.
Features
| SKU | DS-2DT6223-AELY |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 23X |
| Mount Type | Pendant |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Automatic Gain Control (AGC) | Auto/manual |
| Dimensions (W x H) | 10" x 13" (262 mm 330 mm) |
| Image Device | 1/1.9" Progressive Scan CMOS |
| Minimum Scene Illumination | ƒ/1.5, AGC on; color: 0.002 lux, B/W: 0.0002 lux |
| Operating Humidity | 90% or less |
| Operating Temperature | -40° F to 149° F (-40° C to 65° C) |
| Power Consumption | Max.60W |
| Privacy Zone | 24 privacy masks programmable; optional multiple colors, and mosaics |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| S/N Ratio | =55 dB |
| Signal System | NTSC , PAL |
| Video Output | 1.0 V [p-p]/75 O, NTSC (or PAL) composite, BNC |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 59.8° to 3.0° (wide to tele) |
| Automatic White Balance | Auto/manual/ATW/indoor/outdoor/daylight lamp/sodium lamp |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range |
