SKU: HIK-DS-2DE7A432IW-AEB
MPN: DS-2DE7A432IW-AEB
UPC: 842571139846

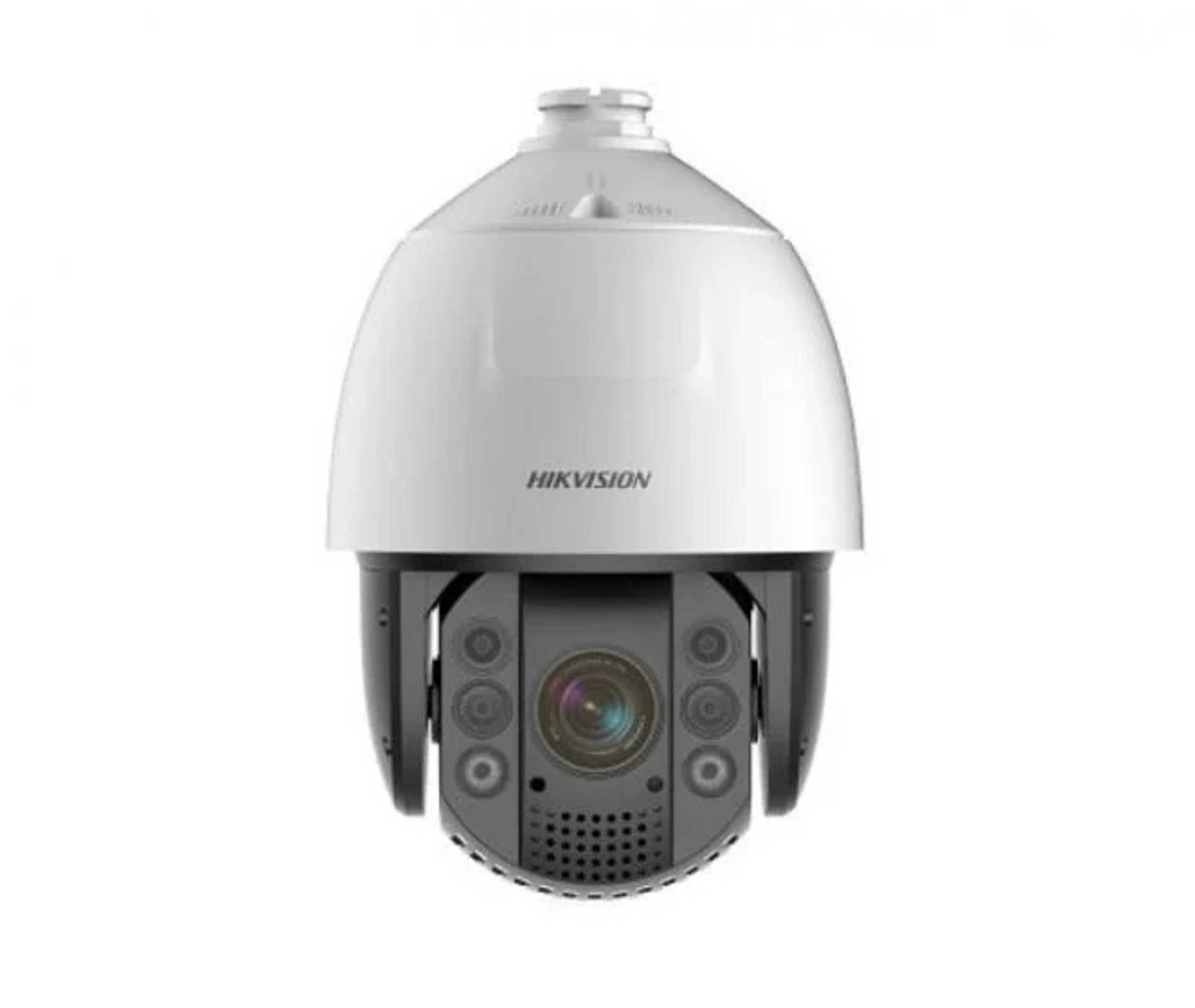

utdoor AcuSense PTZ Dome, 4MP, 32x Optical Zoom, 200m IR, H.265+, Face Capture, Smart Tracking, Powered by DarkFighter Technology, Audio Visual Alarm, 120dB WDR, IP66, Hi-PoE/24VAC, 40W
Send to a friend!
| 1/1.8" Progressive Scan CMOS | 32x Optical Zoom, 16x Digital Zoom Provide Close Up Views Over Expansive Areas |
| High Quality Imaging with 4 MP Resolution | Expansive Night View with up to 660 ft (200 m) IR Distance |
| Excellent Low-Light Performance with Powered-by-DarkFighter Technology | Human and Vehicle Targets Classification Based on Deep Learning |
| Audio Visual Alarm: Event Triggered White Flashing Light and Audible Warning | Up to Five Faces Captured at Same Time |
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
| SKU | DS-2DE7A432IW-AEB |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Hikvision |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 32X |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Dimensions (W x H) | 220 mm 363.3 mm (8.66" 13.91") |
| Electronic Shutter | 1/1 s to 1/30000 s |
| Image Device | 1/1.8" progressive scan CMOS |
| Minimum Scene Illumination | Color: 0.005 lux @ (ƒ/1.5, AGC on), B/W: 0.001 lux @ (ƒ/1.5, AGC on), 0 lux with IR |
| Operating Humidity | 90% or less (non-condensing) |
| Operating Temperature | -30° to 65° C (-22° to 149° F) |
| Power Consumption | 24 VAC, maximum 42 W (including maximum 18 W for IR and maximum 10 W for heater); Hi-PoE |
| Privacy Zone | 24 programmable polygon privacy masks, mask color, or mosaic configurable |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| S/N Ratio | >52 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal field of view: 50.8° to 2.6° (wide-tele), vertical field of view: 29.4° to 1.5° (wide-tele), diagonal field of view: 57.4° to 3° (widetele) |
| IR Distance | 200m/660ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Digital Zoom | Yes |
