Hikvision DS-2CD6984G0-IHS

Product Overview:

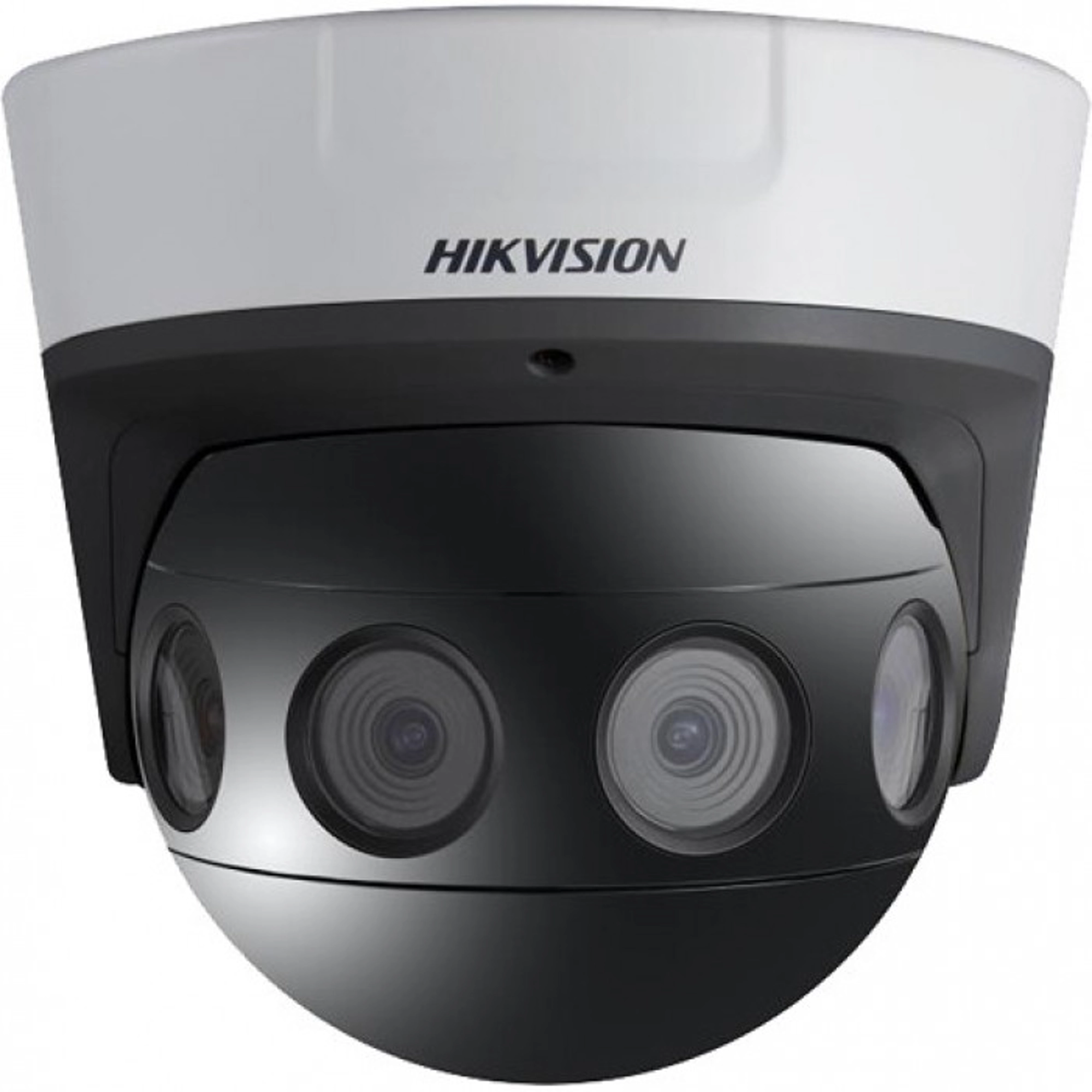

The Hikvision DS-2CD6984G0-IHS series of Panoramic Outdoor Dome Cameras feature four lenses to stitch together a 180° horizontal field of view (95° vertical) in Panorama view. Modes include Panorama + ePTZ and Divided Panorama for flexible viewing. Four IR LEDs provide a 66 foot (20 meter) illumination range. H.265 and H.264 compression saves bandwidth and data storage costs. IP67 and IK10 protects the camera from harsh outdoor conditions.

Key Features:

1/2" Progressive Scan CMOS
Maximum Resolution (Divided Panorama): (4 x 2032) H 3616 V @ 30 fps
Maximum Resolution (Panorama + ePTZ): 3840 2160 Stitched Panorama Image + 10 ePTZ 1920 1080 Images
Horizontal FOV 180°, Vertical FOV 95°
Panorama + ePTZ and Divided Panorama Modes
Four IR LEDs, 66 ft (20 m) IR Range
H.265, H.264
BLC, 3D DNR, HLC, Defog
Audio and Alarm I/O
12 VDC (802.3at, class 4), 17 W
IP67, IK10

• Image Sensor 1/2" progressive scan CMOS
• Minimum Illumination Color: 0.012 lux @ (ƒ/1.4, AGC on)
• B/W: 0.0012 lux @ (ƒ/1.4, AGC on), 0 lux with IR
• Shutter Speed 1/25 s to 1/100,000 s
• Slow Shutter No
• Auto-Iris No
• Day/Night IR cut filter
• Digital Noise Reduction 3D DNR
• WDR DWDR
• 2-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 90°

• Focal Length 2.8 mm, four lenses
• Aperture ƒ/1.4
• Focus No
• FOV Horizontal field of view 180°, vertical FOV 95°
• Lens Mount M12

• IR Range Four IR LEDs, up to 66 ft (20 m)
• Wavelength 850 nm

• Video Compression Main stream: H.265/H.264
• Sub stream: H.264/MJPEG
• H.264 Type Baseline Profile/Main Profile/High Profile
• H.264+ No
• H.265 Type Main Profile
• H.265+ No
• Video Bit Rate 32 Kbps to 16 Mbps
• Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32192 Kbps (MP2L2)
• SVC H.264 and H.265 encoding

• Main Stream Panorama + ePTZ Stitched Panorama Channel: 30 fps (3840 2160, 3072 1728, 2560 1440, 1920 1080, 1280 720) ePTZ Channels (110): 30 fps (1920 1080, 1280 720) Divided Panorama 30 fps (4 x 2032) H 3616 V
• Sub Stream Divided Panorama 30 fps (4 x 480) H x 704 V
• Image Enhancement BLC, 3D DNR, HLC, defog
• Image Settings Saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or Web browser
• Day/Night Switch (Day/Night)/Auto/Schedule/Triggered by Alarm In

• Network Storage Supports microSD/SDHC/SDXC card (128 GB), local storage, and NAS (NFS,SMB/CIFS), ANR
• Alarm Trigger Network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, UDP, Bonjour
• General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, watermark
• Firmware Version v5.5.70
• API ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View Up to 20 channels
• Users/Host Up to 32 users; 3 levels: administrator, operator, and user
• Client iVMS-4200
• Web Browser IE8+, Chrome 31.044, Firefox 30.051, Safari 8.0+

• Audio I/O 1 Input (line in), 1 output (line out), mono sound
• Communication Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet port; 1 RS-485
• Alarm 2 Inputs, 2 outputs (maximum 12 VDC, 1 A)
• On-Board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
• Reset Button Yes

• Environment Noise Filtering Yes
• Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• NVR Compatibility Fully compatible with Hikvision I Series, Super Series, and DeepinMind Series NVRs
• Operating Conditions -40° to +140° F (-40° to +60° C), humidity 95% or less (non-condensing)
• Power Supply 12 VDC ±20%, three-core terminal block, PoE (802.3at), class 4
• Power Consumption and Current 12 VDC, 1.4 A, maximum 17 W, PoE (802.3at, 42.5 V to 57 V), maximum 23 W
• Protection Level IP67, IK10
• Material Aluminum alloy and plastic
• Dimensions Camera 190 mm 207 mm 208 mm (7.5" 8.2" 8.2")
• Package 336 mm 261 mm 293 mm (13.2" 10.3" 11.5")
• Weight Approximately 3.5 kg (7.7 lb)
