Hikvision DS-2CD3788G2T-LIZSU

SKU: HIK-DS-2CD3788G2T-LIZSU

MPN: DS-2CD3788G2T-LIZSU 2.7-13.5mm

UPC: 842571148466

Description

8MP Smart Dual-Illuminations Verifocal Dome, 120 dB WDR technology, H.265+, 2.7-13.5mm Motorized varifocal lens, Focus on human and vehicle classification based on deep learning, Water and dust resistant (IP67) and vandal resistant (IK10)

Add to Wishlist

Send to a friend!

Product Overview:

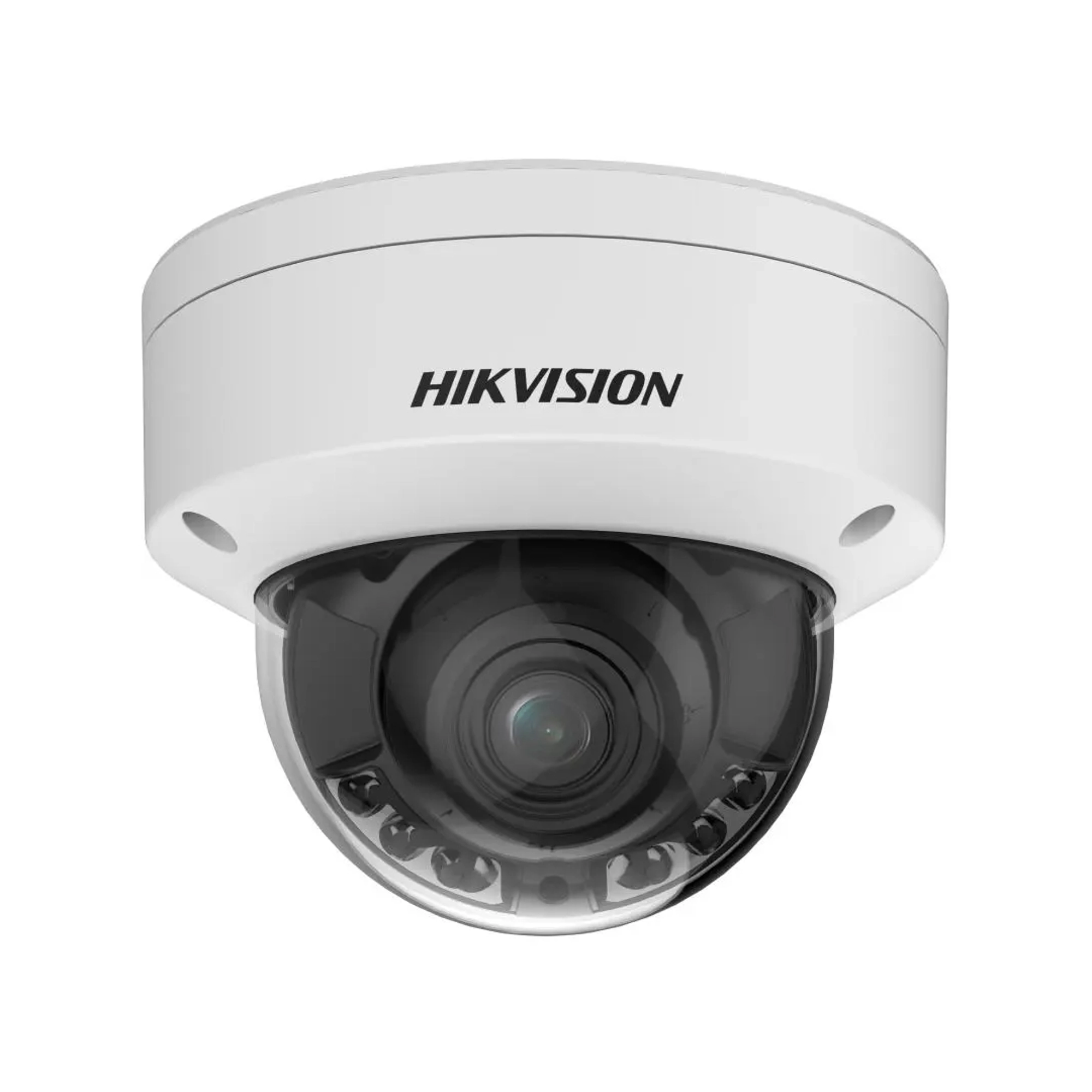

Hikvision 8MP Dual Illumination Motorized Varifocal Dome Network Camera DS-2CD3788G2T-LIZSU

Key Features:

High-quality imaging with 8 MP resolution
Motorized varifocal lens for easy installation and monitoring
Smart Dual-Light: advanced technology with long range
Clear imaging against strong backlight due to 120 dB WDR technology
Motorized varifocal lens for easy installation and monitoring
Efficient H.265+ compression technology
Water and dust resistant (IP67) and vandal resistant (IK10)

Specifications

Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Resolution
3840 2160
Illumination
Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens Type
Varifocal lens, motorized lens, 2.7 to 13.5 mm
Focal Length & FOV
7 to 13.5 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Lens Mount
Integrated
Iris Type
DC iris
Aperture
F1.2
Depth Of Field
1 m to 8
DORI
DORI
Wide: D: 87 m, O: 35 m, R: 17 m, I: 9 m

Tele: D: 216 m, O: 86 m, R: 43 m, I: 22 m
Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength
850 nm
HEOP
Open Resources
Memory: 40 MB,
Smart RAM: 350 MB,
eMMC: 2 GB
Computing Power
5 TOPS
Open Capability
HEOP 2.0 OpendevSDK
Deep Learning Structure
Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
Programming Language
C,C++
Video
Main Stream
50 Hz:
25 fps (3840 2160, 3200 1800, 2688 1520, 1920 1080, 1280 720)
60 Hz:
24 fps (3840 2160)

30 fps (3200 1800, 2688 1520, 1920 1080, 1280 720)
Sub-Stream
50 Hz: 25 fps (1280 720, 640 480, 640 360)
60 Hz: 30 fps (1280 720, 640 480, 640 360)
Third Stream
50 Hz: 10 fps (1920 1080, 1280 720, 640 480, 640 360)
60 Hz: 10 fps (1920 1080, 1280 720, 640 480, 640 360)
*Third stream is supported under certain settings.
Fourth Stream
50 Hz: 10 fps (1280 720, 640 480, 640 360)
60 Hz: 10 ps (1280 720, 640 480, 640 360)
*Fourth stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
*Third stream and fourth stream are supported under certain settings.
Video Bit Rate
32 Kbps to 16 Mbps
264 Type
Baseline Profile,Main Profile,High Profile
265 Type
Main Profile
Bit Rate Control
CBR,VBR
Scalable Video Coding (SVC)
264 and H.265 encoding
Region Of Interest (ROI)
5 fixed regions for main stream and sub-stream
Target Cropping
Yes
Audio
Audio Compression
711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC,HLC,3D DNR,Defog
SNR
= 52 dB
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone
-U: Yes, 2 built-in microphones
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium
Alarm
2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Reset Key
Yes
Power Output
12 VDC, max. 100 mA
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection,audio exception detection,defocus detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning
Deep Learning Function
Face Capture
Yes
People Counting
Yes
General
Power
12 VDC ± 25%, 1.05 A, max. 12.6 W,5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 15 W
Material
Metal
Dimension
141 mm 112 mm (5.6" 4.4")
Package Dimension
244 mm 174 mm 173 mm (9.6" 6.9" 6.8")
Weight
820 g (1.8 lb.)
With Package Weight
1200 g (2.6 lb.)
General Function
Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU
Protection
IP67: IEC 60529-2013,IK10: IEC 62262:2002
