Hikvision DS-2CD2743G2-IZS(BLK)

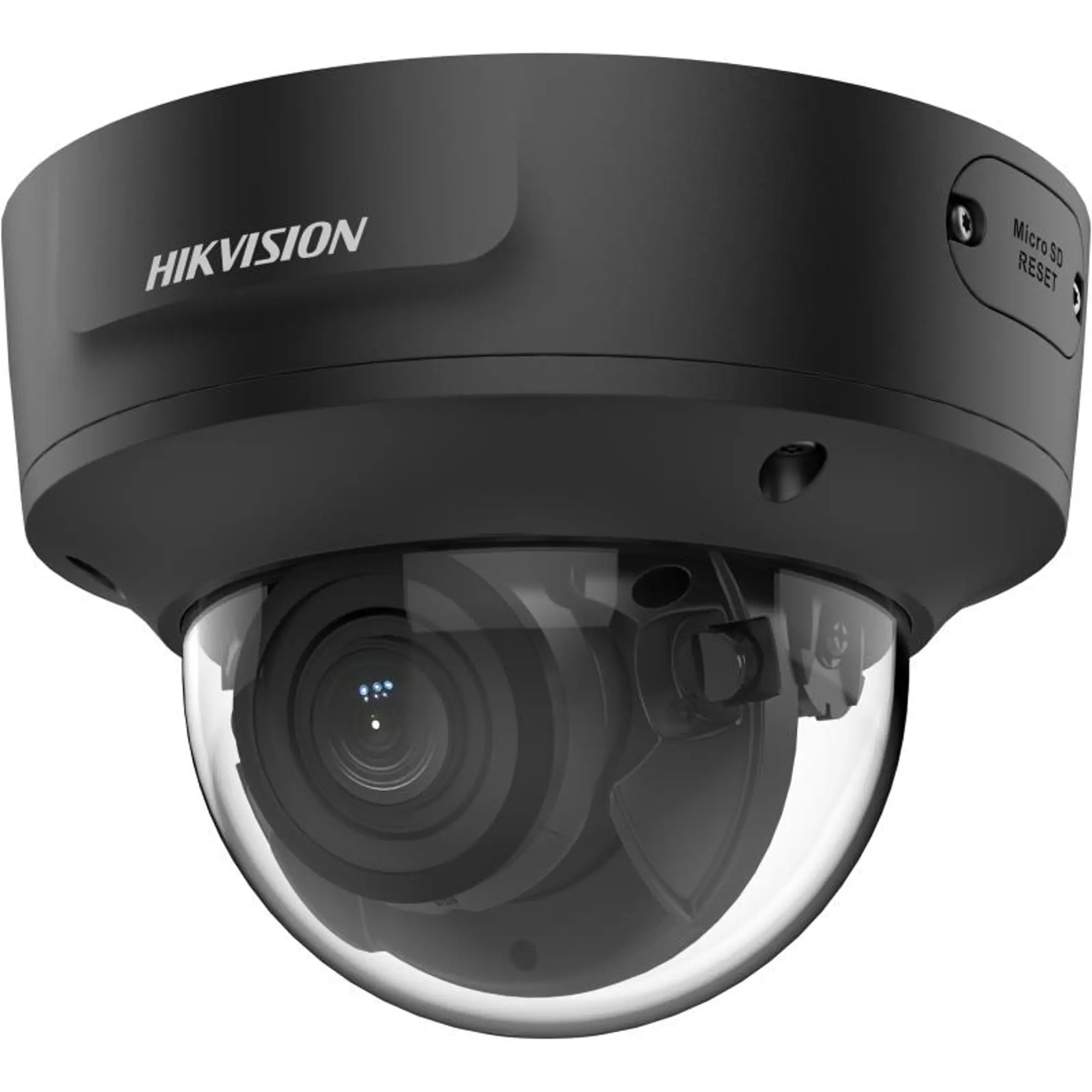

DS-2CD2743G2-IZS 4 MP AcuSense Motorized Varifocal Dome Network Camera

Camera Image Sensor 1/3 Progressive Scan CMOS Max. Resolution 2688 1520 Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on Shutter Time 1/3 s to 1/100,000 s Day & Night ICR Cut Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Lens Lens Type Varifocal lens, motor-driven lens, 2.8 to 12 mm Focal Length & FOV 2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4° Lens Mount 14 Iris Type Fixed Aperture F1.6 DORI DORI 2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m Illuminator Supplement Light Type IR Supplement Light Range Up to 40 m Smart Supplement Light Yes IR Wavelength 850 nm Video Main Stream 50 Hz: 25 fps (2688 1520, 1920 1080, 1280 720) 60 Hz: 30 fps (2688 1520, 1920 1080, 1280 720) Sub-Stream 50 Hz: 25 fps (1280 720, 640 480, 640 360) 60 Hz: 30 fps (1280 720, 640 480, 640 360) Third Stream 50 Hz: 10 fps (1920 1080, 1280 720, 640 480, 640 360) 60 Hz: 10 fps (1920 1080, 1280 720, 640 480, 640 360) Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR/VBR Scalable Video Coding (SVC) Yes Region of Interest (ROI) 1 fixed region for main stream and sub-stream Audio Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3) Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets Simultaneous Live View Up to 6 channels API ONVIF (Profile S, Profile G), ISAPI, SDK User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Image Image Parameters Switch Yes Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range (WDR) 120 dB SNR ≥ 52 dB Image Enhancement BLC, HLC, 3D DNR Interface Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port On-Board Storage Built-in microSD, up to 512 GB Audio -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key Yes Event Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Line crossing detection, intrusion detection Supports human and vehicle targets classification Face detection Linkage Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email General Power 12 VDC ± 25%, 0.88 A, max. 10.5 W, 5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W Material Upper cover and base: metal Bubble: plastic Dimension 153.3 111.6 mm (6.1 4.4) Package Dimension 244 174 173 mm (9.7" 6.9" 6.9") Weight Approx. 880 g (1.9 lb.) With Package Weight Approx. 1419 g (3.1 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter Approval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
