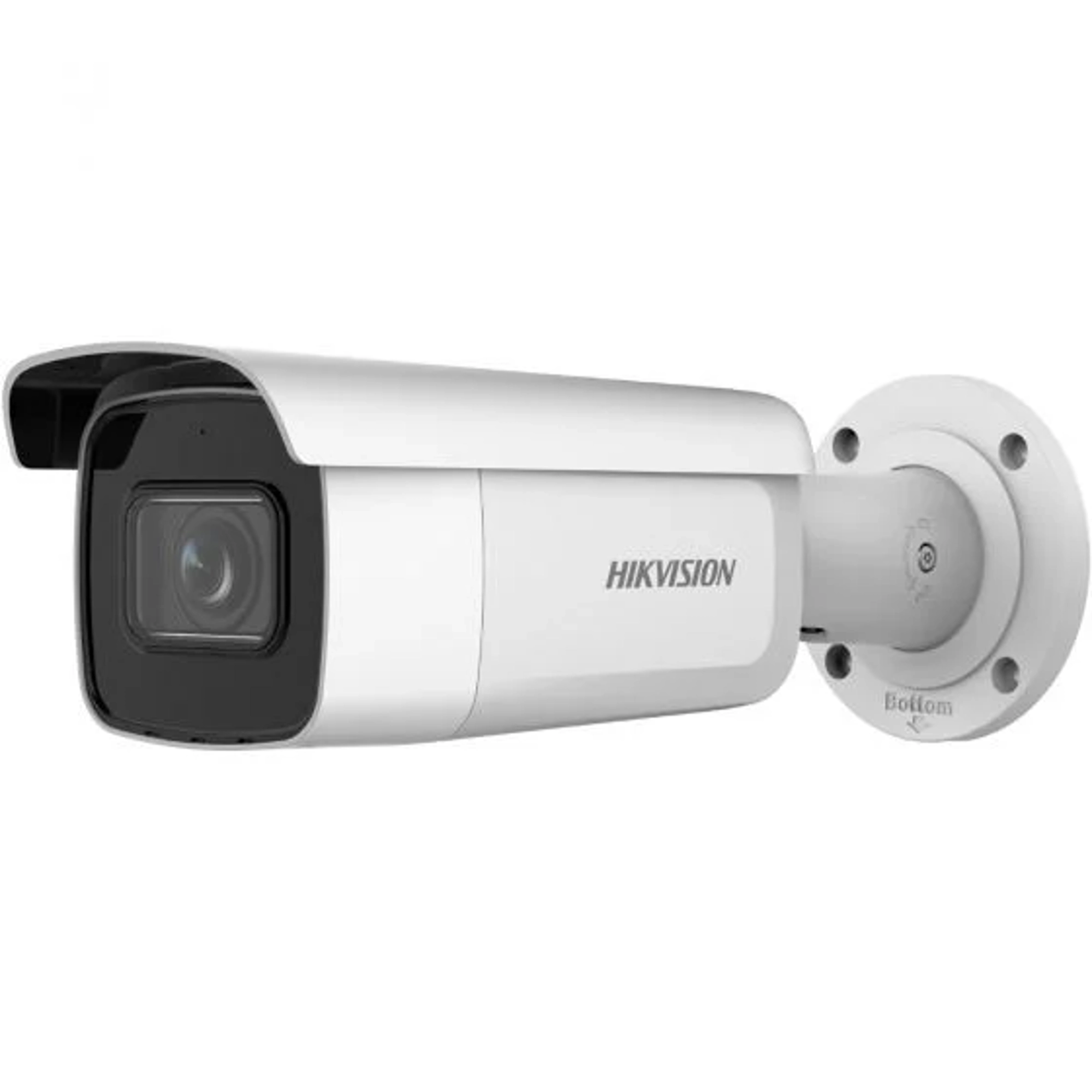

Hikvision DS-2CD2643G2-IZS
SKU: HIK-DS-2CD2643G2-IZS
MPN: DS-2CD2643G2-IZS
UPC: 842571140217
Description
Outdoor Bullet, 4MP-30fps, H265+, 2.8mm~12mm, Day/Night, 120dB WDR, EXIR 2.0 (30m), IP67, PoE/12VDC
Send to a friend!
SKU: HIK-DS-2CD2643G2-IZS
MPN: DS-2CD2643G2-IZS
UPC: 842571140217
Outdoor Bullet, 4MP-30fps, H265+, 2.8mm~12mm, Day/Night, 120dB WDR, EXIR 2.0 (30m), IP67, PoE/12VDC
Send to a friend!
| High quality imaging with 4 MP resolution | Efficient H.265+ compression technology |
| Motorized varifocal lens for easy installation and monitoring | Water and dust resistant (IP67) and vandal resistant (IK10) |
| Clear imaging against strong backlight due to 120 dB WDR technology | Focus on human and vehicle targets classification based on deep learning |
With deep learning algorithm, Hikvision AcuSense Cameras kick VCA accuracy and efficiency up a notch.
Watch this video to see how AcuSense products ensure home security with intrusion detection and deterrence.
Find all new upgrades, customize control of your devices, access to useful content, and enjoy better UI experience with Hik-Connect 5.0.
| SKU | DS-2CD2643G2-IZS |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hikvision |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 308.5 97.9 93 mm (12.2" 3.9" 3.7") |
| Electronic Shutter | 1/3 s to 1/100,000 s |
| Image Device | 1/3" Progressive Scan CMOS |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Operating Humidity | 95% or less (non-condensing) |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Power Consumption | 12 VDC ± 25%, 1.08 A, max. 13 W, 5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets |
| S/N Ratio | = 52 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4° |
| IR Distance | 60m/196.85ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
N/A
2.8-12mm
4
Hikvision
Infrared
Motorized Varifocal
White
