SKU: HAN-QRN-1630S
MPN: QRN-1630S
16CH NVR with 16 PoE Ports (POE Budget 130W) with 8MP Camera Support. H265, H264, MJPEG, 2 fixed internal SATA HDDs (10TB each or 20TB Total). 128Mbps Network camera recording, Dual Stream recording option, 2 HDMI Outputs with local 4K display resolution
Send to a friend!

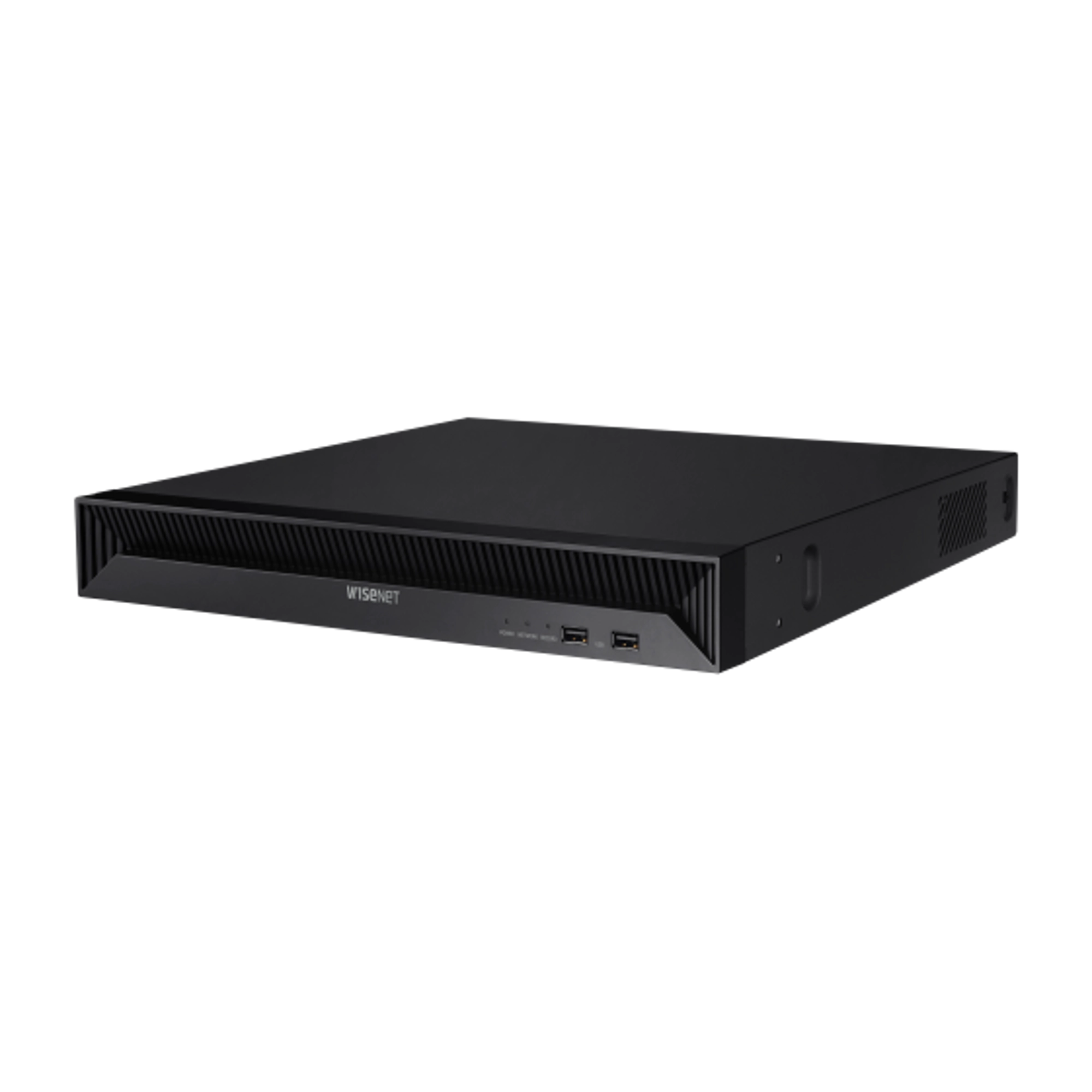

The QRN-1630S from Hanwha Vision is a 16 channel PoE NVR, No HDD.
The QRN-1630S from Hanwha Vision is a 16 channel PoE NVR, No HDD.
Features
SKUQRN-1630S ManufacturerHanwha Vision NDAACompliant IP Channels16 Channels Harddrive SizeNo HDD ProtocolsSamsung protocols, ONVIF Protocols FeaturesAlarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio Resolution8MP CompressionH.265, H.264, MJPEG BandwidthMax. 128Mbps Operating temperature 0°C to +40°C(32 to 104 Dimensions370.0 x 50.7 x 320 mm (14.6 x 2.0 x 12.6 inch) Voltage100 ~ 240 VAC ±10%; 50/60 Hz Power ConsumptionMax. 200W(682 BTU with 2HDD, PoE ON) NetworkPoE RJ-45 16EA (LAN, 10/100), RJ-45 1ea (LAN/WAN 1Gbps) SATASATA 2ea(up to 20TB) USB2EA(Front 2 x USB 2.0) Compression SupportedYes Alarm Notification by E-mailYes DDNS FunctionalityYes Supports the Full HD Output (HDMI)Yes Two Way AudioYes Supports PTZ ControlYes H.264 CompressionYes H.265 CompressionYes MJPEG CompressionYes
10TB
16
16
2
Hanwha Vision
