SKU: HAN-QNV-7082R
MPN: QNV-7082R
Send to a friend!

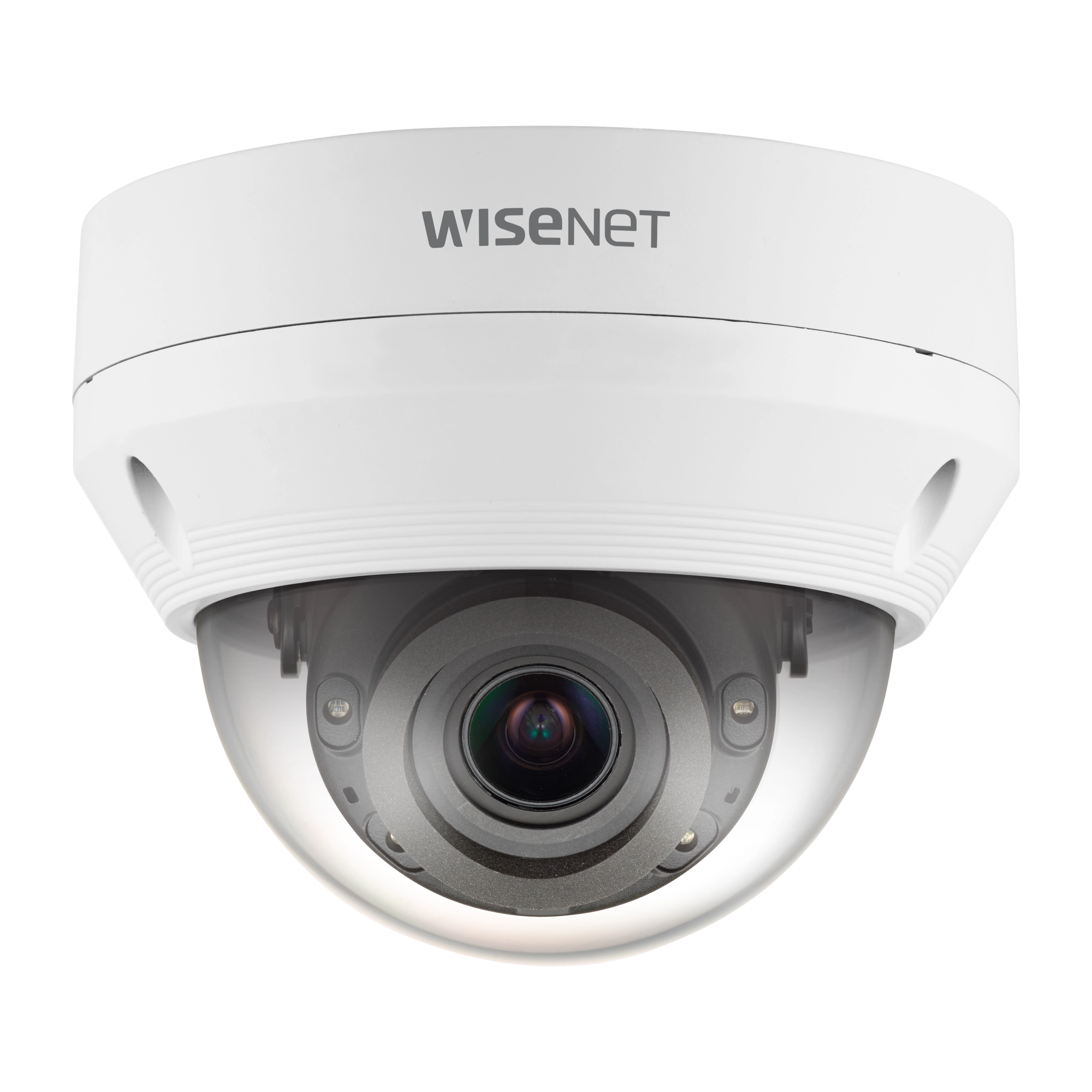

The QNV-7082R from Samsung is a 4MP network IR vandal dome camera, 3.2-10mm lens.
The QNV-7082R from Samsung is a 4MP network IR vandal dome camera, 3.2-10mm lens.
Features
| SKU | QNV-7082R |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.2-10mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Low / Middle / High |
| Dimensions (W x H) | 137.0 x 106.1mm (5.39 x 4.18") |
| Electronic Shutter | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Image Device | 1/3" CMOS |
| Minimum Scene Illumination | Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On) |
| Operating Humidity | Less than 95% RH |
| Operating Temperature | -40°C~+55°C (-40°F~+131°F) |
| Power Consumption | PoE: Max 11.4W, typical 8.5W, 12VDC: Max 9.6W, typical 7.2W |
| Privacy Zone | 6ea, rectangular zones |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Weatherproof | IP66 |
| Zoom Ratio | 3.1x |
| Digital Noise Reduction | SSNR |
| Angle of View | H: 98.6(Wide) ~ 30.8(Tele), V: 52.3(Wide) ~ 17.3(Tele), D: 115.7(Wide) ~ 35.3(Tele) |
| Rotation Angle | 0°~355° |
| Motion Detection Tracking | 4ea, polygonal zones |
| Back Light Compensation | BLC, WDR, SSDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| IR Distance | 30m/98.42ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking |
Hanwha Vision
