Global Cache GC-100-18

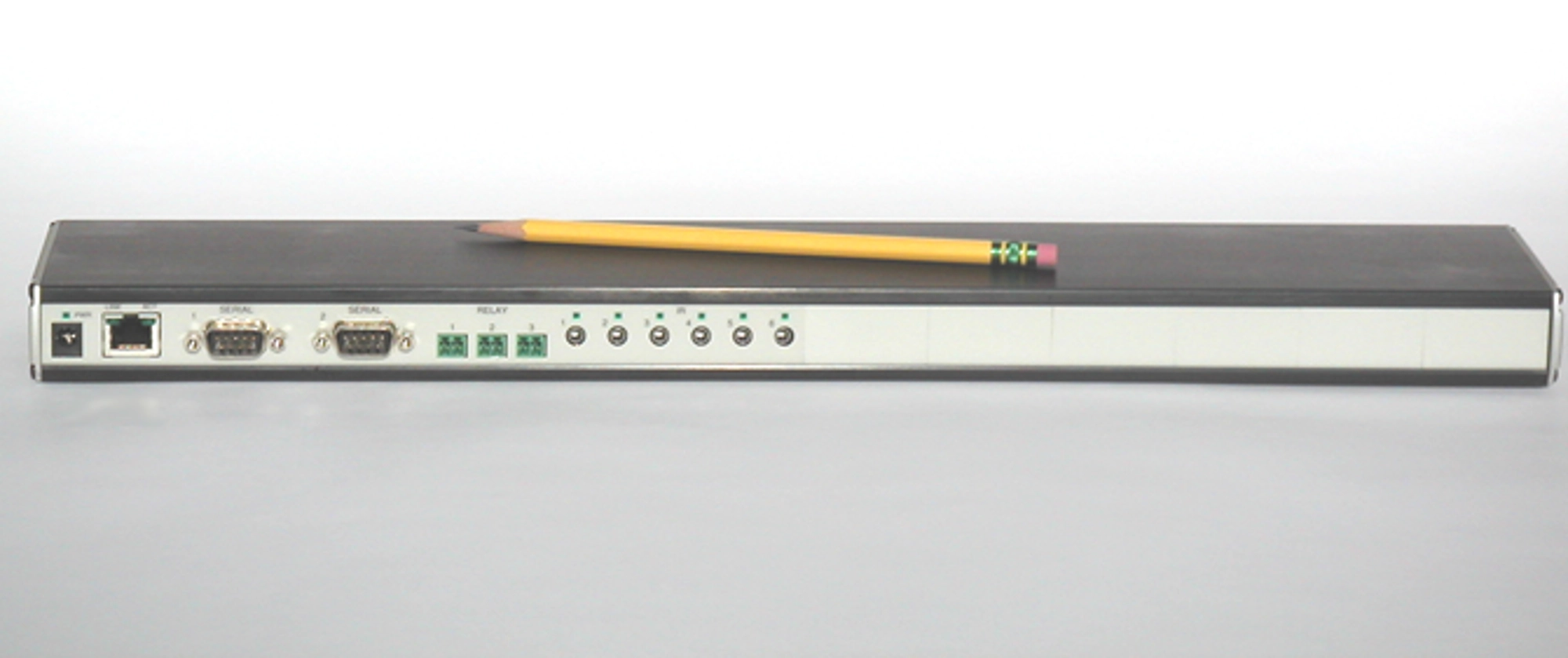

Product Code: GC-100-18 The Global Cache GC-100-18 Home Network Adapter connects diverse and previously unconnected devices and appliances in a network-based home. Using many commonly needed controls and sensor inputs in one box, the GC-100 provides an easy way for controlling real-world devices, reducing the time and complexity of an installation by eliminating piggybacked components and multiple power supplies. The GC-100-18 has 2 Serial/RS232 ports and 6 IR ports and 3 Contact Closure/Relay ports. 2 Serial/RS232 Ports 6 IR Ports (6 IR Emitters included) 3 Contact Closure/Relay Ports 18” in size

Product Code: GC-100-06 The Global Cache GC-100-06 Home Network Adapter connects diverse and previously unconnected devices and appliances in a network-based home. Using many commonly needed controls and sensor inputs in one box, the GC-100 provides an easy way for controlling real-world devices, reducing the time and complexity of an installation by eliminating piggybacked components and multiple power supplies. The GC-100-06 has 1 Serial/RS232 port and 6 IR ports. 1 Serial/RS232 Port 6 IR Ports (6 IR Emitters included) 6” in size ​ Tariff Code: 8471.41.0150

.

Power InputNetwork InterfaceRelay Interface•9 to 18V DC@300mA (wall power adapter included)•International 220V available•Connector: RJ45•Protocol: 10 Base-T Ethernet•Standards: TCP, DHCP, HTTP•Connector: screw terminal plug, 24V AC/[email protected], N.O. contact with transient voltage suppression•Capability: contact closuresLED indicatorsSerial InterfaceSoftware•Power•Network activity•Link status•IR transmission•Sensor input state•GC-100 visual ID•Connector: Male DB9•Data Rates: 1200 baud to 57.6 Kbaud•Parity: odd, even, none•Flow control: bi-directional hardware RTS/CTS•IR input: utilizing a GC-IRE and GCRG1,IR commands are received via RS232 port.•Product:GC-IRL Learner UtilityDiscovery & Setup Utility•Development and TestingGC-100 Test UtilityGC-CCF Conversion UtilityGC-Scan Test UtililtyIR Test UtilitySetupIR & Sensor InterfaceCertifications•Integrated web server for easy configuration•Configure through TCP/IP set up commands•Connector: 3.5mm stereo jack•Selectable IR outputs or sensor inputs per port•IR input: IR commands received via RS232 port utilizing GC-IRE and GC-RG1•IR emitter supplied for each IR port•GC-BL2 IR Blaster support•FCC (Part 15, Class B), C-tick, CE•RoHs compliantDiscovery & Setup UtilityWarranty•Included Windows-based software simplifies GC-100 network discovery of units and setup•AMX beacon support•One year limited warranty•Support available through phone and email, as well as extensive online library
