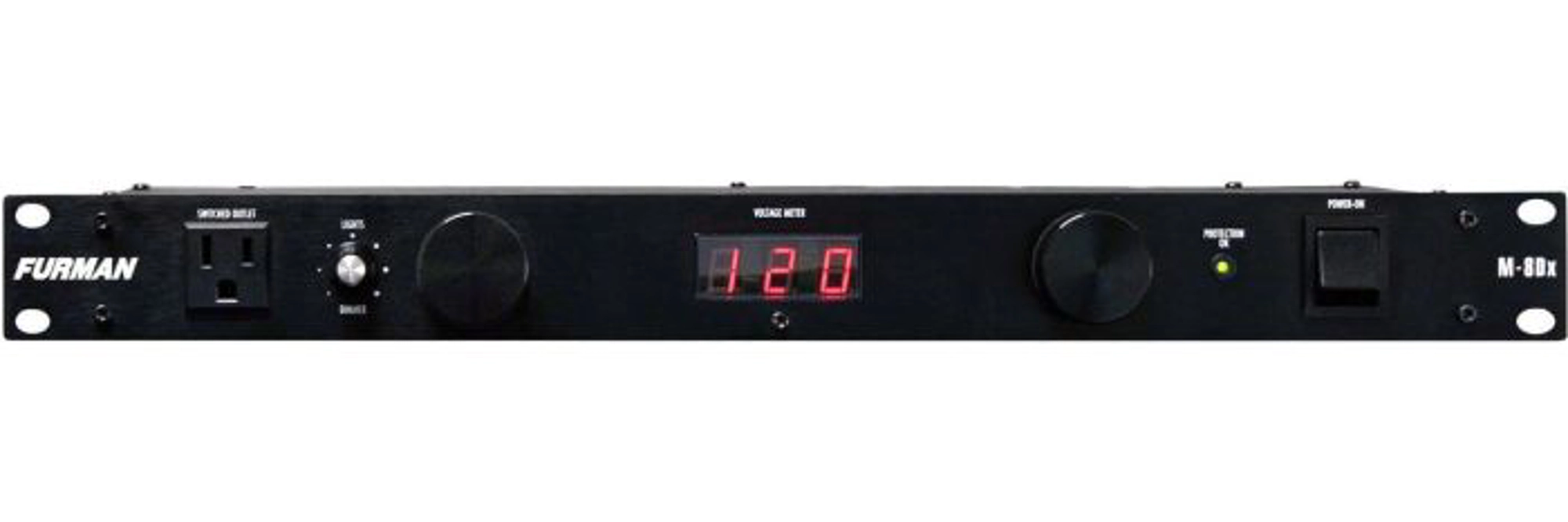

Merit Series Power Conditioner with Pull-out Lights and Digital Voltmeter

M-8Dx

The M-8Dx is the premium power conditioner in the Merit Series, offering a complete power management solution. It includes all the features of the M-8Lx: nine outlets, a 15-amp rating, standard surge protection, noise filtration, and two dimmable, pull-out light fixtures. What sets the M-8Dx apart is the addition of a bright red, three-digit LED voltmeter that displays incoming voltage. This feature allows you to monitor the AC power from your wall outlet, which is especially useful in bars, clubs, and other venues where power can be unreliable.

Install an M-8Dx into the top slot of your rack, and the eight switched outlets in the rear panel will power up and protect all your equipment up to a 15-amp load. Illuminate your rack with two retractable, front panel lights. Monitor voltage with the digital meter display.

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner… You’re going to plug that into the wall? One big spike and your rig is up in smoke. Standard level surge/spike protection from Furman defends your gear from the spikes and surges that are so common at gigs and practice spots. With standard level RFI/EMI filtration from Furman, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp. Plus, dual pull-out lamps let you see your rack without turning the house lights on, while the digital voltmeter lets you monitor incoming voltage.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With standard level RFI/EMI filtration from Furman, you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Standard level surge and spike protection from Furman keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. You can even monitor voltage changes, as the digital meter allows you to keep an eye on the incoming line voltage. With a 15A capacity and nine total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs, and other event venues have some of the worst power out there—from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Standard level protection and filtration from Furman keep the bad stuff out. The dual pull-out front panel lights also let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes its toll—that’s why it’s smart to plug into standard level protection and RFI/EMI filtration from Furman. It keeps your equipment safe and sounding clean, while the digital voltmeter lets you monitor incoming voltage. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

• Number of Outlets 9
• Number of Isolated Banks 0
• Outlet Descriptions All 9 outlets filtered and surge protected
• Rack Mountable Yes
• Rack Ears Included Yes
• Front Panel Meter(s) Digital Voltmeter
• Front Media Light(s) Two 120V incandescent bulbs, 4 watts each
• Dimensions 19″ W x 7.5″ D x 1.75″ H
• Weight 6 lbs

Noise Filtration

AC noise filtering to reduce radio frequency and electromagnetic interference (RFI/EMI)

Surge Protection

Spike & surge protection ensures equipment stays safe and your power stays clean

9 Total Outlets

8 rear panel outlets and 1 front panel convenience outlet

Digital Voltmeter

Digital voltmeter display incoming line voltage

15 Amp Rating

15 amp rating, with circuit breaker

“Protection OK” Indicator

Front panel indicator LED lets you know that your equipment is being protected

Wall Wart Spacing Indicator

Rear outlets have been spaced to accomodate even the bulkiest of wall warts and adapters

Front Panel Pull-out Lights

Two retractable incandescent light fixtures with dimmer control for convenient rack illumination
