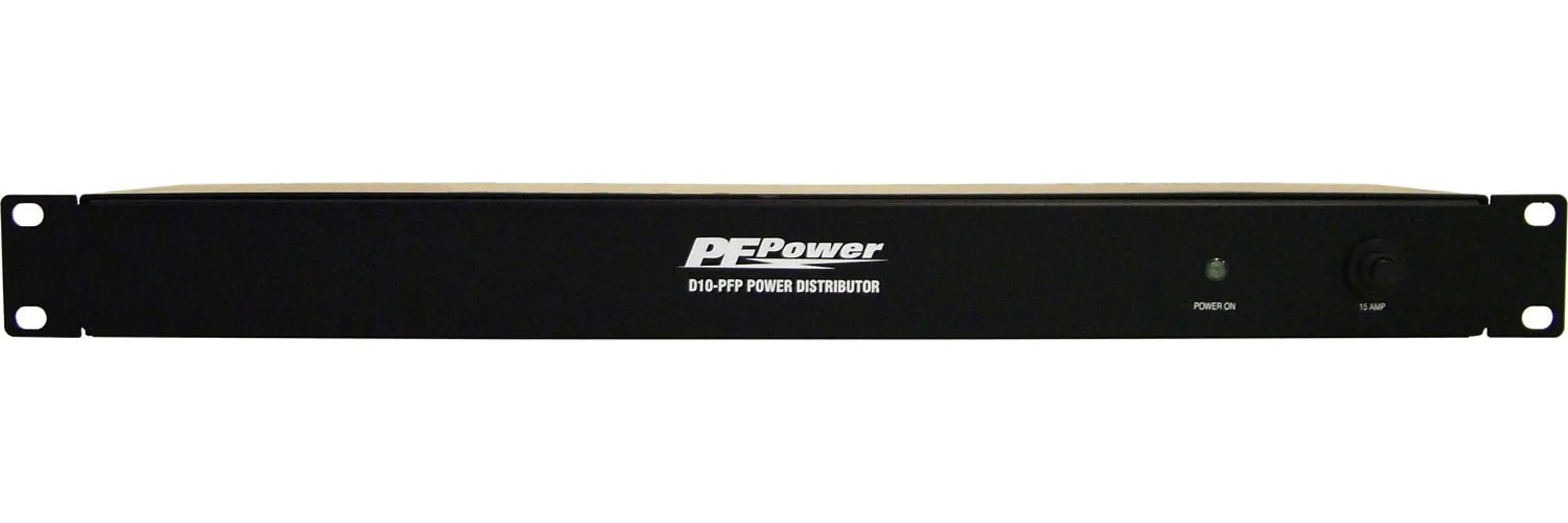

Panamax D10-PFP

10-Outlet Distribution Rack Strip 1U

D10-PFP

Rack-mountable power distributor featuring 10 rear panel outlets with circuit breaker. Please note that the D10-PFP does not offer surge protection or conditioning functions.

The D10-PFP is a sturdy, rack-mountable power distributor. Featuring 10 rear panel outlets with circuit breaker, it offers a convenient way to power a rack full of equipment up to a 15 amp load. The sturdy, all steel construction and heavy-duty 6 foot (14 AWG) three conductor cord provide ultimate durability and longevity. Note that the D10-PFP is a power distributor only, and offers no surge protection or conditioning functions, making it an ideal extension to an existing branch circuit.

• Weight: 5 lbs. (2.3kg)
• Safety Agency Listing: cULus
• Power Consumption: 0 Watts
• Operating Voltage: 90 to 140 VAC
• Maximum Output Current: 15 AMps (1800 Watts at 120VAC)
• Line Cord: 6 FT. Captive, 14 AWG, with Three Conductor Edison Plug
• Construction: Steel chassis, black painted

• 10 Rear Panel Outlets For Your Equipment
• Sturdy One Rack Space Design
• Heavy Duty 6 Foot, 14 AWG Cord
• Circuit-breaker Protected
• Rated 15 Amps
• All Steel Construction

• Cutsheet
