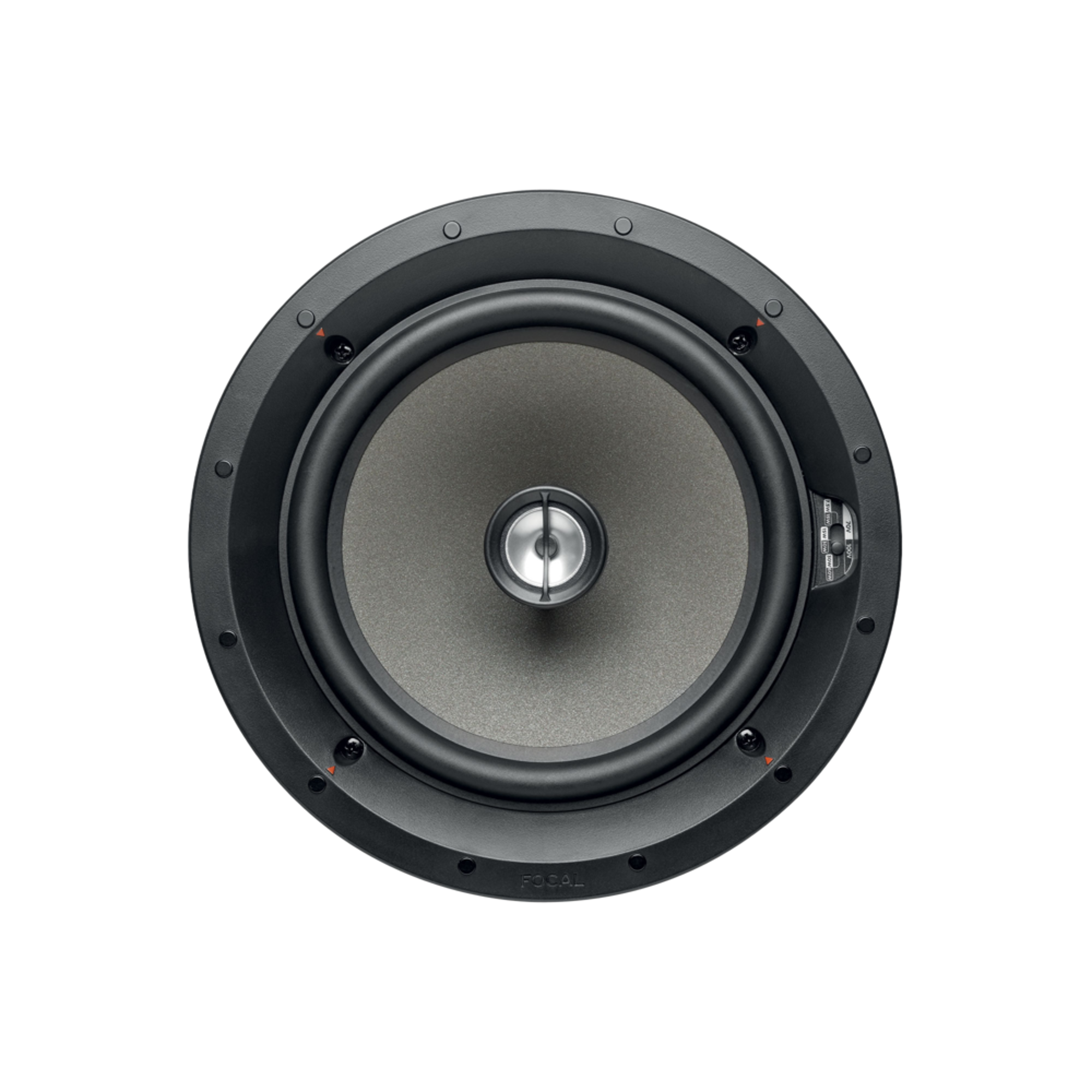

Focal 100 ICW8-T

8" 70V In-Ceiling Speaker

100 ICW8-T

100 ICW8-T is a wall and ceiling loudspeaker designed for large public spaces (hotels, restaurants, shops...). Its 21 cm driver features Polyglass technology for a natural, rich sound, and its low directivity eliminates the "shower effect" of sound for a homogeneous musicality in the space. Like all products in the 100-T Series line, it incorporates an adjustable transformer to adapt its power to 70/100 volt installations.

VAST SPACES

An adjustable transformer adapts the loudspeaker's power output, allowing it to be daisy-chained to other loudspeakers in an installation. Clarity and vocal intelligibility are guaranteed in large listening spaces, while minimizing the number of amplification channels.

FOCAL KNOW-HOW

The Polyglass diaphragm of the 21 cm loudspeaker delivers a natural, uncolored midrange and rich bass. It is combined with an aluminum inverted dome tweeter for silky treble and optimum sound dispersion.

COMPACT AND DISCREET

Compactness and shallow integration depth are the hallmarks of these In-ceiling loudspeakers. Discreet and easy to install, they come with optimized grip mounting brackets and ready-to-paint round or square grilles.

• Product type : Wall / Ceiling - 2 Coxial channels for installation on line 70V / 100V
• Membrane :
• Polyglass
• Medium : 8" (21cm) Polyglass Midbass
• Response at - 6dB (Low frequency point) : 40 Hz
• Frequency response (+/- 3dB) :
• 53 Hz - 23 kHz
• Sensitivity : 90 dB
• Depth : 111 mm / 4.37 in
• Minimum allowable ceiling thickness : 8 mm / 0.3125 in
• Maximum allowable ceiling thickness : 40 mm / 1.56 in
• Cut-Out diameter : 224 mm / 8.81 in
• Depth behind surface (Mounting depth) : 4.25 in / 4.25 in
• Cut Out template : Yes
• Grilles : Ready-to-paint grille
• Sling : Yes

• Product designed and developed in France by Focal
• Compact product with shallow mounting depth
• 100V/70V mode by switch
• Ready-to-paint grille

• Cutsheet
