Focal 100 ICLCR5

5" In-Ceiling LCR Speaker

100 ICLCR5

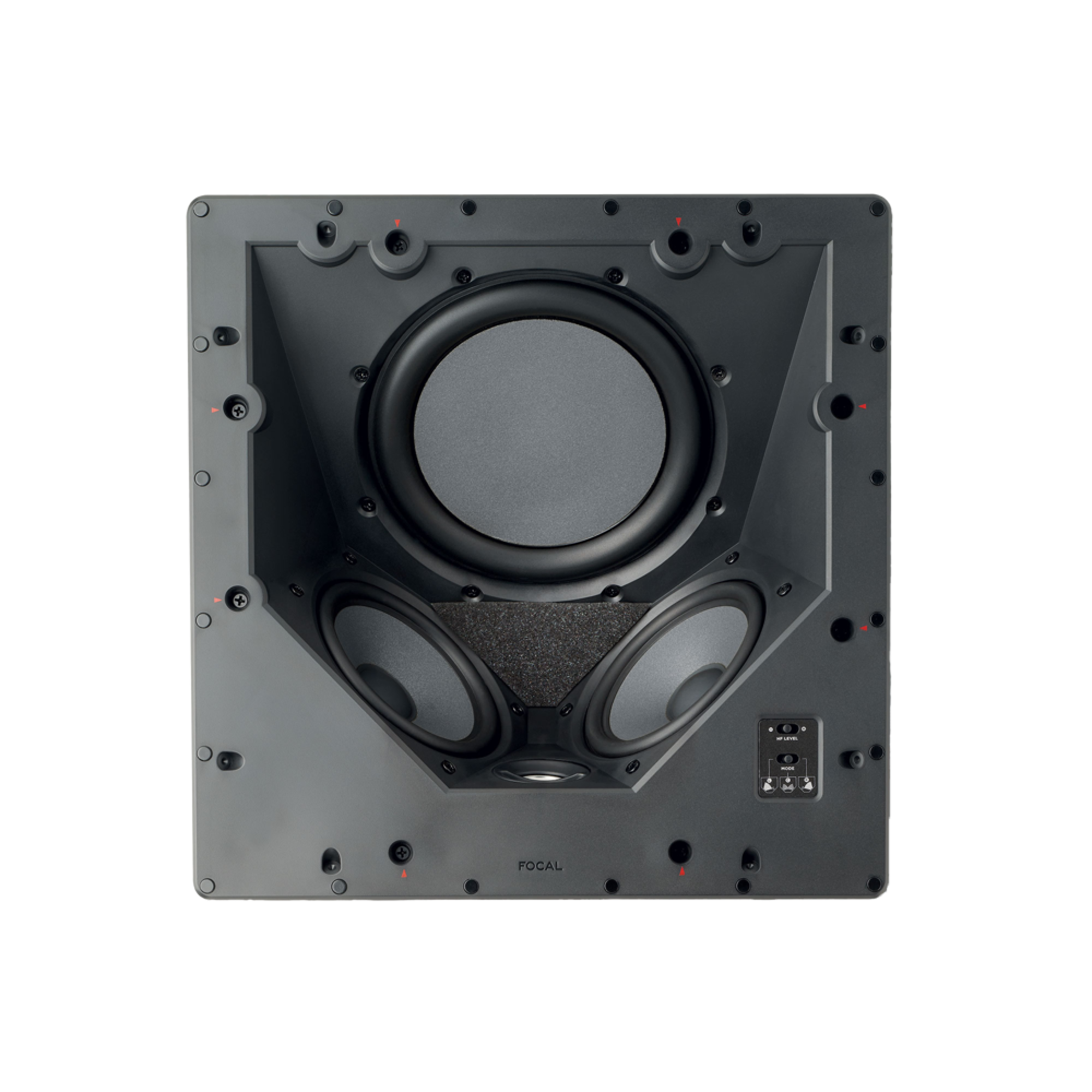

100 ICLCR5 is a compact, high-performance in-ceiling speaker. Combined with conventional or wall-mounted speakers, it is the perfect complement to a home theater installation (dedicated room, living room...). It is also ideal for large rooms with no rear wall to the listening point.

CUSTOM INSTALLATION

To complete your hi-fi or Home Cinema installation, the loudspeaker has five possible in-ceiling applications: front left, center or right channels - rear left and right channels.

SOUND BALANCE

Thanks to its adjustable tweeter (20°) and two 13 cm Polyglass cone drivers, the loudspeaker delivers smooth, precise treble and defined midrange. A left, center and right selector ensures the same sound regardless of the listening position.

SOUND ADJUSTMENT

Treble levels can be adjusted in three positions (-3 dB, 0 dB and +3 dB), allowing you to optimize the loudspeaker's performance according to the room's acoustics. In addition, three-position correctors (left, center or right) adapt the loudspeaker's directionality curve to deliver the same sound everywhere.

• Product type : 2-way ceiling
• Membrane :
• Polyglass
• Medium : 2x5" (13cm) Polyglass Midbass
• Response at - 6dB (Low frequency point) : 55 Hz
• Frequency response (+/- 3dB) :
• 65 Hz - 23 kHz
• Minimum impedance : 4.6 Ω
• Nominal Impedance : 8 Ω
• Recommended amplifier power : 25 - 120 W
• Sensitivity : 92 dB
• Height : 354 mm / 13.94 in
• Width : 354 mm / 13.94 in
• Depth : 150 mm / 5.83 in
• Weight : 5.3 kg /
• Minimum allowable ceiling thickness : 8 mm / 0.3125 in
• Maximum allowable ceiling thickness : 60 mm / 2.37 in
• Mounting height : 328 mm / 12.4 in
• Mounting width : 328 mm / 12.94 in
• Depth behind surface (Mounting depth) : 6 in / 6 in
• Black and white felt : Black and white felt ready to stick
• Cut Out template : Yes
• Grilles : Supplied with a magnetic grille and ready to paint to ensure perfect integration

• A Home Cinema system totally integrated into the ceiling for total discretion.
• A loudspeaker with five uses (front left, centre or right channels; rear left and rear right channels)
• The best performance in terms of use (left, right or right channel selector and adjustable tweeter level)
• Product designed and developed in France by Focal
• Very balanced mid-range for improved intelligibility for Home Cinema set-ups
• Supplied with a magnetic grille and ready to paint to ensure perfect integration

• Cutsheet
