Product overview: Fluke 1AC II Non-Contact Voltage Tester
The pocket-sized voltage detector
The portable 1AC II non-contact voltage tester from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there's voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home and even detect miswires of an electrical outlet.
The tip glows red and a beeper sounds when voltage is detected
A loud, easy to hear beeper will sound and the tip will glow red when voltage is detected
Optionally, the beeper can be disabled for use in quiet environments
Continuous self-test so you always know it’s working
When the tip blinks red you know it’s working properly
Provides a continual visual indication that the 1AC II is on
90 V to 1000 V AC or 200 V to 1000 V AC voltage detection range for wide application use
Wide voltage detection range allows for use in a broad range of applications
Also available in a low voltage model from 20 V to 90 V AC for controls circuits
Safety features
Rated to CAT IV 1000 V for added protection
CE and CSA approved
Additional tool features
Audible/Silent mode for added convenience in quiet environments
On/Off button
Batteries included
2 year warranty

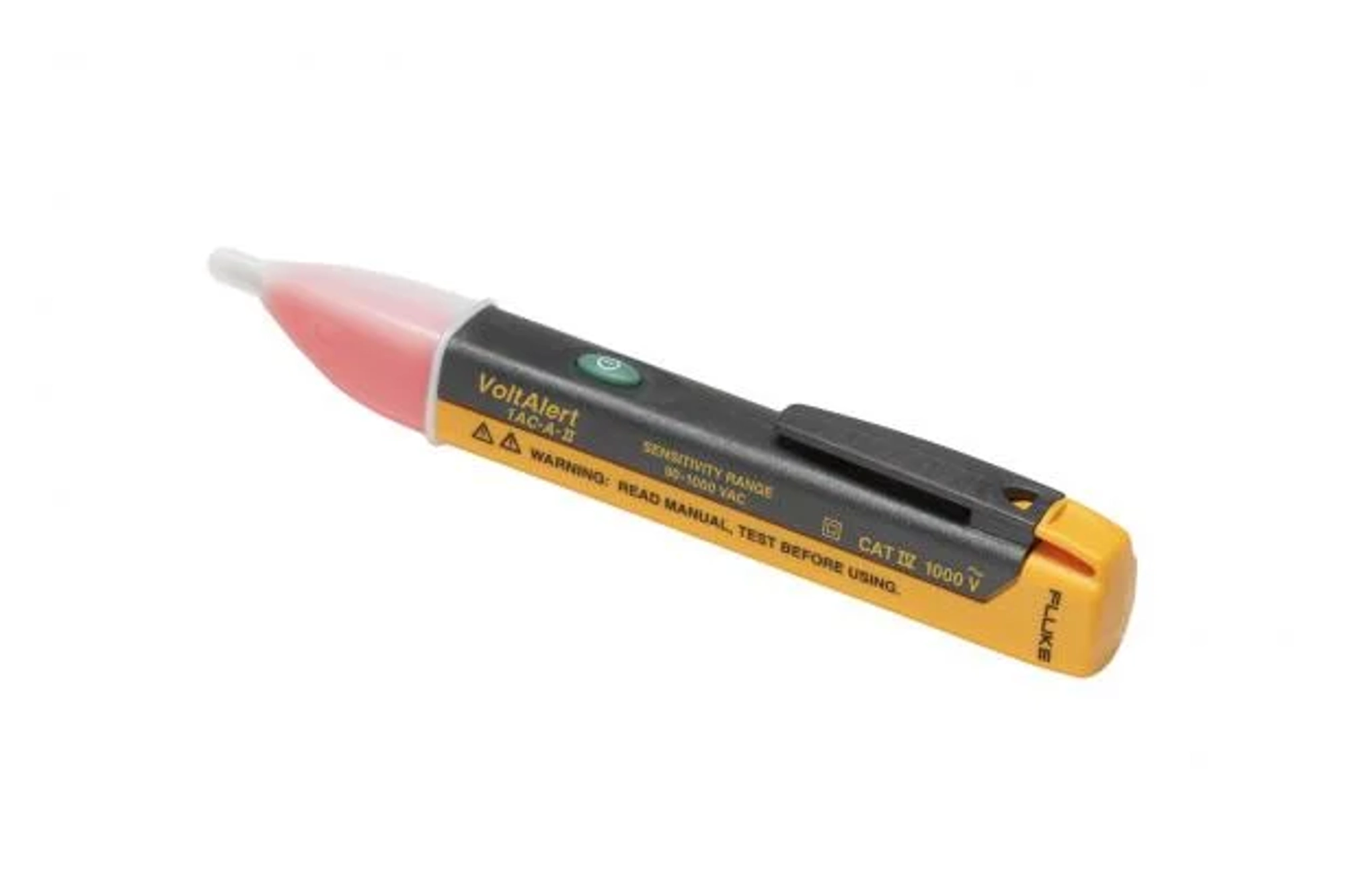

Models: Fluke 1AC II Non-Contact Voltage Tester
Fluke-1AC-A1-II
Fluke-1AC-A1-II Non-Contact Voltage Tester
Part#: 2432932
UPC#: 0 95969 29078 4
Specifications
Operating Principles Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.
Voltage sensing ranges Nominally, 90 V AC to 1000 V AC
Detector tip style Flat-tip
Light source One high intensity red LED
Agency Approvals
Safety IEC 61010-1: Pollution Degree 2, IEC 61010-2-030: CAT IV 1000 V
EMC IEC 61326-1: Portable
IP Rating IP 40
Operating Temperature -10°C to 50°C (-14°F to 122°F)
Operating Humidity Ranges 0% to 95% (0°C to 30°C)
0% to 75% (30°C to 40°C)
0% to 45% (40 to 55°C)
Operating Altitude 3000 m
Cleaning Clean with damp cloth
Batteries 2 AAA alkaline batteries included
Battery Life Typical battery life of greater than 1 year
Warranty Period Two years
Brand:
Fluke
Be aware of voltage easily - the tip glows red and a beeper sounds when voltage is detected
Continuous self-test so you always know it’s working
Voltage detection range for wide application use - 90 V to 1000 V AC or 200 V to 1000 V AC
Audible/Silent mode for added convenience
