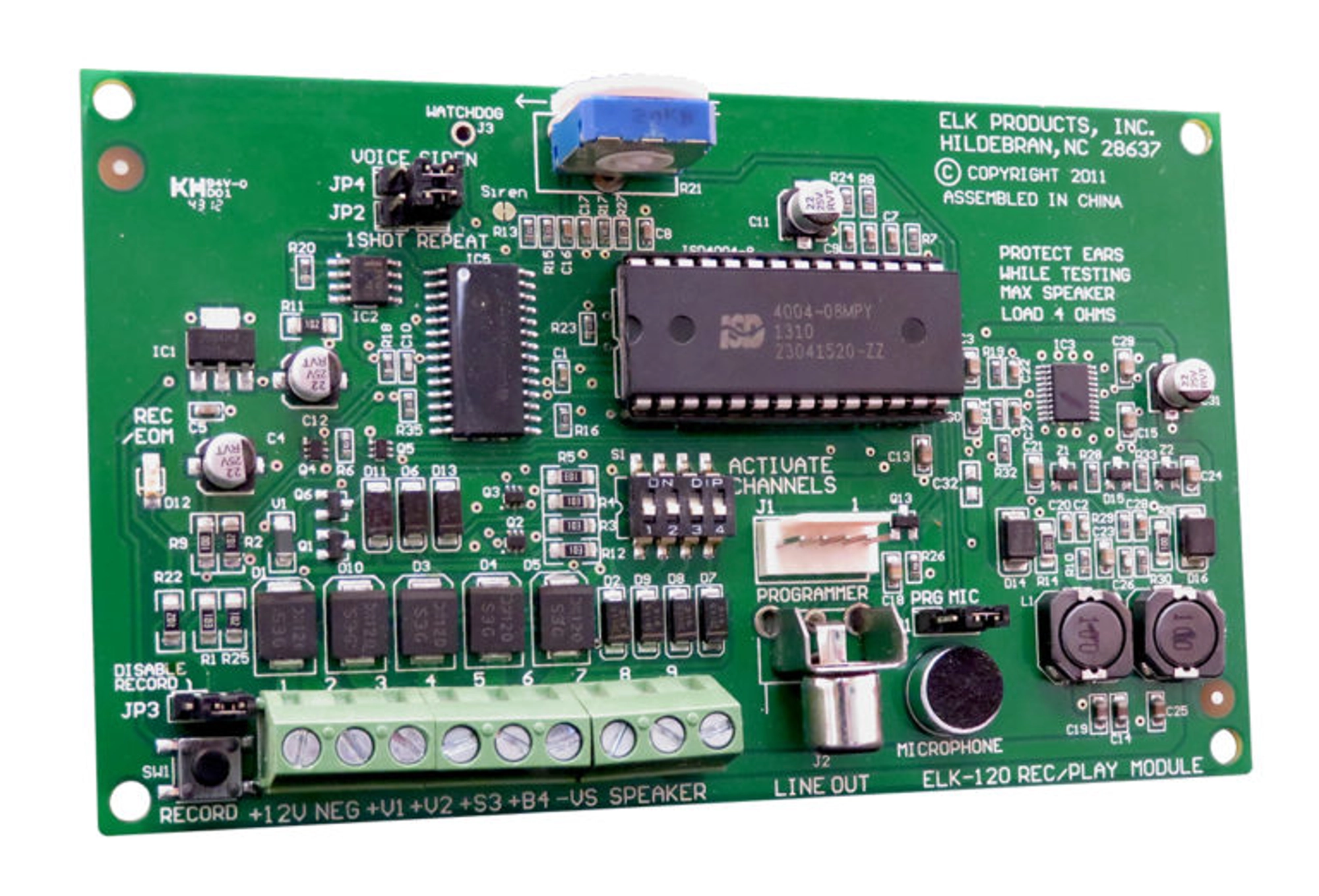

The ELK-120 v.3 features 4 channels that can be configured as 2 channels of siren and 2 channels of voice, or all 4 channels can be used for voice. Either way the voice channels are fully recordable and are stored in non-volatile re-programmable memory. Total time of recording is 8 minutes. The Siren channels offer a choice of: Classic Yelp Sound, Temporal Coded Horn, or Pulsing Industrial Horn.
The siren sounds can be triggered in sequence with the voice channels. The channels can be configured to play once or to repeat endlessly. Two channels support our unique ComboTrigger™ feature, especially designed for controls that have a single alarm output with a pulsing option for fire or burglary. When pulsed, the Temporal Coded Horn fire signal is sounded. The optional ELK-129 Computer Interface may be used to download .WAV sounds from a PC to the ELK-120. Also available is the ELK-124 offering eight recordable voice channels of 1 minute each.
Operating Voltage: 11 to 14 Volts DC
Current Draw: .2 to 2 Amps, (depends on volume setting & speaker load)
Sound Level: 120 db @ 1 meter, 14 vdc, with one 8 ohm speaker
Max. Speaker Loading: 4 Ohms
Max. Message Length: 2 min. per channel in voice mode or 4 min. per 2 channels in siren mode
Pulsing Input: 1/2 to 2 Second Pulse, 50% duty cycle
Size: 3" x 5" x 1.25" (76 x 127 x 32mm)
Brand:
ELK Products
Four Channels Configurable as: Two Siren and Two Recordable Voice OR Four Recordable Voice
Maximum record time is 8 minutes divided between the number of voice channels
Siren Sounds: Classic Yelp Siren, Temporal Coded Horn, and Pulsing Industrial Horn
Temporal Coded Horn meets ANSI standard for Audible Emergency Evacuation Signaling
Recordings stored in non-volatile memory
Voice channels accept momentary triggers
"One Shot" or Continuous voice playback settings
Option to trigger +V1 and or +S3 channels from a steady or pulsing input (ComboTrigger™)
Built-in condenser microphone for recording
Adjustable speaker volume and current draw
Powerful 24 watt audio amplifier for Speakers
Line Level Output Jack for Paging Systems and Amplifiers
PC sound card interface connector
Lifetime Limited Warranty
