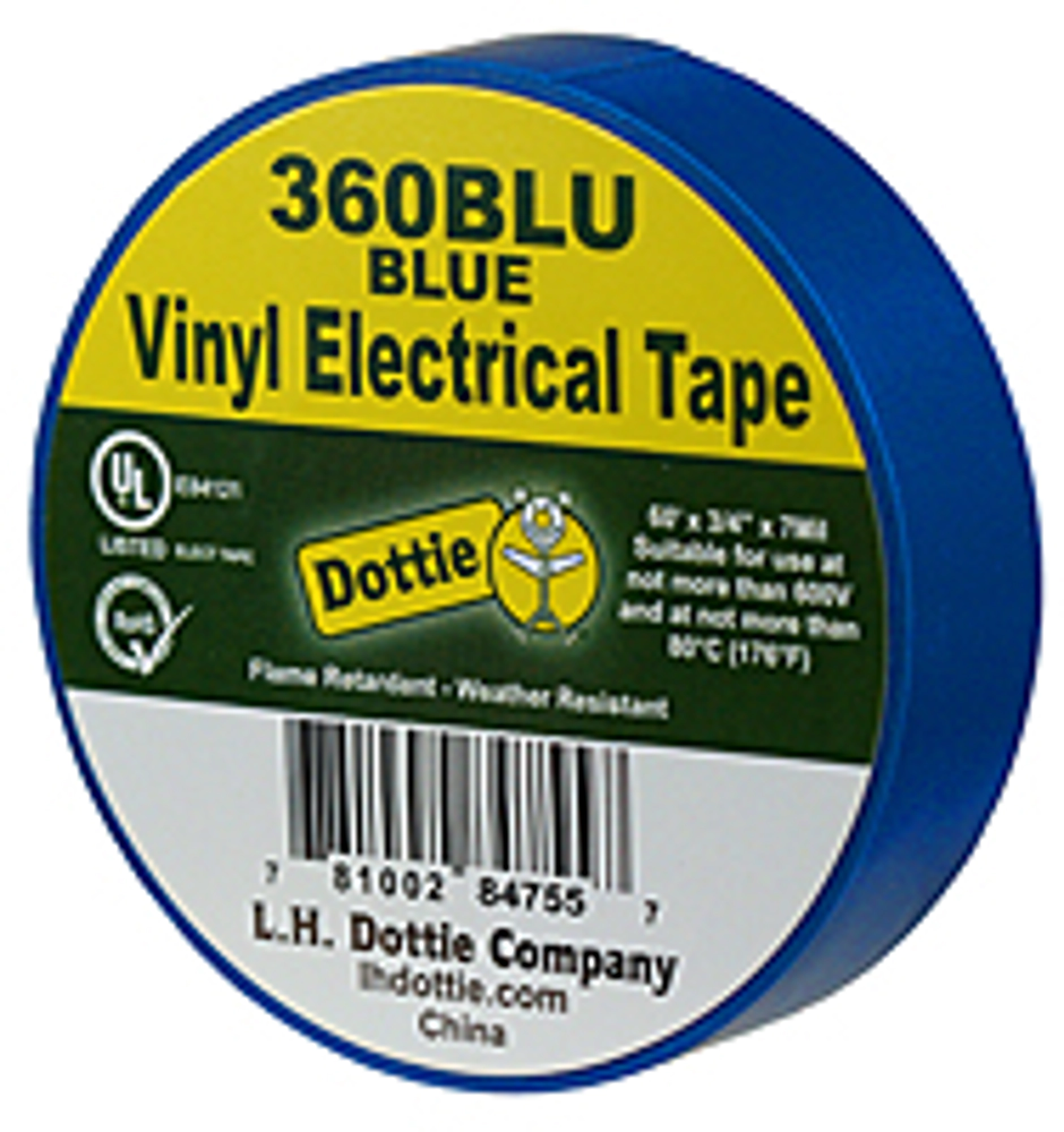

Electrical Tape has a wide variety of applications, but is mainly used for protection and insulation over wires and connectors, splicing and filler compounds, wire harnessing and home maintenance, and the holding of high voltage electrical appliances.
x
Physical Characteristics
Type
Color Coding Tape
Size
3/4'' x 60'
Length (ft)
60'
Width (in)
3/4''
Thickness (in)
.007''
Thickness (mil)
7 mil
Material
Polyvinyl Chloride
Backing Material
Vinyl
Color
Blue
Packaging Details
Standard Qty
10
Master Qty
200
Price Per
1
Package Length
3.1
Package Width
3
Package Height
7.8
Package Weight
1.98
Performance Data
Tensile Strength
7 KG/in
Tensile Strength (Ncm)
27.5 N/cm
Elongation
2
Applications
Marking, Identifying, Insulating, Wire Harnessing, Jacketing on High Voltage Splices
Temperature Range
32°F to 176°F
Dielectric Strength
1200 V/mil
Voltage Rating (V)
600V
Resistant to
UV, Acids, Abrasion & Corrosion
Adhesion to Steel
16 oz/in
Adhesion to Backing
16 oz/in
For Use With
Wires, Connectors, Filler Compounds, & Electrical Appliances
UV Resistance
Yes
Special Features
Flame-Retardant, Strong Tensile Strength, Performs Well in All Climates, Individual Cello Wrapped
