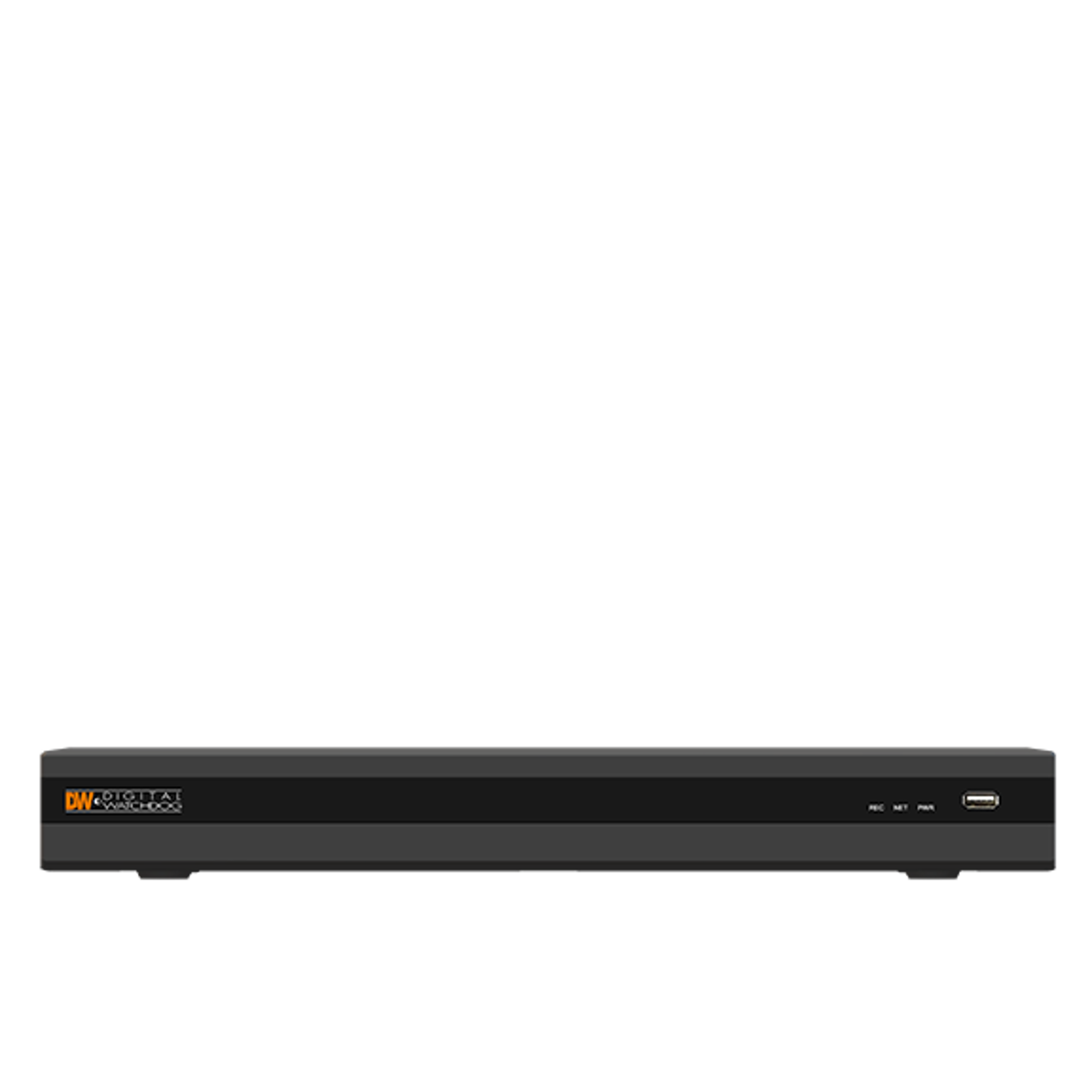

Digital Watchdog DW-VG4128P

VMAX IP G4 8-Channel PoE NVR with 4 Bonus Channels

DW-VG4128P

4K Recording Resolution

DW's recorders deliver crystal clear images in any resolution. Higher resolution offers forensic details with zooming into the camera's field of view.

PathFinder™

Easy and secure remote connection with NAT Traversal (STUN/TURN) support without opening ports.

CCIP™ System Encryption

The CCIP™ (Closed Circuit IP) encryption is activated when the VMAX IP G4™ system sends a request for an encrypted stream from the camera. The camera then encrypts its RTSP stream a second time using TLS, using the encryption's user ID and password. The result is a secured and encrypted RTSP stream that can be read only by the requesting recorder.

CCIP™ System Encryption

The CCIP™ (Closed Circuit IP) encryption is activated when the VMAX IP G4™ system sends a request for an encrypted stream from the camera. The camera then encrypts its RTSP stream a second time using TLS, using the encryption's user ID and password. The result is a secured and encrypted RTSP stream that can be read only by the requesting recorder.

DW Witness™ App

The DW Witness™ app for iOS® and Android® instantly turns your smartphone or tablet into a video surveillance camera. Press the button on the app and start transmitting live video to your VMAX IP G4™ NVR. Its a black box for personnel on patrol.

Push notifications via DW Mobile Plus App

DWs recorders can send an event notification to your mobile device via the DW Mobile Plus app.

Real-Time Streaming Protocol (RTSP)

RTSP provides a live video stream for live streaming applications between DW VMAX® G4 recorders and third-party software applications. RTSP streams offer a secondary backup location for recorded video and smart home integration, an alternative for ONVIF integration and a way to broadcast a stream to live streaming services, such as CCTV live monitoring in animal sanctuaries and public cameras.

Status Monitoring

A real-time graphical representation of all system connections. Receive connection alerts via email or text.

• Complete installation, setup and camera configuration in minutes!
• CCIP™ system encryption via TLS protects your surveillance system from out of network attacks
• Record and manage single-sensor IP cameras at real-time 30fps up to 4K (38402160), with 80Mbps maximum throughput
• Local power for up to 8 IP cameras via resident PoE+ switch
• DW Witness™ turns a smartphone or tablet into a surveillance camera
• PathFinder™ easy end-to-end remote connection with NAT Traversal (STUN/TURN) support
• Automatic device discovery
• Compatible with ONVIF cameras
• 0-32TB storage options
• Transfer real-time data using Real Time Streaming Protocol (RTSP)
• Snapshot Notify™: Interval camera image verification sent to an email
• Remote management with C3™ CMS for Windows^® and Mac^®®
• Event camera group recording
• System analysis with real-time system, PoE and network status monitoring
• Event notifications via email, text and C3™ CMS and push notifications to mobile devices
• Mobile Application for iOS^® and Android^® devices
• Dual-stream recording
• Easy drag and drop camera management
• Instant backup during playback
• True HD and VGA simultaneous output support
• Compatible with DW^® Spot™ Monitoring module for Public View Monitors
• 4 sensor inputs, 1 relay output
• Advanced H.265/H.264 Linux embedded NVR
• NVR calculation and auto-recording configuration
• Screen saver to protect monitor screen
• Import/export configuration between multiple NVRs
• Auto or manual firmware upgrade available
• NDAA/TAA compliant
• 5 year limited warranty
