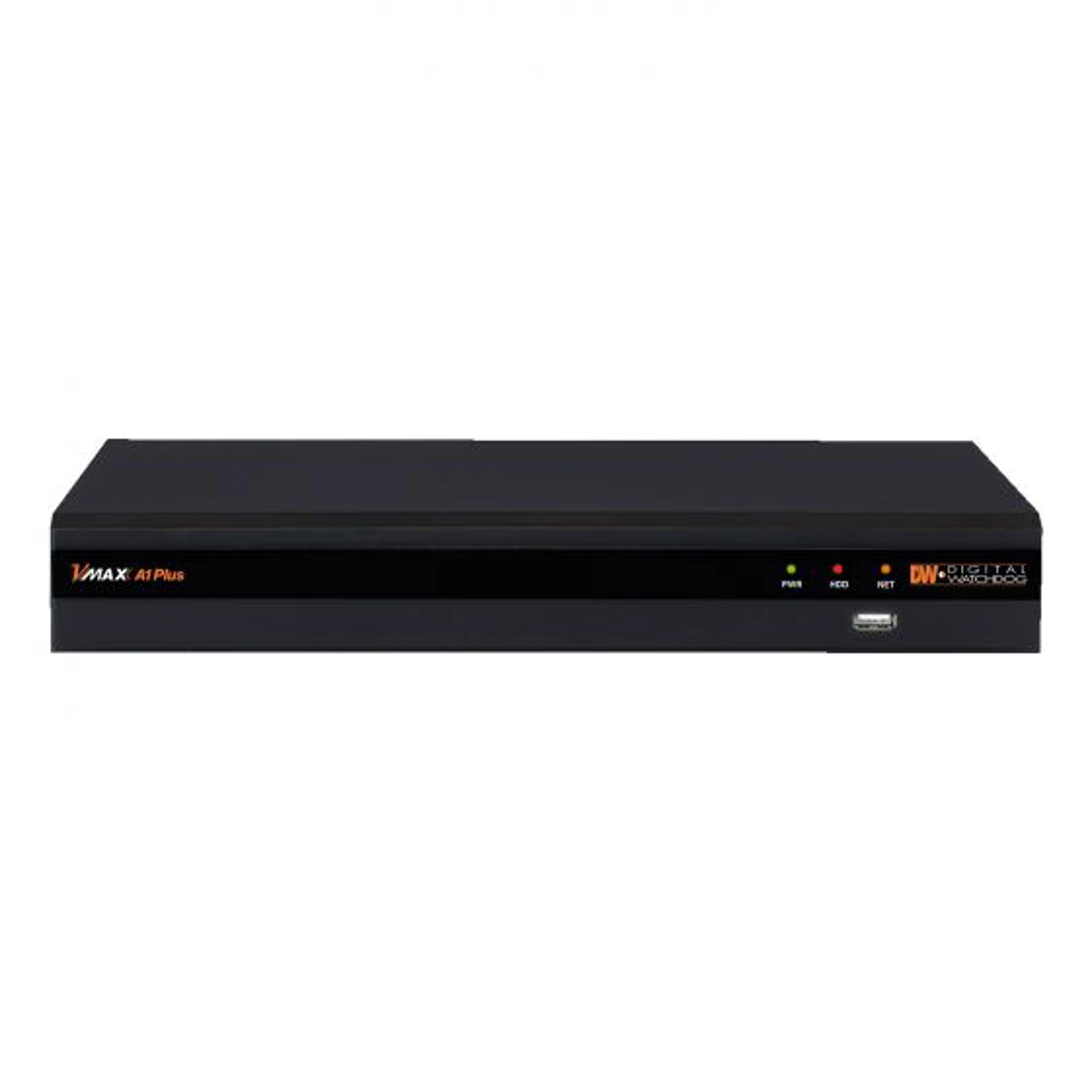

Digital Watchdog DW-VA1P44T

VMAX A1 Plus Universal HD over Coax 4-Channel Digital Video Recorder 4TB HDD Included

DW-VA1P44T

The VMAX A1 Plus DVRs support HD-Analog and HD-TVI signals up to 5MP and CVBS up to 960H. The DVRs offer a seamless upgrade to HD resolution for new ROI from existing coaxial infrastructure. The VMAX® A1 Plus can record 1080p video at real-time 30fps. Up the Coax (UTC) remote configuration is available with all compatible cameras.

Features

• Universal HD over Coax® DVR records HD-Analog and HD-TVI and all analog up to 960H signals
• Advanced H.264 Linux® embedded DVR
• 4-channels, real time 30fps recording up to 1080p
• Up to 5MP recording resolution at a total 40fps
• PathFinder™ auto port forwarding
• C3™ CMS and event server software up to 144 channels
• Event camera group recording
• Complete system analysis with real-time system and network status monitoring
• Mobile Application for iPhone®, iPad®, iPod®, Android® Smart Phones and Tablets and Apple TV®
• Mac® compatible remote ACS software
• OSD and PTZ control via coax (UTC)
• Signal hybrid detects any camera at any output automatically
• Instant channel swap, no need to disconnect or reboot the DVR
• Snapshot Notify™: camera notifications sent to an e-mail or CMS
• 4K (3840 x 2160) True HD, VGA and Spot video outputs
• HDD calculation and auto recording configuration
• Thumbnail search with hour and 5-minute previews
• 10 second jump buttons for playback and fast forward
• Event notifications via e-mail, text and C3™ CMS and push notifications to mobile devices
• Multiplex - live, playback, recording, backup, network, configuration
• 4 audio input, 1 audio output
• 4 sensor input, 1 relay output
• Digital spot monitoring output at D1 resolution
• Simple and free DDNS service
• Push notifications via DW® Mobile™
• Easy web-based client with multi-user access
• Help menu on major functions
• Auto and manual firmware upgrades

SKUDW-VA1P44T ManufacturerDigital Watchdog Number Of Channels4 Channel Video Output ConnectionBNC, VGA Recording FPS (Per Channel)10 FPS @ 2560 X 1944 Compression MethodH.264 Computer ConnectivityMAC OSX, Windows PC Mobile PlatformAndroid, Ipad, Iphone, Smart Phone Mobile connectivityMobile Apps External BackupNetwork, USB Harddrive Size4TB Alarm In/Out4/1 FeaturesAudio, Covert Channel, Digital Zoom, Dual Streaming, Email Notifications, Free DDNS, Multi-Zone Video Motion Detection, Network Time Protocol, PTZ Support, USB Mouse & IR Remote Control Included Audio Input (RCA)1 audio output NetworkEthernet (1 x gigabit) Power Failure RecoveryPre recording: 0~ 5sec, Post recording: 0~5min Video Input / Loop Output4 Channels Video Inputs4 Channels PTZ SupportYes Digital ZoomYes Audio Recording CapabilityYes Dual StreamingYes Covert ChannelYes Email NotificationsYes Free DDNSYes Multi-Zone Video Motion DetectionYes Network Time ProtocolYes

• Universal HD over Coax® DVR records HD-Analog and HD-TVI and all analog up to 960H signals
• Advanced H.264 Linux® embedded DVR
• 4-channels, real-time 30fps recording up to 5MP
• Up to 5MP recording resolution at 40fps
• PathFinder™ Peer-to-Peer (P2P) remote connection
• C3™ CMS and event server software up to 288Channels
• Event camera group recording
• Complete system analysis with real-time system and network status monitoring
• Mobile Application for iPhone®, iPad®, iPod®, Android® Smart Phones and Tablets and Apple TV®
• Mac® compatible remote ACS software
• OSD and PTZ control via coax (UTC)
• Signal hybrid detects any camera at HD-Analog, HD-TVI and 960H automatically.
• Instant channel swap, no need to disconnect or reboot the DVR.
• Snapshot Notify™: programmable interval snapshot notifications
• 4K (3840 x 2160) True HD, VGA and Spot video outputs
• 0TB - 16TB storage options
• HDD calculation and auto-recording configuration
• Thumbnail search with hour and 5-minute previews
• 10-second jump buttons for playback and fast forward
• Event notifications via email and C3™ CMS and push notifications to mobile devices
• Multiplex - live, playback, recording, backup, network, configuration
• 4 audio input, 1 audio output
• 4 sensor input, 1 relay output
• Digital spot monitoring output at D1 resolution
• Simple and free DDNS service
• Push notifications via DW® VMAX® Plus™ app
• Add public view monitors with Spot Monitoring Modules
• Easy web-based client with multi-user access
• Help menu on major functions
• Auto and manual firmware upgrades
• 5 year limited warranty
