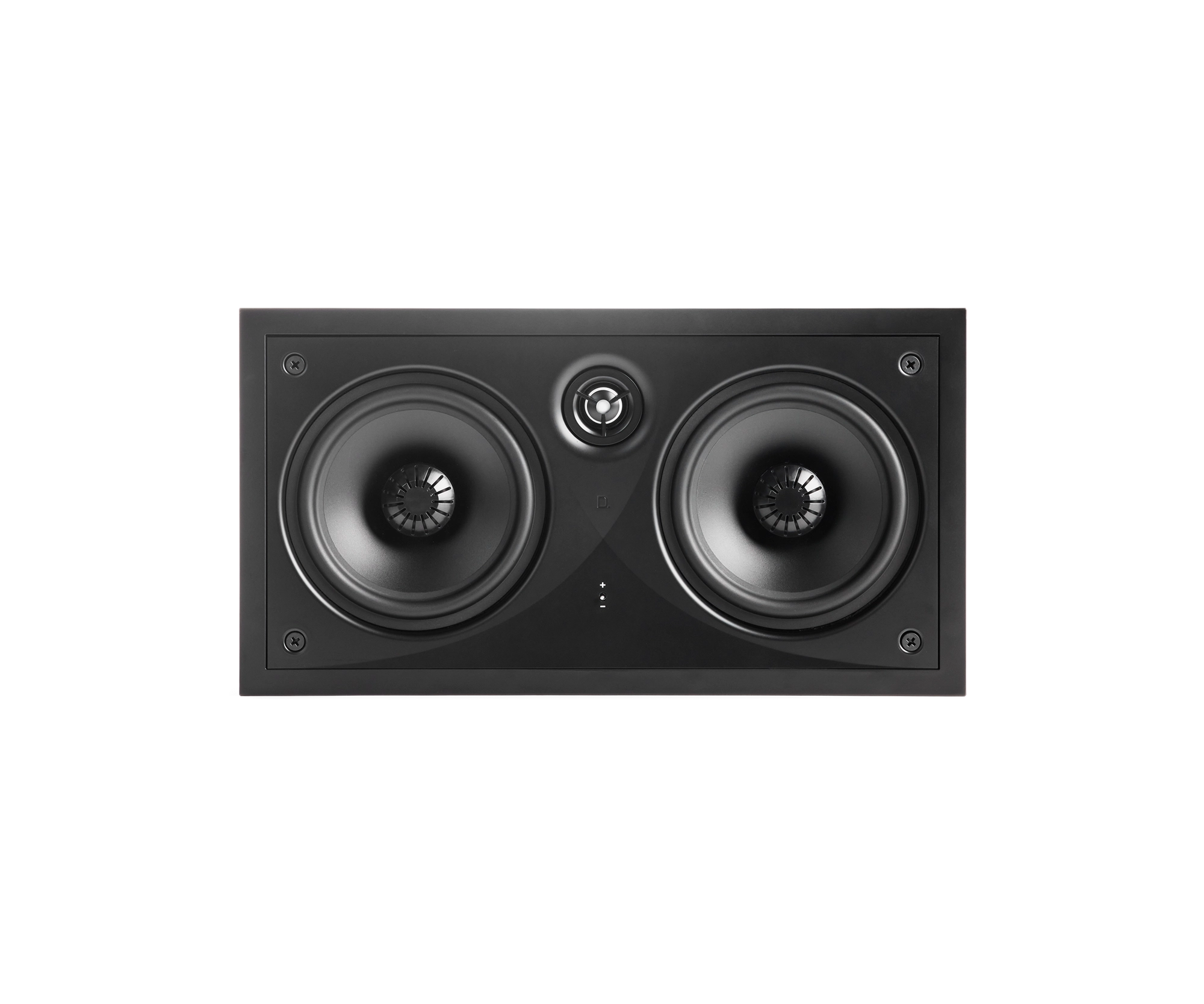

Definitive Technology LCR-650 Max

Dymension CI™ LCR-525 MAX and LCR-650 MAX in-wall LCR speakers deliver precise sound while vanishing into any room, with features like premium woofers, pivoting tweeter, and discreet aesthetics. Dual 6.5" Mineral-Filled BDSS Woofers with Linear Response Waveguide™ 1" Pivoting Aluminum Oxide Dome Tweeter Toolless Installation Flush, Border-Free Design Tweeter Attenuation Switch

Dymension CI MAX’s light, stiff, mineral-filled woofers feature Definitive Technology’s revolutionary Balanced Double Surround System (BDSS™), which improves driver excursion and output, delivering superior punchiness and detail and a more even midrange throughout the room. Our patented Linear Response Waveguide™ extends both on-axis and off-axis frequency dispersion for more natural midrange and precise imaging and an open, airy sound.

Product Dimensions (W x H x D)* *Horizontal Orientation 17.18 x 9.35 x 3.94 in (436.4 x 237.4 x 100.3 mm) Cut- Out Dimensions (W x H) 15.95 x 8.12 in (405.2 x 206.2 mm) Mounting Depth 3.66 in (92.9 mm) Weight 7.47 lbs (3.39 kg) Color White Paintable Grille Grille material Micro-Perforated Magnetic Grille Tweeter 1 in Pivoting Aluminum Oxide Dome Tweeter Midrange/Midbass (2) 6.5 in. Mineral Filled Poly BDSS™ with Linear Response Waveguide™ Frequency response 32 Hz–30 kHz (-10dB) 46 Hz–25 kHz (-3dB) Nominal impedance 4Ω

PRODUCT FEATURES • Effortless, toolless installation; pre-construction brackets available • Audiophile-quality sound in in-wall LCR speakers • Speakers can be oriented horizontally or vertically • Two speaker sizes: dual 5.25” (LCR-525 MAX) or 6.5” (LCR-650 MAX) BDSS woofers • Sophisticated crossover optimizes drivers for balanced sound • Pivoting 1” laterally offset tweeter aim highs where you want them • Dual BDSS woofers produce rich, natural mids • Tailor sound with a three-way high-frequency adjustment switch • Acoustically transparent paintable microperforated grille • CI Series is IP55-rated for use outdoors and in high-humidity spaces • Timbre-matched with Dymension™ and Mythos® speakers
