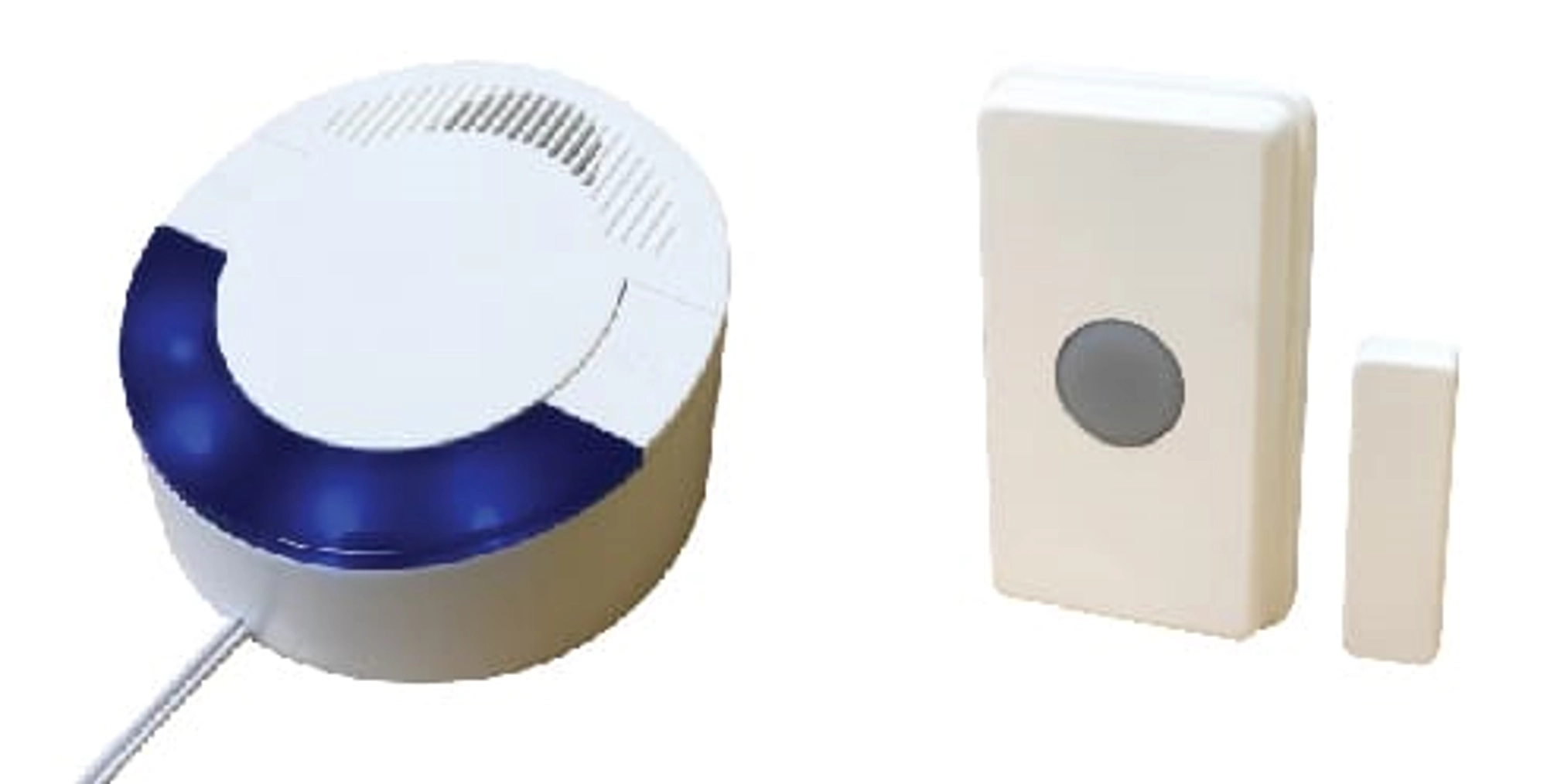

The Dakota Alert Long Range Wireless Push button and Door/Window Sensor can be used in three different modes:
Wireless Doorbell Button - In this mode, the doorbell button is mounted where needed
Wireless Door Windows Open Sensor - in this mode the included magnetic sensor is mounted on a door or window to detect when it has opened
Wireless Universal Transmitter - in this mode there is an input on the wireless transmitter that accepts a Normally Open or Normally Closed contact
In any of these modes, when triggered, a wireless signal is sent to the wireless receiver where the LED light will flash and your choice of tunes/tones will be played. With a wireless range of up to 1 mile* this wireless system can be used in homes, schools, small businesses, farms and more.
The outdoor doorbell button is completely weatherproof and has a soft push button.
The included UT-4000 button transmitter operates on a 3-volt lithium battery (included) and can be easily mounted to a door frame or wall.
The included DCR-4000 chime receiver can be wall mounted or set on a table in a convenient and central location.
* Note: Wireless range is maximum, line of sight, without interference. Obstructions, hilly terrain and interference will reduce range.
* The UTDCR-4000 replaces the UTDCR-2500 with up to double the wireless range, but it does not have any relay or 12VDC output.The 4000 series products are not compatible with the 2500 series products
The Dakota Alert Long Range Wireless Push button and Door/Window Sensor can be used in three different modes: Wireless Doorbell Button - In this mode, the doorbell button is mounted where needed Wireless Door Windows Open Sensor - in this mode the included magnetic sensor is mounted on a door or window to detect when it has opened Wireless Universal Transmitter - in this mode there is an input on the wireless transmitter that accepts a Normally Open or Normally Closed contact In any of these modes, when triggered, a wireless signal is sent to the wireless receiver where the LED light will flash and your choice of tunes/tones will be played.
Wireless Doorbell Specifications
Can be activated using push button or terminal inputs (N/O or N/C)
Frequency: 433 MHz
Battery required: 3 Volt Lithium (included)
Wireless Range: Up to 1 Mile*
Weather Resistant (suitable for outdoor use)
Built in Magnetic Reed Switch and included magnet for doors and windows, closets, cupboards or drawers
Doorbell Chime Specifications
12 Different Chimes Tones
Volume Control
LED Reminder Lights
Operating Voltage - 12VDC - Power Supply Included
12 volt DC output current: 500 mA maximum
Frequency - 433 MHz
Dakota Alert Plus Receiver - Specifications
16 Different Chimes Tones
4 volume levels plus "off"
2 relay and one 12 VDC output
Output durations 1, 5, 15 seconds or 5 minutes
LED flashes for 15 seconds upon activation
Operating Voltage - 12VDC - Power Supply Included
Frequency - 433.92 MHz
Wireless Range - up to 4000 feet or 1 Mile*
