Dakota Alert DCPA-4K-PLUS

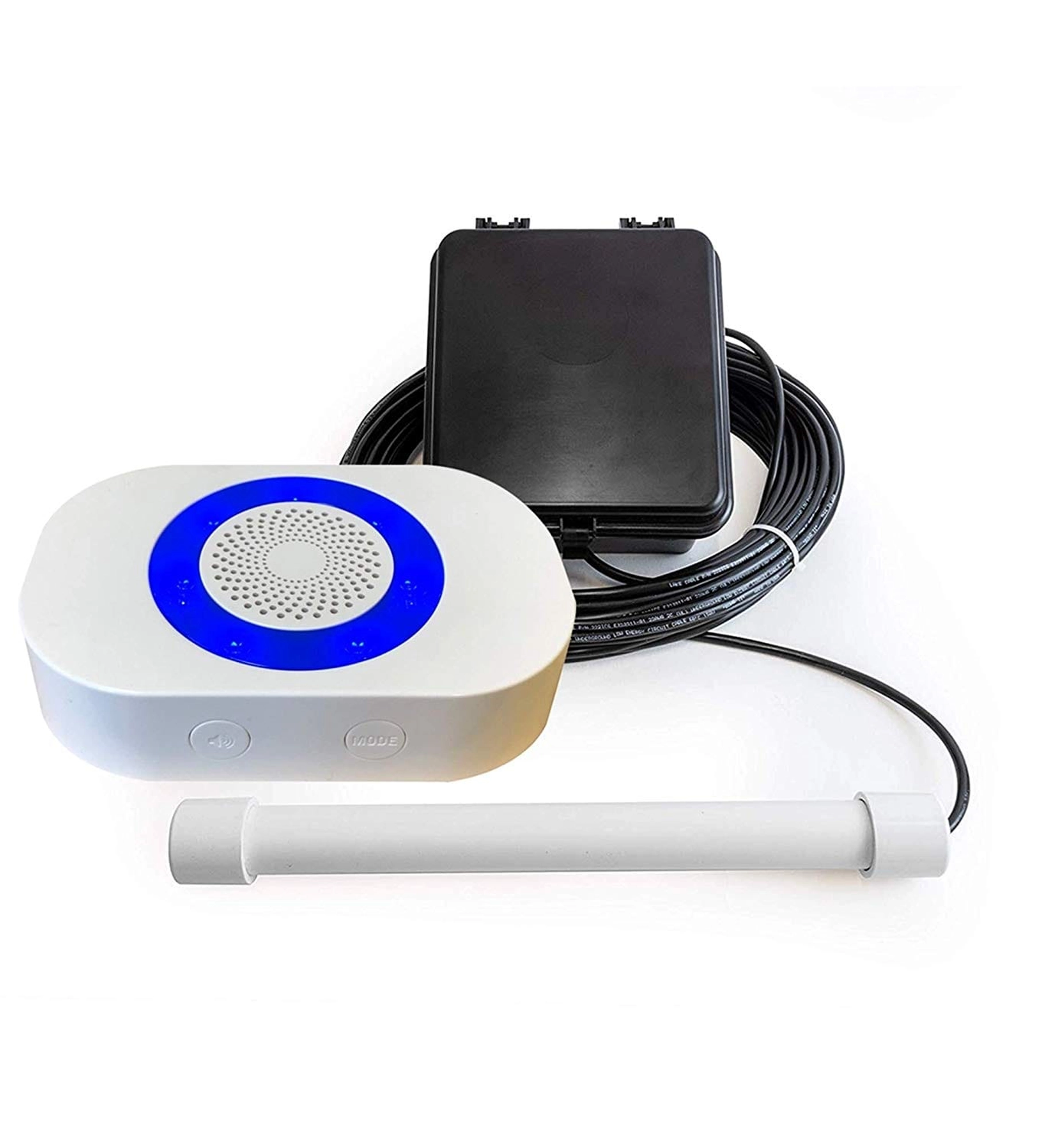

Dakota Alert DCPA-4K-PLUS Magnetic Vehicle Probe Wireless Driveway Alarm with Relay Don't get caught off guard when vehicles approach your home or business. Perfect for protecting driveways, drive thru, service centers, farms and property entrances. The Dakota Alert DCPA-4K-PLUS driveway alarm system uses a magnetic probe that senses the change in magnetic field caused by large moving metal objects like cars, trucks and heavy equipment. The magnetic vehicle probe is buried along side or under the driveway and a wire is run to the wireless transmitter that can mount on a wall, tree or pole. When a vehicle drives through the detection area, the wireless transmitter will send a signal to the receiver which will play a sound and light up the LED indicator light. The included Dakota 4000 Plus receiver has two form C relay outputs and a 12VDC relay output that can be activated when one of the sensors are triggered. This allows the receive to be connected to an external siren, strobe light or to an alarm or automation system. The relay and voltage outputs can be set to trigger for 1 second, 5 seconds, 15 seconds, or 5 minutes when a sensor is activated. Each sensor can have its own turn and it's own activation time. Get creative and use the sensor to alert you to garbage trucks, farm vehicles or even moving garbage bins and lids for commercial garbage bins. The DCPA4000 has a long wireless range of up to 1 mile (5280 feet)* from transmitter to receiver. The transmitter and the receiver is powered by the included plug-in power adapter. * Note: 2500 series are not compatible with 4000 series. Up to 16 different sensors can be paired with this kit by adding additional sensors: DCHT4000 - additional rubber hose sensor and transmitter DCMT4000 - additional motion sensor and transmitter DCPT4000 - additional metal sensing driveway probe and transmitter UT4000 - additional doorbell/push button transmitter The included DCR4000 receiver offers 12 different sounds to choose from: Ding Dong (high) Ding Dong (low) Westminster Fur Elise Alarm/Siren Coo Coo Clock Bird Chirping Twinkle Twinkle William Tell Cannon in D Morning Toreador March Dakota DCPA-4K-PLUS Wireless Driveway Alarm Features Magnetic vehicle probe detects moving metal like vehicles, cards, trucks with a 10-12 foot radius Includes 50 foot probe wire to connect to wireless transmitter that mounts on wall, pole or tree 2 x Form C Relays (normally open and normally closed), rated up to 3A @ 30VDC 1 x 12VDC output rated up to 400mA Up to 1 mile or 5280 foot wireless range* Battery life 12 months depending on weather and activity Receiver powered by included plug-in adapter Outdoor sensor operating temperature range -30 to 120°F (-34.4 to 48.9°C) Dakota DCPA-4K-PLUS Includes 1 x Magnetic vehicle probe with 50 foot wire and wireless transmitter (DCPT4000) 1 x Indoor wireless receiver (RE-4K-PLUS) 1 x Plug-in power supply for receiver 1 x pack CR123a batteries RE-4K-PLUS User Guide * Note: Wireless range is maximum, line of sight, without interference. Obstructions, hilly terrain and interference will reduce range. NOTE: RELAY CONTACTS ARE RATED FOR LOW VOLTAGE DC ONLY. DO NOT CONNECT HIGH VOLTAGE OR AC POWER TO THE OUTPUT RELAYS.

Details: Model: Dakota Alert DCPA-4K-PLUS Type: Magnetic Vehicle Probe Wireless Driveway Alarm with Relay

Specifications: Detection Method: Magnetic probe sensor that detects the presence of vehicles. Detection Range: Up to 30 feet (adjustable sensitivity). Transmission Distance: Up to 4000 feet (line of sight) between sensor and receiver. Power Supply: Sensor operates on 9V battery; receiver powered by 12V DC adapter. Operating Frequency: 433 MHz

Features: Wireless Operation: Easy installation without wiring, allowing flexible placement of the sensor. Adjustable Sensitivity: Customize the detection sensitivity to reduce false alarms. Relay Output: Features a relay output for integration with other systems or alarms. Chime Options: Choose from different chime sounds for notifications. Weather Resistant: Designed for outdoor use, ensuring reliability in various weather conditions. Expandable System: Can work with additional sensors and receivers for extended coverage.
