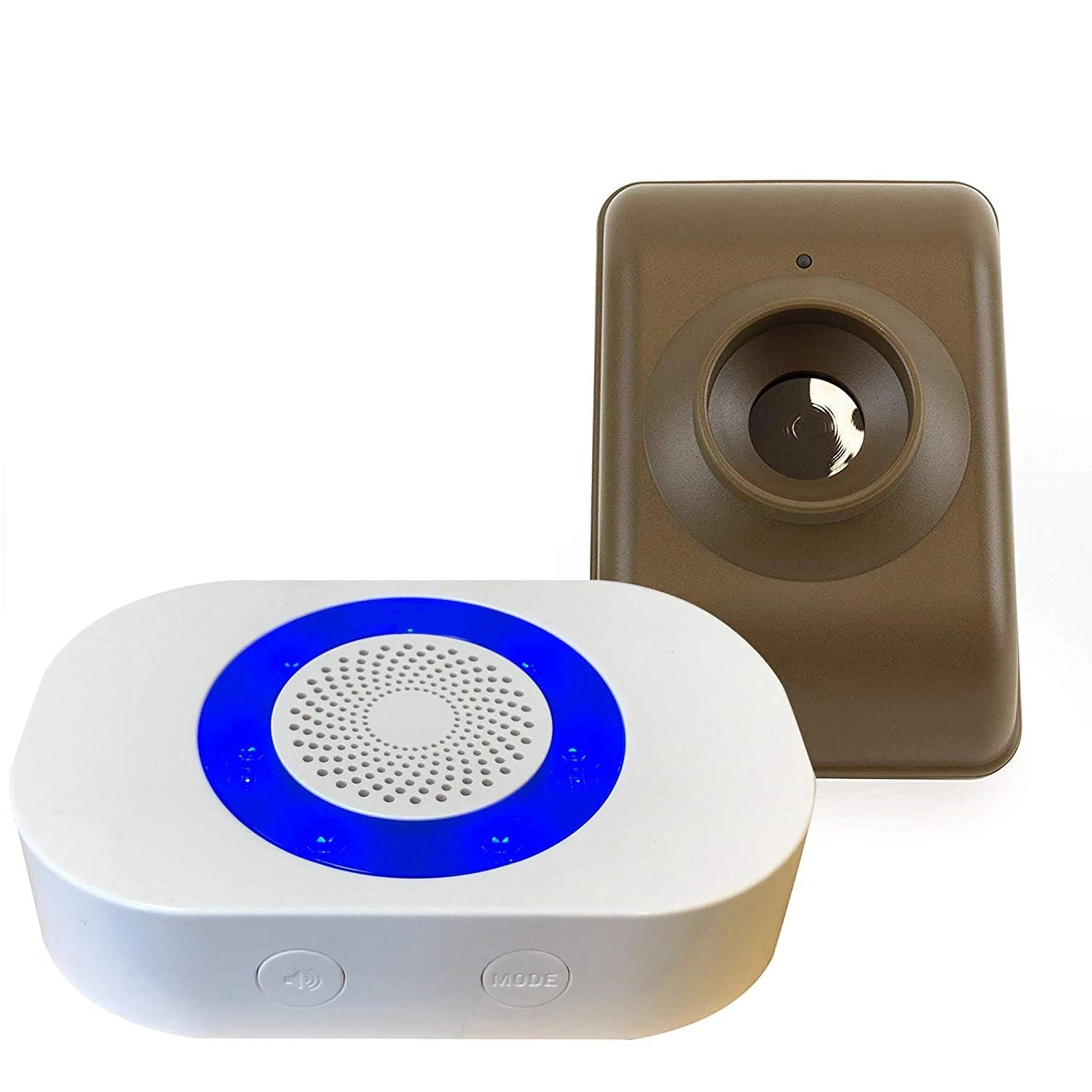

Dakota Alert DCMA4KPLUS Wireless Long Range Driveway Alarm with Relay
Get notified when someone or something enters your property with the Dakota Alert DCMA4000 driveway alarm system. With its PIR motion sensor, long range wireless range and easy set up, this may well be the best driveway alarm for general applications. The motion sensor may also be used for entrances, porches, or other areas you wish to protect or monitor.
The Dakota DCMA-4KPLUS motion sensor is outdoor rated and will detect people and vehicles entering your property or driveway, sending a wireless signal up to a mile to the wireless receiver. When motion is detected, the receiver will flash an LED indicator and play your choice of notification tunes/tones. The transmitter is battery powered using a 9V battery (not included) and the receiver is powered by the included plug-in power adapter.
The included Dakota 4000 Plus receiver has two form C relay outputs and a 12VDC relay output that can be activated when one of the sensors are triggered. This allows the receive to be connected to an external siren, strobe light or to an alarm or automation system. The relay and voltage outputs can be set to trigger for 1 second, 5 seconds, 15 seconds, or 5 minutes when a sensor is activated. Each sensor can have its own turn and it's own activation time.
* Note: 2500 series are not compatible with 4000 series
Up to 16 different sensors (transmitters) can be paired with this kit by adding additional sensors:
DCMT4000 - additional motion sensor transmitter
DCPT4000 - additional metal sensing driveway probe and transmitter
DCHT4000 - additional rubber hose sensor and transmitter
UT4000 - additional doorbell/ push button transmitter
The included receiver offers 12 different sounds to choose from:
Ding Dong (high)
Ding Dong (low)
Westminster
Fur Elise
Alarm/Siren
Coo Coo Clock
Bird Chirping
Twinkle Twinkle
William Tell
Cannon in D
Morning
Toreador March
Dakota DCMA-4K-PLUS Wireless Driveway Alarm Features
PIR motion sensor detects people or vehicles
Motion sensor maximum detection range 80 feet
Motion sensor is battery powered by 9V battery (not included)
Up to 1 mile or 5280 foot wireless range*
Receiver has 2 x Form C relays (normally open and normally closed) rated up to 3A @ 30VDC
Receiver has 1 x 12VDC output rated up to 400mA
Battery life 6-12 months depending on weather and activity
Receiver powered by included plug-in adapter
Outdoor sensor operating temperature range -30F to 110F
Dakota DCMA-4K-PLUS Includes
1 x Outdoor rated PIR motion sensor (DCMT4000)
1 x Indoor wireless receiver (RE-4K-PLUS)
1 x Plug-in power supply for receiver
Specifications:
Detection Method: Passive infrared (PIR) motion sensor.
Range: Detection range up to 100 feet (adjustable sensitivity).
Transmission Distance: Up to 4000 feet (line of sight) between sensor and receiver.
Power Supply: Sensor operates on 9V battery; receiver powered by 12V DC adapter.
Operating Frequency: 433 MHz.
Features:
Wireless Operation: No wiring required for installation, providing flexibility in placement.
Adjustable Sensitivity: Allows customization of the detection range to minimize false alarms.
Relay Output: Equipped with a relay output for integration with other devices or alarm systems.
Chime Options: Select from multiple chime sounds for notifications.
Weather Resistant: Designed for outdoor use, suitable for various environmental conditions.
Expandable System: Can be integrated with additional sensors and receivers for larger areas.
