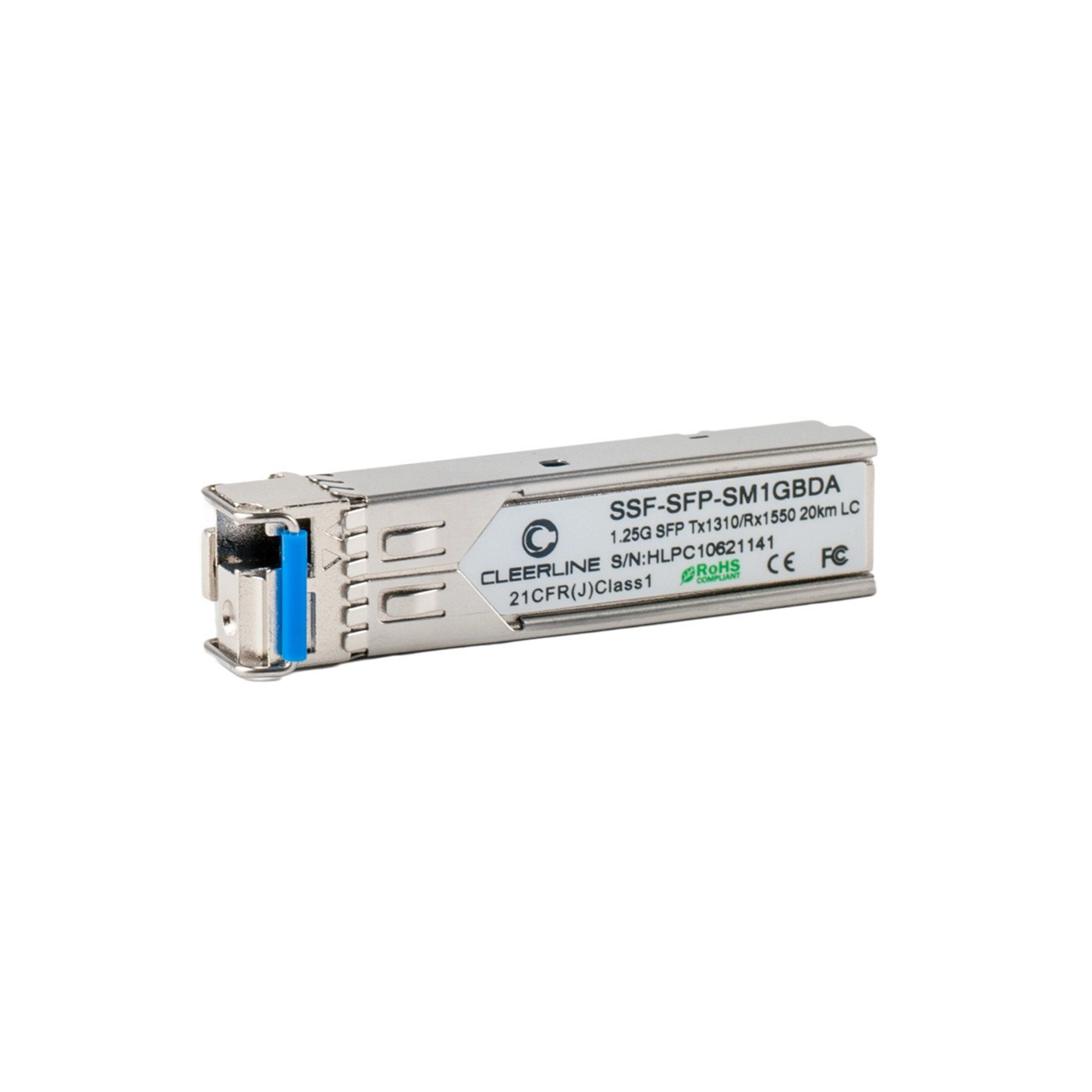

Cleerline SSF-SFP-SM1GBDA 1.25G LC SFP Transceiver BiDi T:1310/R:1550nm - 20Km Max Reach Requires B on Opposite Side SSF-SFP-SM1GBDA
Cleerline SSF-SFP-SM1GBDA 1.25Gps SFP Transceiver BiDi T:1310/R:1550nm - 20Km Max Reach - with DDM. In order to function correctly, these SFPs must be used as a pair: SSF-SFP-SM1GBDA matched with SSF-SFP-SM1GBDB. SOLD SEPARATELY.
Bi-directional (BiDi) SFP transceivers are high performance, cost effective modules supporting dual data-rates of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF. These SFPs use Wavelength Division (WDM) technology, mixing two wavelengths simultaneously.
These modules each accept 1 LC connector.
The SSF-SFP-SM1GBDA consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.
The SSF-SFP-SM1GBDB transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.
All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA. Note: not compatible with HP devices.
Features:
1G SFP transceiver BiDi T:1310/R:1550nm, 20Km max reach, w/DDM (Requires B on Opposite Side)
Dual data-rate of 1.25Gbps/1.063Gbps operation
SSF-SFP-SM1GBDA: 1310nm FP laser and PIN photo-detector for 20km transmission
SSF-SFP-SM1GBDB: 1550nm DFB laser and PIN photo-detector for 20km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Specifications:
Form Factor: SFP
Optical Connector: Single LC
Operating Distance: 20Km
Compliance: MSA SFF-8431, RoHS
Operating Mode: Bi-Directional
Fiber Type: Single-mode 9/125um, single strand
Wavelength: Tx:1310nm/Rx:1550nm
Digital Diagnostic: Yes (SFF-8472 compliant)
Min Output (dBM): -8
Sensitivity (dBm): -23
Power Budget (dB): 15
Operating Temperature: 32° to 158°F (0° to 70°C)
Details:
Product: Cleerline SSF-SFP-SM1GBDA
Type: 1.25G LC SFP Transceiver
Mode: BiDi (Bidirectional)
Wavelength: Transmit: 1310 nm / Receive: 1550 nm
Max Reach: 20 km
Compatibility: Requires a corresponding B-side transceiver for proper operation.
Specifications:
Data Rate: 1.25 Gbps
Connector Type: LC duplex connector
Fiber Type: Single-mode fiber (SMF)
Distance: Supports up to 20 km transmission distance.
Operating Temperature: Typically operates within a standard temperature range (-40°C to 85°C, but check the manufacturer's specifications for exact values).
Compliant Standards: Compatible with industry standards such as MSA (Multi-Source Agreement).
Features:
Bidirectional Transmission: Allows for simultaneous data transmission and reception on a single fiber, improving network efficiency.
Compact Size: SFP form factor for easy installation in compatible networking equipment.
Reliability: Designed for stable performance over extended distances.
Hot-Swappable: Can be replaced or added without powering down the network device
