Cleerline SSF™ LC and SC mechanical splice connectors ensure precise fibre alignment, producing low loss terminations for all multimode or single mode applications. SSF™ are compatible with 250 µm, 900 µm, 2.0 mm, and 3.0 mm cables. No crimping or proprietary tooling is required to terminate.
Cleerline SSF™ LC and SC mechanical splice connectors ensure precise fibre alignment, producing low loss terminations for all multimode or single mode applications.
SSF™ are compatible with 250 µm, 900 µm, 2.0 mm, and 3.0 mm cables. No crimping or proprietary tooling is required to terminate.
Each connector features a large confirmation window for easy verification and a V-groove channel for easy fibre insertion.
SSF™ connectors are compatible with all SSF™ fibres as well as standard fibre optic cabling.

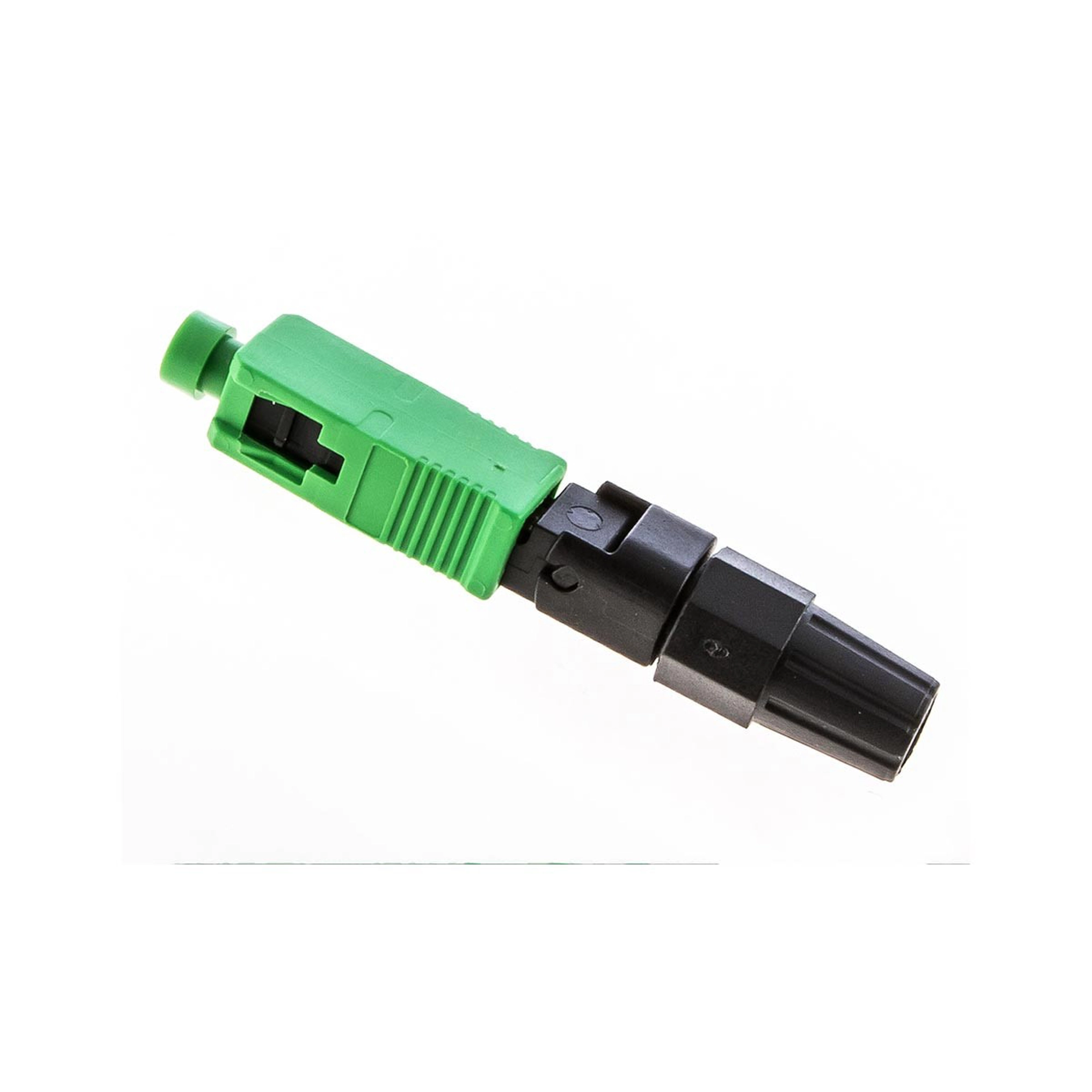

Cleerline Single Mode SC Angled Polished Connector. 25 Pack
Type SC
Fibre Type OS1/OS2 Single Mode
Polish Angled Physical Contact
Insertion Loss Typical ≤ 0.3 dB Max 0.6 dB
Colour Green
Pack QTY 25
Pre-polished connectors
No crimping required
Large confirmation window
Exclusive hinge-based design
Compatible with 250µm, 900µm, 2.0mm, and 3.0mm cable
Build-up tubes included
Available in single mode and multimode, LC and SC styles
Single mode UPC and APC styles available
