Cleerline SSF™ field installable LC & SC type connectors completely eliminate the need to hand polish, epoxy, or crimp in the field. Being the easiest to terminate connectors in the industry while requiring no specialized tooling, SSF™ mechanical splice connectors ensure precise fiber alignment producing low loss terminations for all Multimode or Singlemode applications. SSF™ connectors are compatible with 900µm, 2.0 or 3.0mm fiber optic cabling. Our exclusive hinge based design and large verification windows allows for easy confirmation of successful termination. SSF™ connectors are compatible with all SSF™ fibers as well as standard fiber optic cabling.
Details:

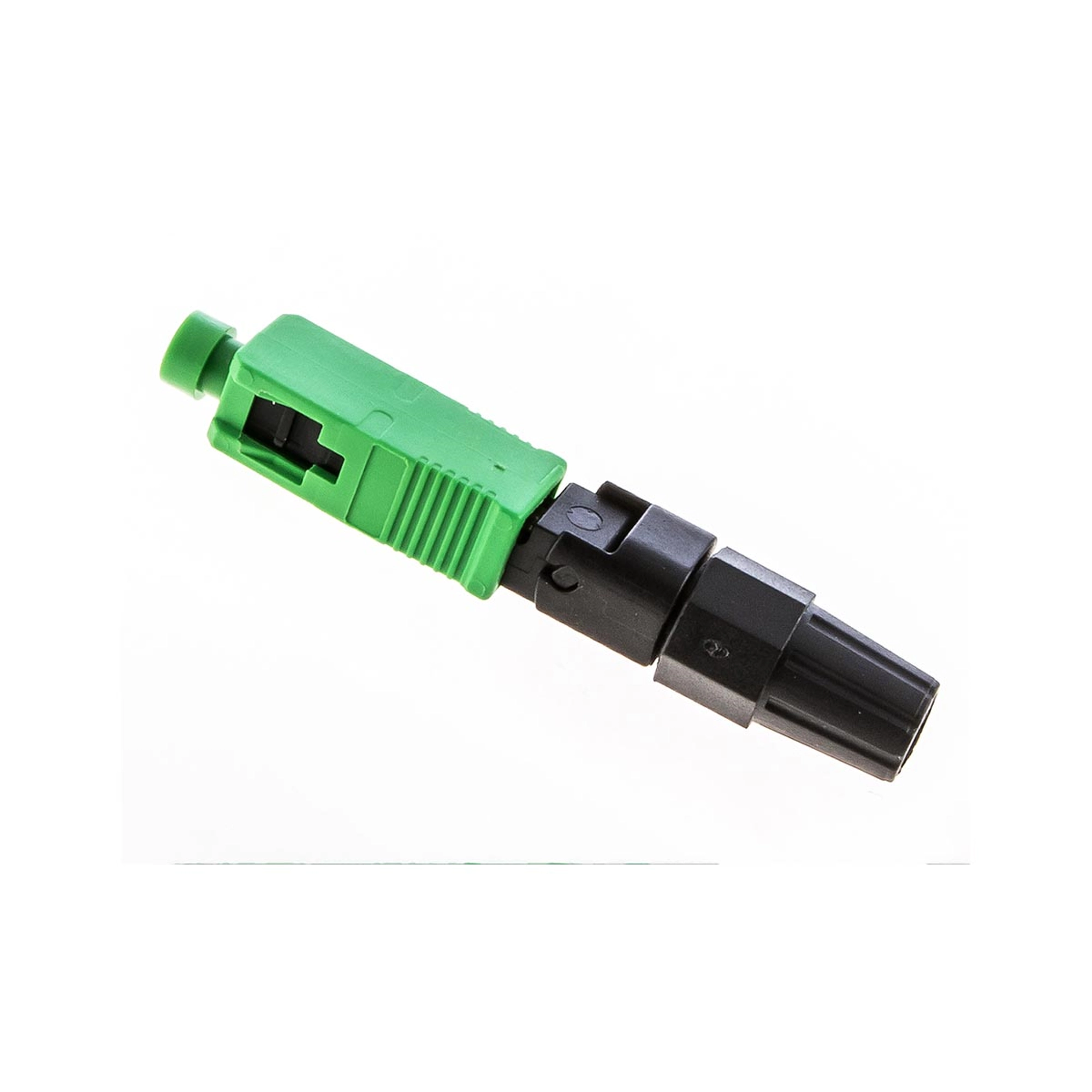

The Cleerline SSF-SC-SMAPC-10 is a high-performance SC type fiber optic connector designed for single mode applications. It features an angled polish that helps minimize back reflection, making it ideal for applications requiring high-quality signal transmission over longer distances.
Specifications:
Connector Type: SC
Fiber Mode: Single Mode
Polish Type: Angled (APC)
Fiber Count: 10 fibers
Insertion Loss: Typically less than 0.3 dB
Return Loss: Typically greater than 60 dB
Compatibility: Standard SC fiber optic cables
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Terminate in as little as one minute
Compatible with 900µm, 2.0, and 3.0mm cables
No crimping or proprietary tooling required
Large confirmation window for easy verification
Easy fiber insertion with V-groove channel
Industry leading hinge clamp strain relief
Simplified ordering and inventory
