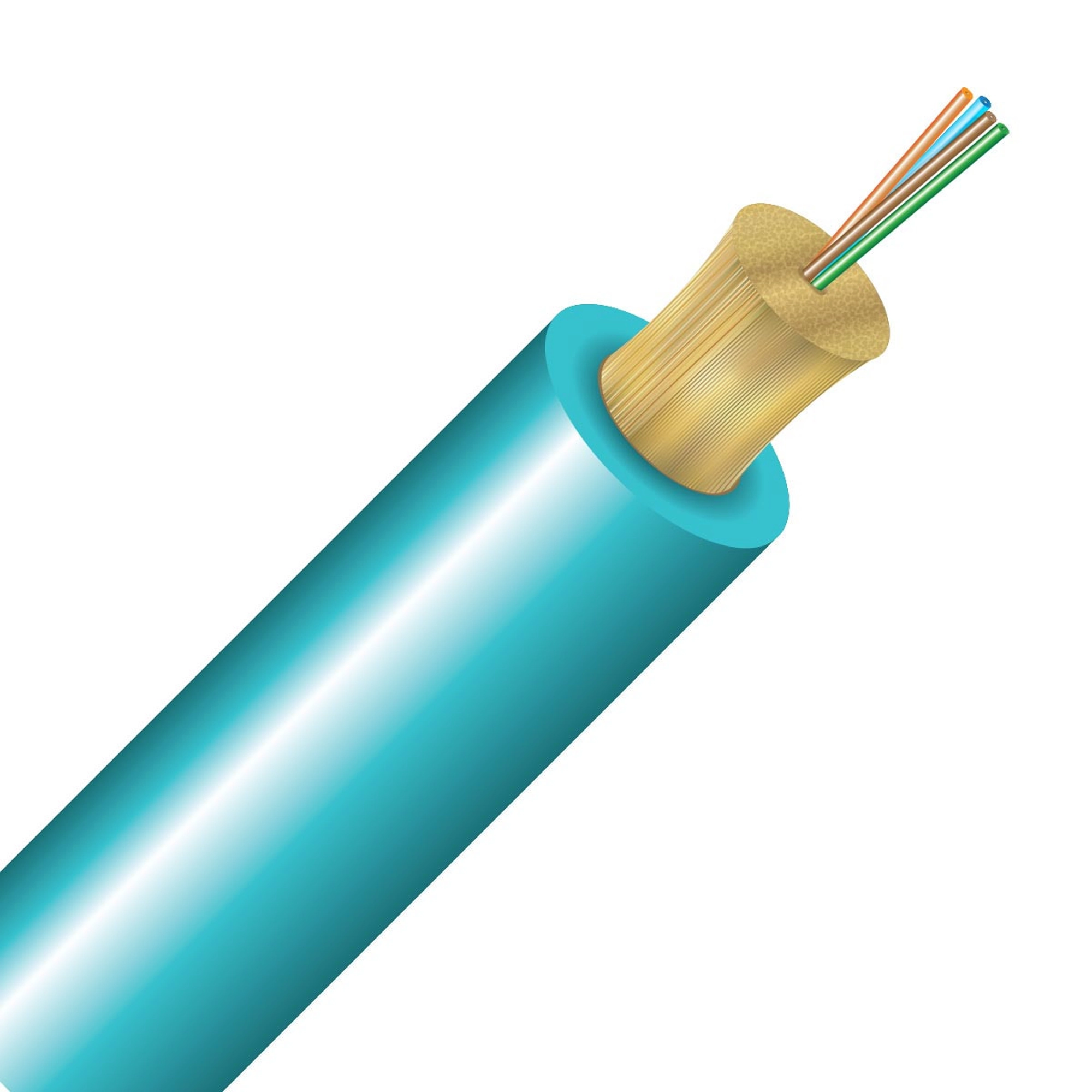

Cleerline SSF™ 4 strand fiber Micro Distribution cable is composed of distribution style SSF™ cable with an overall 3.0 mm Riser rated jacket. Use for indoor applications. SSF™ Micro Distribution is ideal for inter-building or intra-building data communication backbones. Cleerline SSF™ Micro Distribution Multimode is fully compatible with all common connector systems for standard 50/125 multimode fiber. The included SSF™ fiber provides extreme durability and strength. Flex tested to 2000 cycles, impact to 1500 cycles, and crush to 100 kgf/mm.
Details:
Product: Cleerline 4D50125MOM3R
Type: 4-Strand OM3 Micro Distribution Indoor Riser Rated Cable
Length: 1000 Feet (Roll)
Application: Designed for indoor riser applications, suitable for vertical installations in building structures.
Specifications:
Fiber Type: Multimode OM3, optimized for high-speed data transmission.
Strand Count: 4 strands, ideal for various networking applications including data centers and high-bandwidth systems.
Cable Construction: Micro distribution design for reduced size and enhanced flexibility.
Outer Diameter: Approximately 2.0 mm, allowing for easier installation in tight spaces.
Riser Rated: Compliant with NEC (National Electrical Code) standards for vertical installations in conduits and risers.
Temperature Range: -20°C to +70°C (-4°F to +158°F) for reliable performance across various environments.
Strands:
4 Strands
Cable Type:
Micro Distribution
Mode:
OM3 (Multi)
Sold By:
By the box
Brand:
Cleerline Technology Group
Jacket Type:
Riser
Color:
Teal
High mechanical strength, superior fatigue (nD = 30)
Compatible with common connector systems for 50/125 multimode fiber
Up to 10,000x the bend longevity of traditional fiber
Integral SSF™ coating provides glass protection
Increased safety due to incredible bend insensitivity
Exclusive 250 µm Soft Peel acrylate
