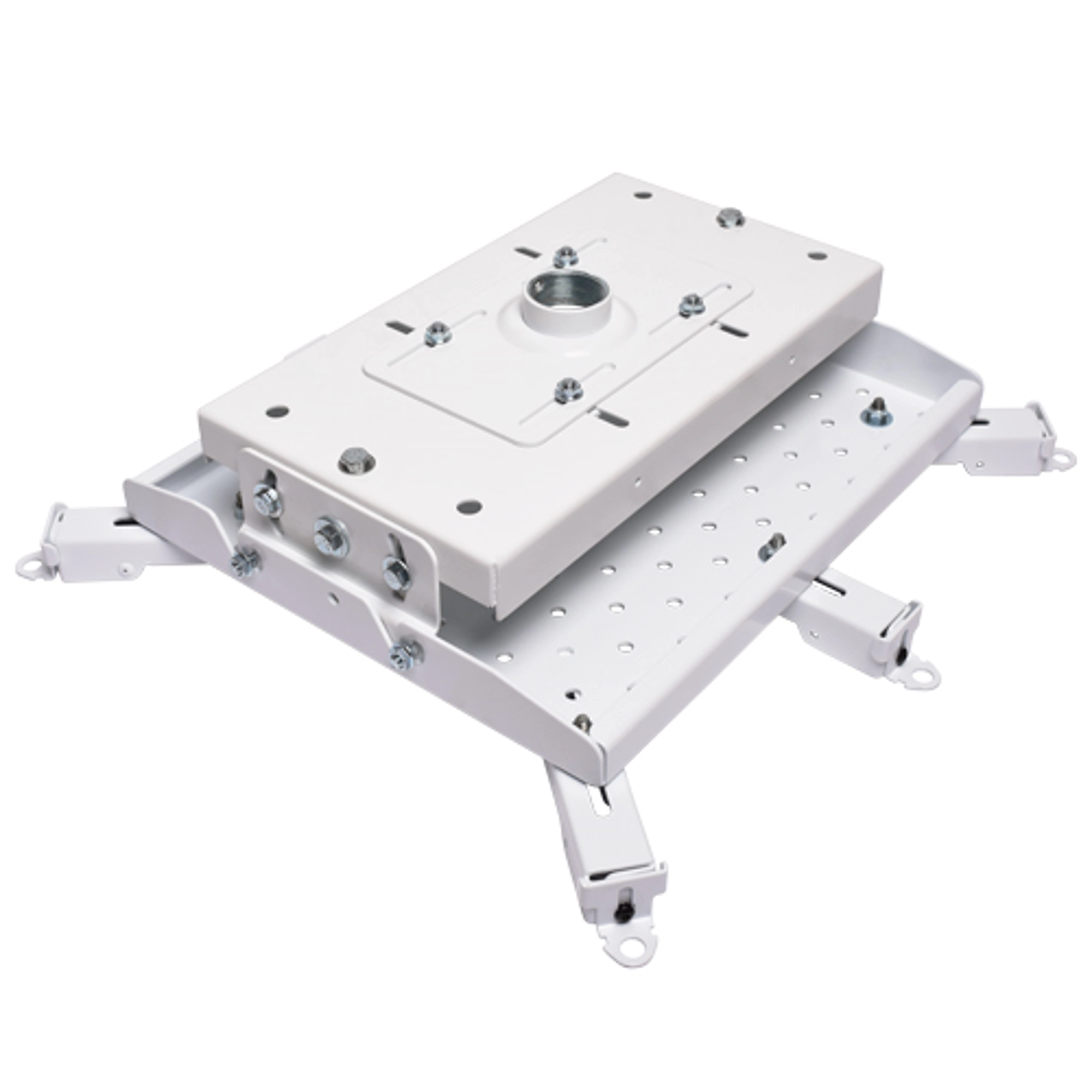

Chief VCMUW

Heavy Duty Universal Projector Mount

VCMUW

This mount provides the strong support you need for mounting heavy projectors. Micro adjustments allow you to quickly achieve registration. The VCMUW mount includes the universal HBUW bracket that is compatible with most heavy duty projectors.

• Overall Dimensions 25.75" x 16.25" x 11.75"(654.1 x 412.8 x 298.5 mm)
• Shipping Weight 43.63 lbs (19.8 kg)
• Weight Capacity 250 lbs (113.4 kg)
• Certifications UL Listed

• Independent roll, pitch and yaw adjustments for quick and precise projector registration
• Multiple installation options: flush mount to ceiling, use 0.5" threaded rods, use a 1.5" NPT extension column
• Quick connect/disconnect for convenient lamp and filter access on most projectors
• Cable management through top of the mount without additional accessories
• Easy 3-Step Installation
•  1) Assemble legs to projector
•  2) Fasten legs to universal bracket
•  3) Hook bracket onto VCM mount
• Heavy Duty Steel Construction
• Weight Capacity: 250lbs
