Chief RXF3

SKU: CHF-RXF3

MPN: RXF3

Description

Extra-Large Fit Fixed Display Wall Mount 49” to 98” typical display sizes and supports mounting patterns up to 960 x 650 mm.

Add to Wishlist

Send to a friend!

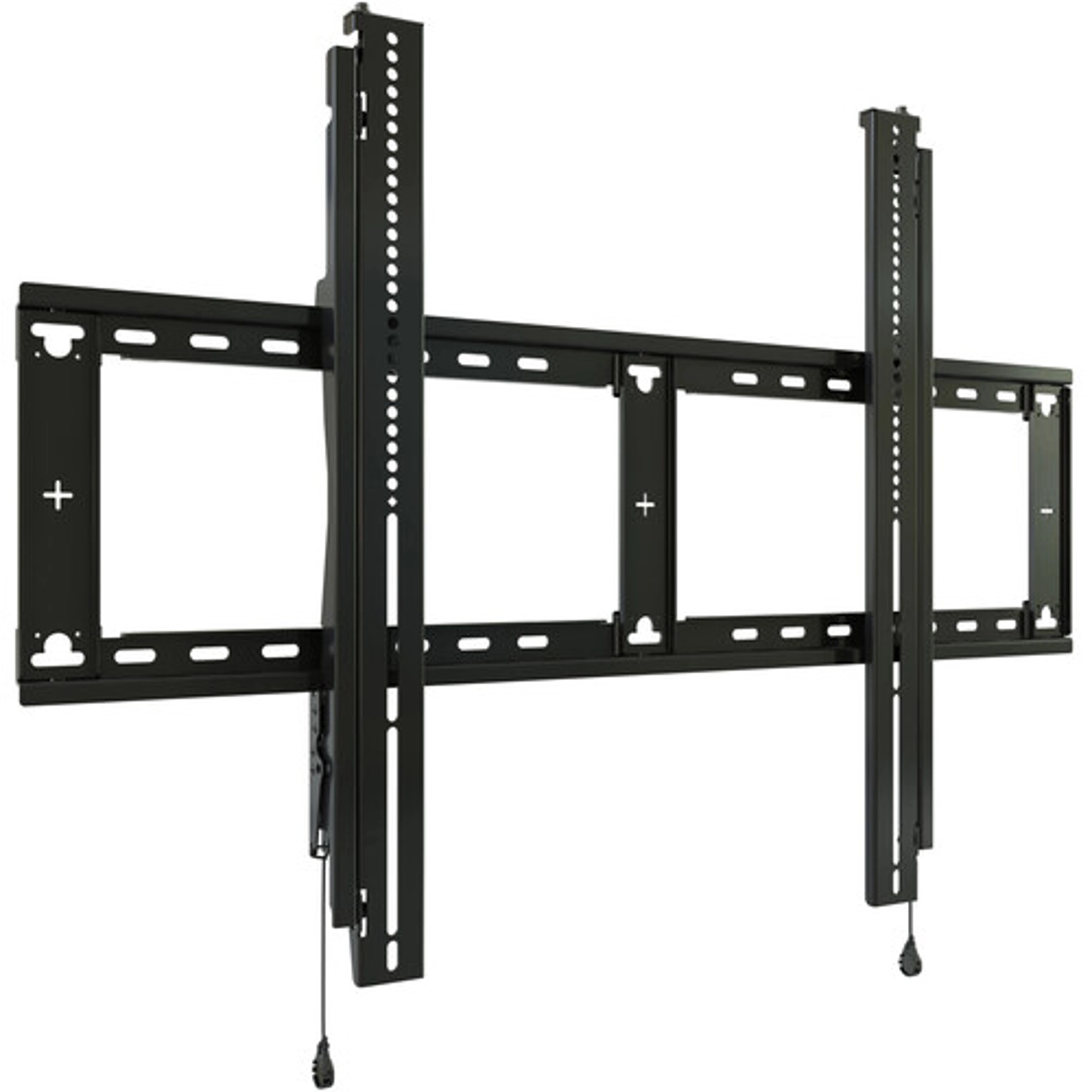

TheChief Fit Series Fixed Wall Mountis an extra-large fixed mount for displays 49 to 98" diagonal, weighing 250 lb or less. The rigid wall plate spans three studs for extra stability and provides post-installation lateral adjustment with Chief's toolless GlideLock for perfect positioning. The mount has a low profile of 1.5" and offers up to .75" of post-installation leveling adjustment. Additionally, the open-design wall plate can be placed easily around in-wall storage and power boxes. Magnetic quick-store release pullcords along with an integrated kickstand will help you access power, storage, and any rear-mounted connection.

Unnamed Group

Compatible Models	Displays49 to 98"
Mounting-Hole Pattern	Up to 960 x 650 mm
Load Capacity	250lb / 113.4kg
Mounting Compatibility	Triple Stud
Adjustments	Height: 0.8" / 20.3mm
Orientation	Landscape
Distance from Mounting Surface	1.5" / 3.8cm
Material of Construction	Metal
Dimensions	38 x 10.6" / 96.5 x 27cm (Wall Plate)38 x 27 x 1.5" / 965 x 687 x 39mm
Weight	17.4lb / 7.9kg

Packaging Info

Package Weight	17 lb
Box Dimensions (LxWxH)	35.25 x 13 x 2.75"

Orientation:
Landscape
Number of Studs:
Three
Brand:
Chief
Display Size:
Fits TV's up to 98"

Key Features

For 49 to 98" Displays up to 250 lb
Up to 960 x 650mm Mount Pattern
Lateral Shift with Toolless GlideLock
Post-Installation Leveling
