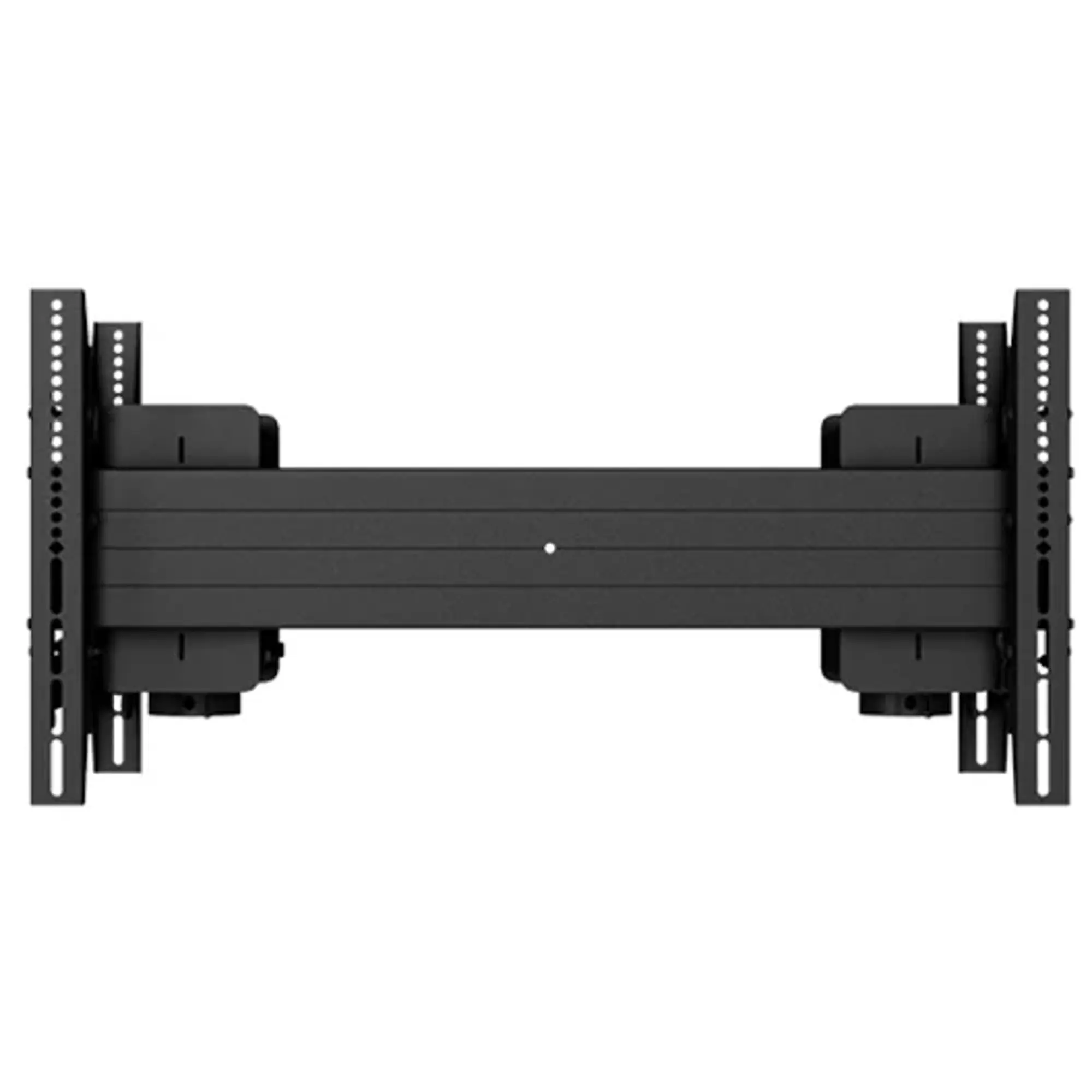

Chief OXCB1U

Outdoor Flat Panel Back-to-Back Ceiling and Pedestal Mount, Extra-Large

OXCB1U

The OLCB1U outdoor ceiling and pedestal mount is built to withstand rain, humidity and ocean air, sun exposure and high winds. Wind-compatible to 2000 ft-lbs maximum moment force used in engineering calculations to ensure a wide range of install configurations meet local safety requirements. Contact Legrand | AV Customer Care for additional information. Tilt range of +7.6 to -20 degrees has set locking points to eliminate guesswork when adjusting multiple displays. Can be ceiling or floor mounted.

• Weatherproof design meets UL 2442 Part 2 Suitable for Outdoor Use with corrosion resistant paint, UV-rated plastics and stainless-steel hardware.
• The system comes in three pieces, the mount, column and plate for better customization to fit the particular installation requirements.
• The four-step installation process keeps each piece separate for a safer, more manageable lifting load
• Tilt range of +7.6 to -20 degrees has set locking points to eliminate guesswork when adjusting multiple displays
• Universal interface fits most indoor and outdoor displays with up to 800 x 400 mm max VESA^® pattern

Dimensions & Measurements

• Overall Dimensions 34.63" x 15.63" x 12.5"(879.7 x 397.1 x 317.5 mm)
• Typical Screen Size 65" - 84" (1651mm - 2134mm)
• Weight Capacity 250 lbs (113.4 kg)

Characteristics & Features

• Adjustability Tilt
• Application Ceiling, Floor-Cart
• Color Black
• Number of Displays 2
• Orientation Landscape
• Special Features Multi-Display, Outdoor Use
• Tilt +7.6° to -20°
• VESA Mounting Pattern 200 x 100 - 800 x 400 mm

Certifications & Warranties

• Certifications UL Listed
