Chief FCAXV1U

Fusion® Extra-Large Pull Out Accessory

FCAXV1U

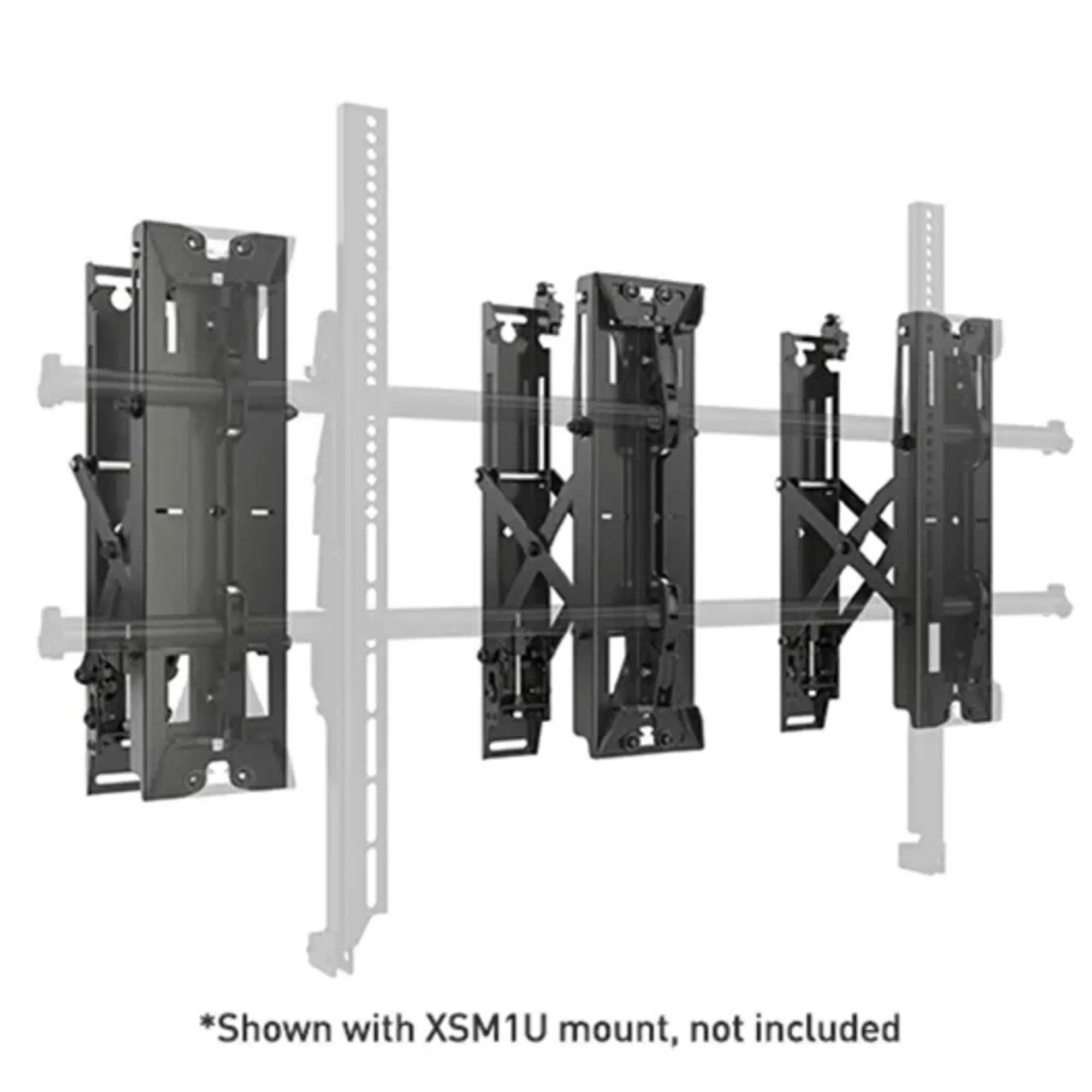

The Fusion^® Extra-Large Pull Out accessory can be used with Fusion^® Extra-Large Micro-Adjustable Fixed and Tilt wall mounts, to add up to 11.54" (293 mm) extension from the wall.

• Overall Dimensions 22.51" x 12.99" x 4.61"(571.8 x 330 x 117.1 mm)
• Plumb Adjustment +0.5° / -2°
• Shipping Weight 30.81 lbs (14 kg)
• Typical Screen Size Extra-Large
• Weight Capacity 250 lbs (113.4 kg)
• Certifications UL Listed

Compatible display mount models are XSM1U and XTM1U.

Optionally install Chief storage solutions such as the PAC526 in-wall box or on-wall CSPR component storage panel to secure AV equipment behind the display.

• Up to 11.54 (293 mm) extension when combined with Fusion mount - great for recessed applications
• Scissor assembly extends out up to 9.5"
• Plumb adjust to keep display in line with the wall
• Latch to secure mount in home position
• Compatible with Fusion Extra-Large Micro-Adjustable Fixed and Tilt mounts for installation of 80+ displays (up to 250 lb / 113 kg)
• Minimum Depth: Retracted depth without mount: 1.56" (39 mm)
