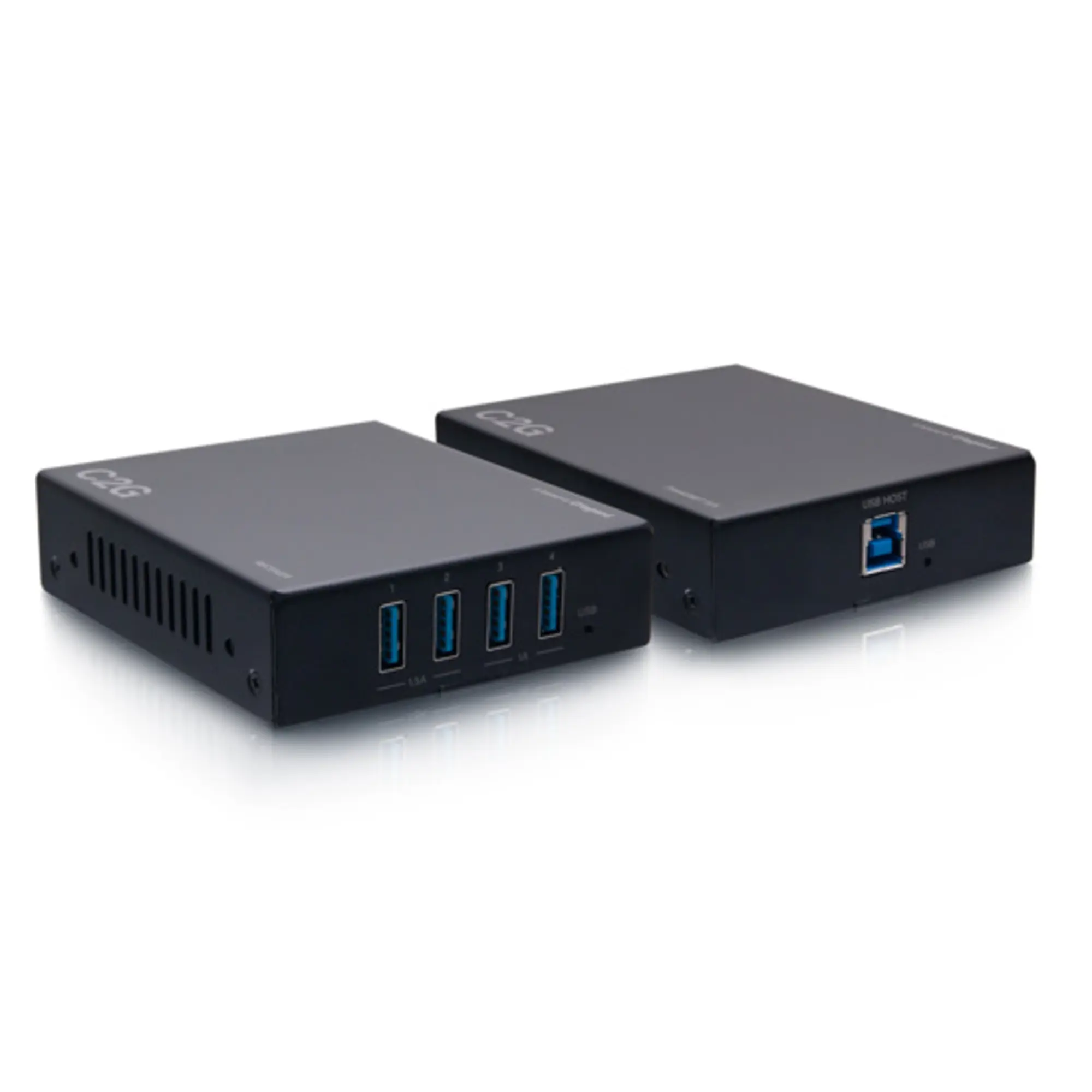

Superbooster 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1

C2G54265

C2Gs Superbooster 4-Port USB over Cat6a Extender Kit USB 3.2 Gen 1 (5Gbps) was designed to extend data from USB 3.2, 2.0 and 1.1 devices simultaneously up to 328 feet (100m) over a single Cat6a F/FTP cable, making it a perfect solution for USB 3.2 conferencing cameras, interactive white boards, security and monitoring, remote storage, and/or any other USB 3, 2 and 1 device.

No software drivers are required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable, and connect the Receiver to as many as four USB devices.

This Superbooster 4-Port Extender Kit provides the ability to connect USB 3.2 Gen 1 (5Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection.

This C2G Superbooster USB Extender has undergone rigorous compatibility testing with industry-leading video conferencing cameras, as well as solid state drives, docks, keyboards, mice and flash drives ensuring total reliability and deployment confidence, plus saving

valuable time for AV integrators as well.

This USB extender supports data transmission onlyno DisplayPort Alt Mode video support.

This package includes:

1 USB 3.0 Extender (Transmitter)

1 USB 3.0 Extender (Receiver)

1 24V/2A Power Supply with US/EU/UK/AU Plugs

2 4pin-3.5mm Phoenix Connector (male)

4 Mounting Ear

8 Machine Screw (KM3*4)

• Max Distance Support 328 ft (100 m)
• Signal Type USB 3.2 Gen 1
• Technology Specifications USB 1.1 USB 2.0 USB 3.2
• Data Transfer Rate 5 GBPS

• Cutsheet
