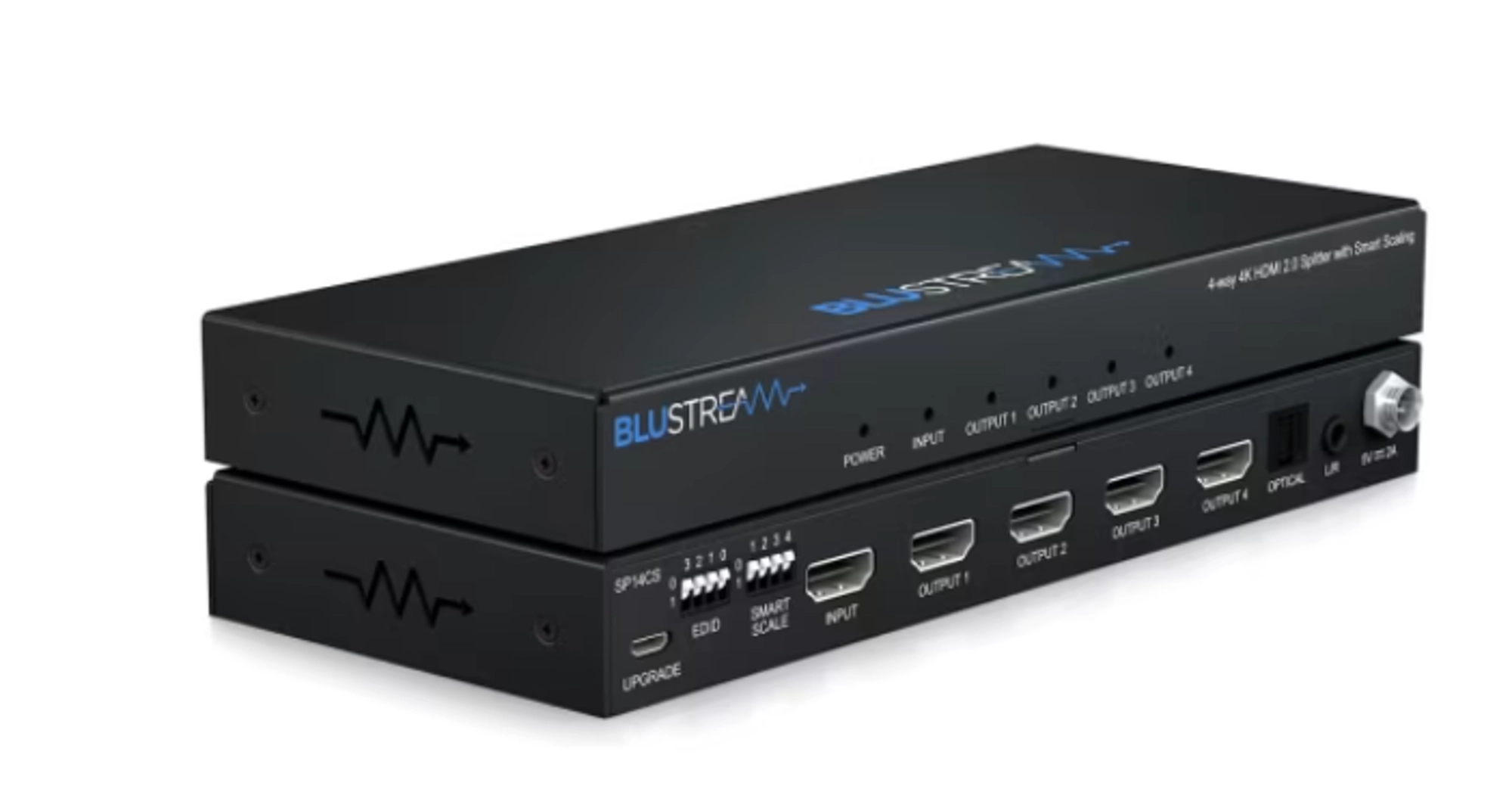

Blustream SP14CS

4-Way 4K HDMI 2.0 HDCP 2.2 Splitter

SP14CS

Our SP14CS 4K HDMI 2.0 splitter distributes a single HDMI source to four simultaneous outputs with both digital (S/PDIF) and analog audio breakout.

The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.

.

•  Video Input Connectors: 1x HDMI Type A
•  Video Output Connectors: 4x HDMI Type A
•  EDID: 4-PIN DIP switch
•  Smart Scale: 4-PIN DIP switch
•  Audio Output Connectors: 1x Digital (Optical), 1x Analog audio L/R (3.5mm stereo Jack)
•  Dimensions (W x D x H): 203mm x 84mm x 23mm, without feet
•  Shipping Weight: 0.8kg
•  Operating Temperature: 32°F to 104°F (0°C to 40°C)
•  Storage Temperature : -4°F to 140°F (-20°C to 60°C)
•  Power Supply: 5V/2A DC

•  Features 1x HDMI input that is replicated to 4x HDMI outputs
•  Supports HDMI 2.0 18Gbps specification including HDR
•  Supports up to 4K UHD 60Hz 4:4:4
•  Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
•  Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
•  Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
•  HDMI audio breakout to analog L/R audio and optical digital outputs concurrently
•  CEC (Consumer Electronic Command) will only pass between the source device and the sink connected to output 1
•  Advanced EDID management
•  HDCP 2.2 Support

• Cutsheet
