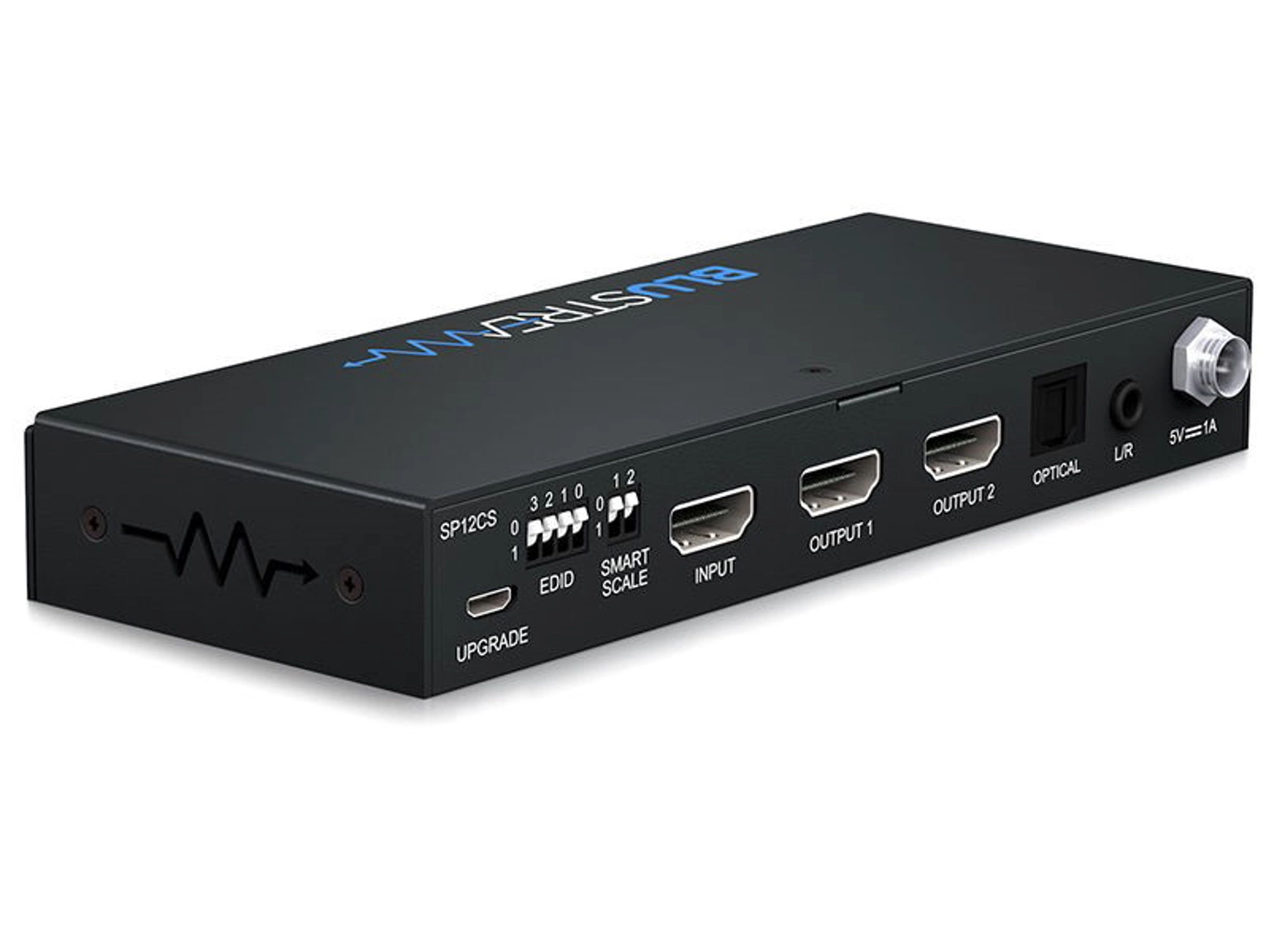

Blustream SP12CS

2-Way 4K HDMI 2.0 HDCP 2.2 Splitter

SP12CS

Our SP12CS 4K HDMI 2.0 splitter distributes a single HDMI source to two simultaneous outputs with both digital (S/PDIF) and analog audio breakout.

The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.

• Video Input Connectors: 1x HDMI Type A
• Video Output Connectors: 2x HDMI Type A
• EDID: 4-PIN DIP switch
• Smart Scale: 2-PIN DIP switch
• Audio Output Connectors: 1x Digital (Optical), 1x Analog audio L/R (3.5mm stereo Jack)
• Dimensions (W x D x H): 158mm x 64mm x 23mm, without feet
• Shipping Weight: 0.7kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC

•  Features 1x HDMI input that is replicated to 2x HDMI outputs
•  Supports HDMI 2.0 18Gbps specification including HDR
•  Supports up to 4K UHD 60Hz 4:4:4
•  Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
•  Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
•  Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
•  HDMI audio breakout to analog L/R audio and optical digital outputs concurrently
•  CEC (Consumer Electronic Command) will only pass between the source device and the sink connected to output 1
•  Advanced EDID management
•  HDCP 2.2 Support

• Cutsheet
