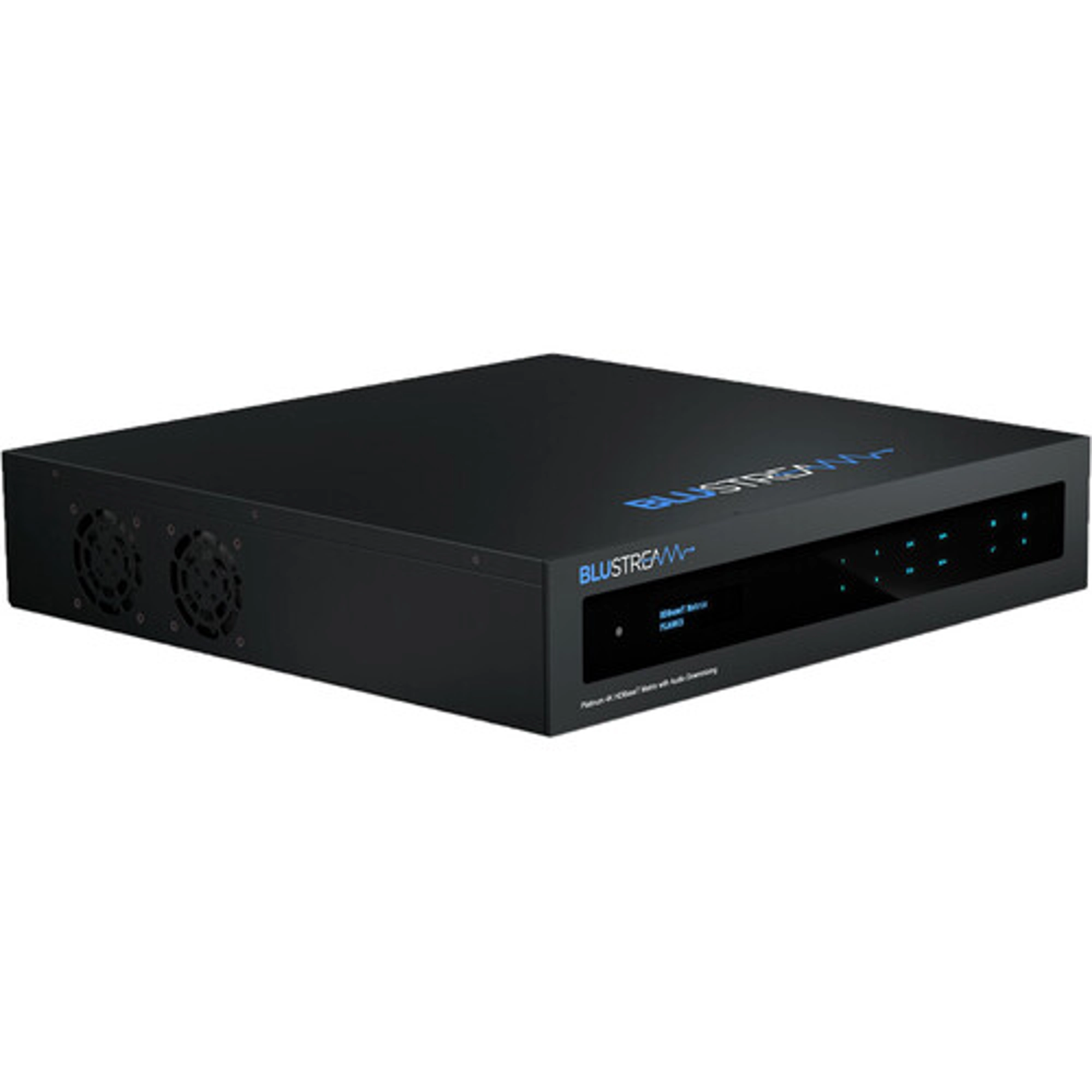

Blustream PLA88CS
SKU: BLU-PLA88CS
MPN: PLA88CS
Description
BLUSTREAM Platinum HDBaseT 8x8 CSC Matrix
Send to a friend!
SKU: BLU-PLA88CS
MPN: PLA88CS
BLUSTREAM Platinum HDBaseT 8x8 CSC Matrix
Send to a friend!
| Switching Type | IR Remote, Pushbutton, Software |
| Processing Resolution | UHD 4K at 60 |
| Color Processing | 4:4:4 |
| Video Inputs | 8x HDMI (2.0) Female |
| Input Video Format | HDMI (4:4:4)UHD 4K up to 60 fps |
| Audio Inputs | 2x 1/8" / 3.5 mm TRS Stereo Analog Female2x TOSLINK 8-Channel S/PDIF Female |
| Input Audio Format | AnalogS/PDIF |
| Embedded Audio Input | HDMI: 8-Channel (per Input) |
| Video Outputs | 4x HDMI (2.0) Female8x RJ45 (HDBaseT) Female |
| Output Video Format | HDMI / RJ45 (4:4:4)UHD 4K up to 60 fps |
| Audio Outputs | 8x TOSLINK 8-Channel S/PDIF Female8x 2RCA Stereo Analog Female |
| Output Audio Format | S/PDIFAnalog |
| Embedded Audio Output | HDMI: 8-Channel (per Output) |
| Other I/O | 1x RJ45 Control Input/Output1x RJ45 LAN Input/Output9x Block 3-Pin RS-232 Input/Output10x 1/8" / 3.5 mm IR Input9x 1/8" / 3.5 mm IR Output |
| HDCP Support | Yes, Version 2.2 |
| DTS Compatibility | DTS |
| Dolby Compatibility | Dolby Atmos |
| Wi-Fi | No |
| Bluetooth | No |
| Power I/O | 1x IEC C14 (100 to 240 VAC ) Input |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Certifications | FCC, CE, RoHS, CANICES-003 |
| Rack Form Factor | 1 RU |
| Dimensions | 17.3 x 14.2 x 3.4" / 440 x 361 x 87mm |
8
8
Blustream
