Blustream MX44KVM

SKU: BLU-MX44KVM

MPN: MX44KVM

Description

BLUSTREAM 4x4 USB KVM Matrix

Add to Wishlist

Send to a friend!

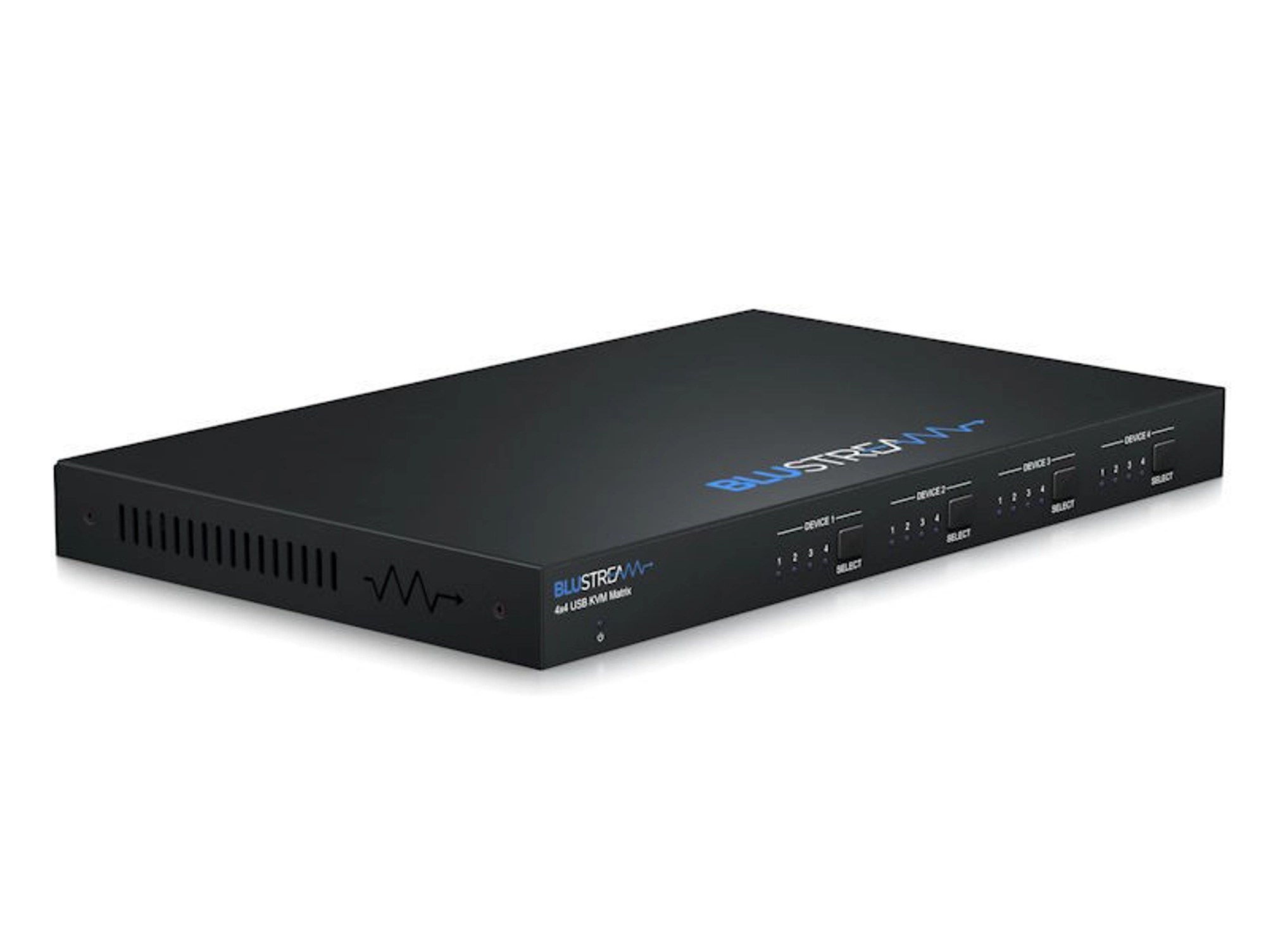

Designed primarily for commercial installations, the Bluestream MX44KVM 4x4 USB 3.1 Gen 1 KVM Matrix allows you to easily connect peripherals to multiple computers. In addition to supporting up to four host computers through the USB-B ports, the MX44KVM includes four USB-A 3.1 Gen 1 (aka 3.0) ports for peripherals such as keyboards, mice, and up to 5 Gb/s compatible flash drives.

Key Specs

# of Systems Supported	4
KVM I/O	4x USB-B 3.0 / 3.1/3.2 Gen 1
Console I/O	4x USB-A 3.0 / 3.1/USB 3.2 Gen 11x RJ452x Proprietary (RS-232)1x Proprietary1x 1/8" / 3.5 mm (IR)

General

# of Systems Supported	4
KVM I/O	4x USB-B 3.0 / 3.1/3.2 Gen 1
Console I/O	4x USB-A 3.0 / 3.1/USB 3.2 Gen 11x RJ452x Proprietary (RS-232)1x Proprietary1x 1/8" / 3.5 mm (IR)
USB Keyboard/Mouse Emulation	Yes

Power

Power Source

AC Adapter

Physical

Operating Conditions	-13 to 158°F / -25 to 70°C
Storage Conditions	-13 to 158°F / -25 to 70°C
Dimensions	10.7 x 6.6 x 1" / 273 x 168 x 25mm
Weight	5.84lb / 2.65kg

Type:
HDMI Matrix
Inputs:
4
Outputs:
4
Resolution:
4K Ultra HD
Brand:
Blustream

Key Features

4 x USB-B 3.1 Gen 1 KVM Ports
4 x USB-A 3.1 Gen 1 Ports
Up to 5 Gb/s USB Throughput
2 x RS-232 Phoenix Control Connector
