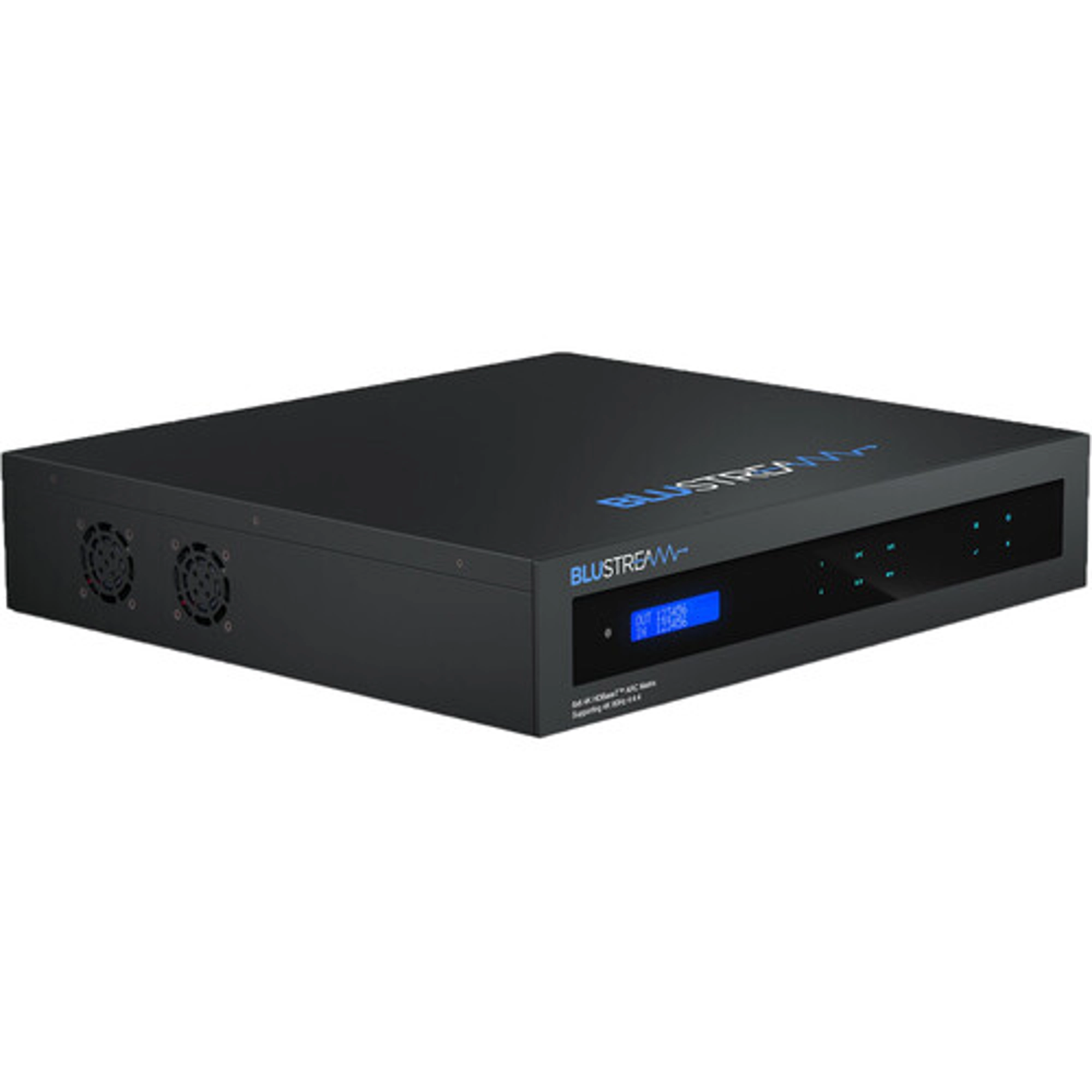

Blustream HMXL66ARC
SKU: BLU-HMXL66ARC
MPN: HMXL66ARC
Description
BLUSTREAM HDBaseT 6x6 AV Matrix
Send to a friend!
SKU: BLU-HMXL66ARC
MPN: HMXL66ARC
BLUSTREAM HDBaseT 6x6 AV Matrix
Send to a friend!
| Switching Type | IR Remote, Pushbutton, Software |
| Processing Resolution | UHD 4K at 60 |
| Color Processing | 4:4:44:2:0 |
| Video Inputs | 6x HDMI (2.0) Female |
| Input Video Format | HDMI (4:4:4/4:2:0)UHD 4K up to 60 fps |
| Audio Inputs | 1x 1/8" / 3.5 mm TRS Stereo Analog Female1x TOSLINK 8-Channel S/PDIF Female |
| Embedded Audio Input | HDMI |
| Video Outputs | 6x RJ45 (HDBaseT) Female |
| Output Video Format | RJ45 (4:4:4/4:2:0)UHD 4K up to 60 fps |
| Audio Outputs | 6x 1/8" / 3.5 mm TRS Stereo Analog Female6x TOSLINK 8-Channel S/PDIF Female |
| Output Audio Format | AnalogS/PDIF |
| Embedded Audio Output | RJ45: 8-Channel (per Output) |
| Other I/O | 7x Block 3-Pin RS-232 Input/Output1x RJ45 Control Input/Output7x 1/8" / 3.5 mm IR Input7x 1/8" / 3.5 mm IR Output |
| HDCP Support | Yes, Version 2.2 |
| DTS Compatibility | DTS, DTS 96/24, DTS Digital Surround, DTS Express, DTS Neo:6, DTS Neural:X, DTS Virtual:X, DTS-ES, DTS-HD Express, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X, DTS:X Pro |
| Dolby Compatibility | Dolby Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Dual Mono, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIz, Dolby Surround, Dolby TrueHD |
| Wi-Fi | No |
| Bluetooth | No |
| Power I/O | 1x IEC C14 (100 to 240 VAC ) Input |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Certifications | FCC, CE, RoHS, CANICES-3 |
| Rack Form Factor | 2 RU |
| Dimensions | 17.2 x 15.7 x 3.5" / 436 x 400 x 88mm |
