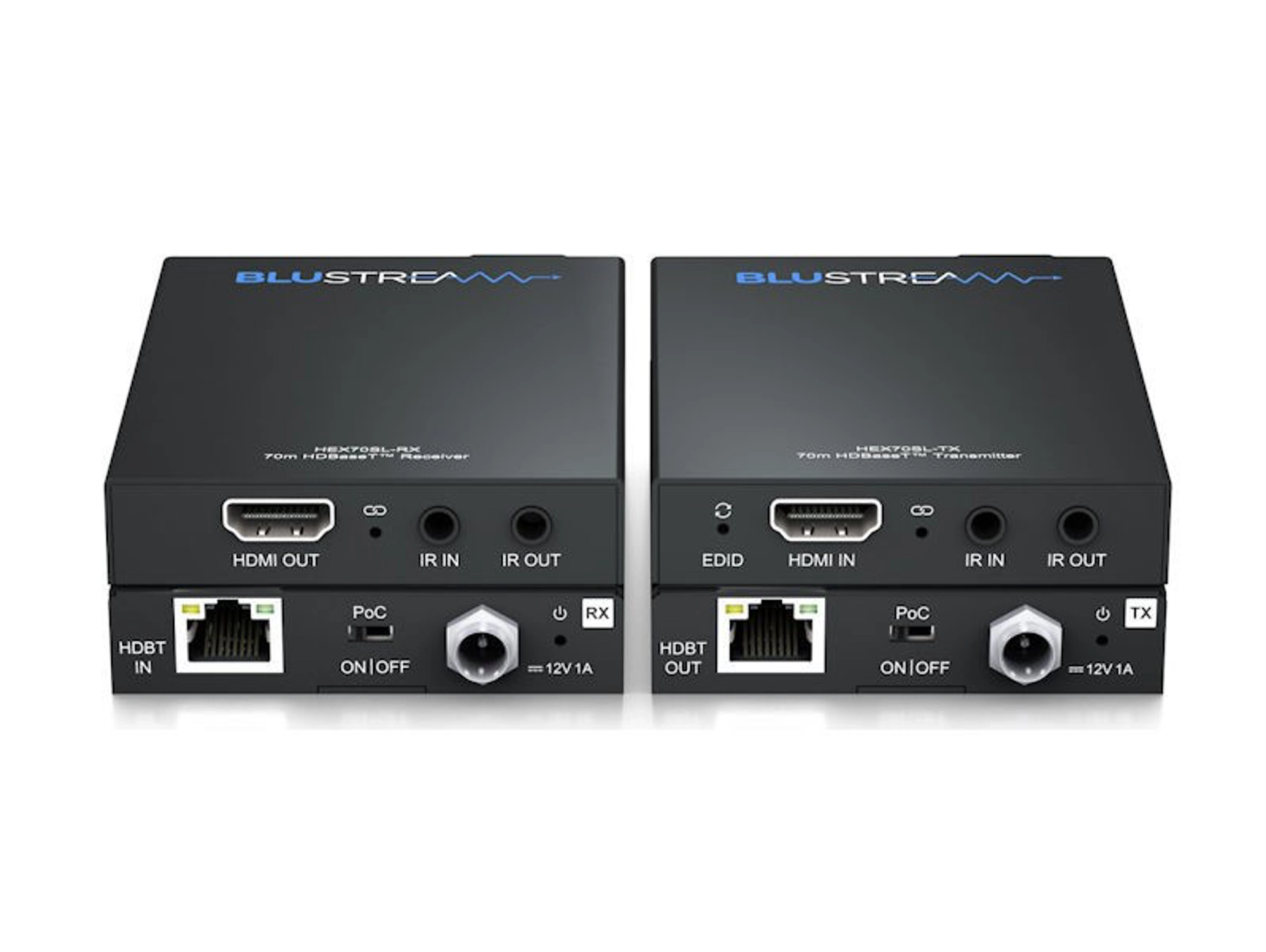

Blustream HEX70SL-KIT

Slimline HDBaseT™ Extender Set - 70m

HEX70SL-KIT

The HEX70SL-KIT 4K HDBaseT™ extender set offers market leading features in a slimline chassis. The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.

HEX70SL-TX:

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• EDID: Pin hole button

HEX70SL-RX:

• Video Input Connectors: 1 x HDBaseT™ RJ45 connector
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack

Power Supply: 12V/1A DC

• Dimensions: 106mm x 73mm x 16mm (L x W x H)
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

•  Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
•  Enhanced slimline chassis
•  Extends HDMI 1080p up to a distance of 70m over a single CAT cable
•  Supports 4K UHD video up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
•  Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
•  Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
•  Bi-directional IR pass-through
•  Supplied with Blustream IR receiver and emitter
•  Supports Bi-directional PoC to power extenders from either transmitter or receiver end
•  HDCP 2.2 compliant with Smart EDID management
