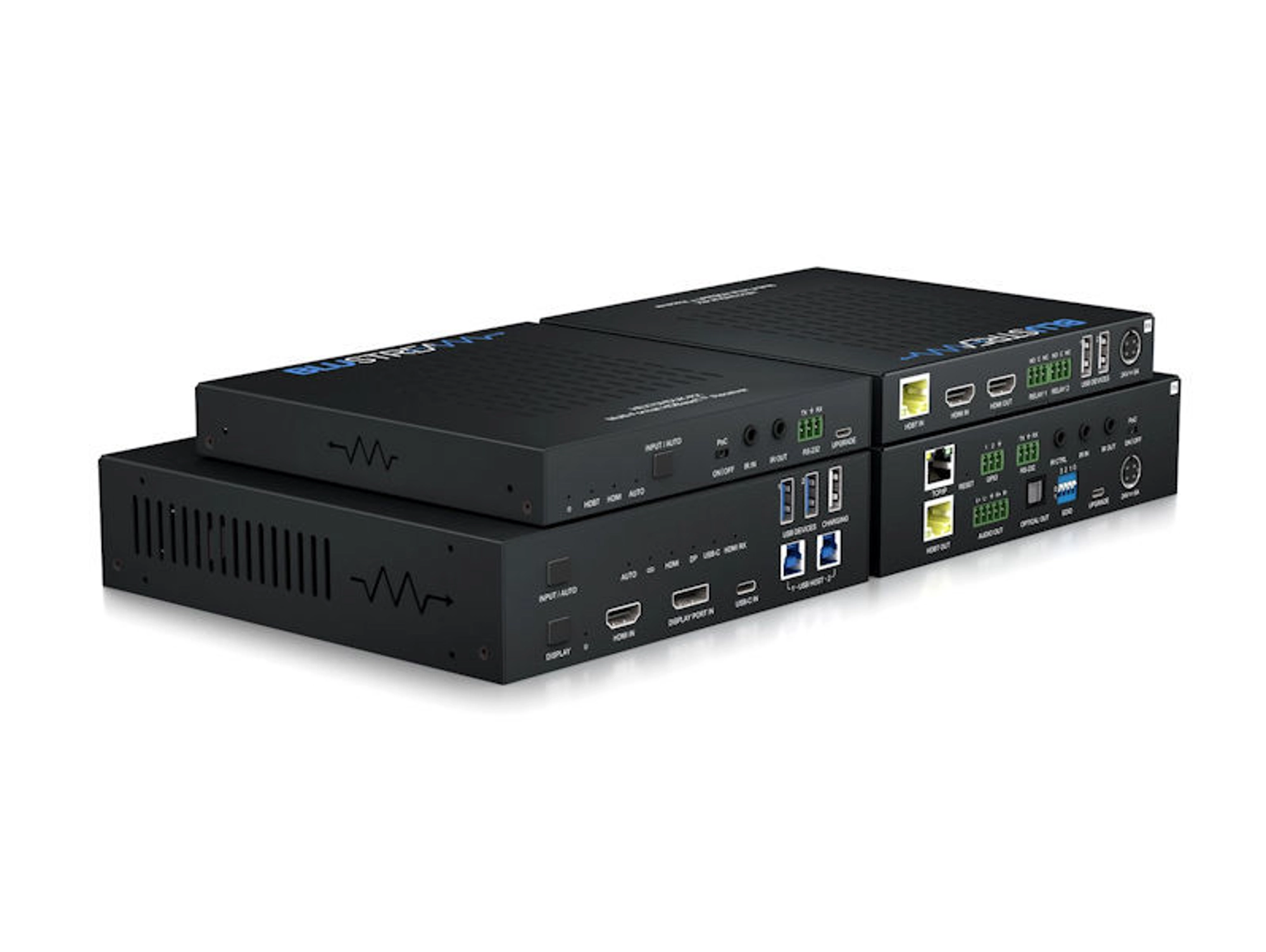

Blustream HEX70HDUK-KIT

Multi Format HDBaseT™ CSC Extender Set

HEX70HDUK-KIT

The HEX70HDUK-KIT extender set is an industry leading HDMI2.0 4K 60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ multi-format solution utilizing CSC technology to deliver HDMI, USB-C and DisplayPort™ up to lengths of 40m (70m at 1080p) over a single CAT cable.

The HEX70HDUK-KIT provides enhanced features including USB 2.0 extension, local HDMI input on the HDBaseT™ Receiver for additional source input, web-GUI for control and configuration, auto display control, audio breakout and bi-directional IR pass-through.

The HEX70HDUK-KIT also features control via front panel, IR, RS-232 and TCP/IP, PoC (Power over Cable), and advanced EDID and HDCP management.

HEX70HDUK-TX:

•  Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort™
•  Video Output Connectors: 1 x HDBaseT™ RJ45 connector
•  RS-232 Serial Port: 1 x 3-Pin Phoenix connector
•  TCP/IP Control: 1 x RJ45, female
•  IR Input Ports: 2 x 3.5mm stereo jack
•  IR Output Ports: 1 x 3.5mm mono jack
•  USB Ports: 3 x USB Type-A (1 x for charging only), 2 x USB Type-B
•  EDID: 4-pin DIP switch
•  Product Upgrade: 1 x Micro USB, female
•  Local Power Input: 1 x 24V/5A 4-pin DIN connector
•  Casing Dimensions (W x H x D): 183mm x 44mm x 173mm

HEX70HDUK-RX:

•  Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector
•  Video Output Connectors: 1 x HDMI Type A, 19-pin, female
•  RS-232 Serial Port: 1 x 3-pin Phoenix connector
•  Relay Control: 2 x 3-pin Phoenix connector
•  IR Input Ports: 1 x 3.5mm stereo jack
•  IR Output Ports: 1 x 3.5mm mono jack
•  USB Ports: 2 x USB Type-A
•  EDID: 4-pin DIP switch
•  Product Upgrade: 1 x Micro USB, female
•  Local Power Input: 1 x 24V/5A 4-pin DIN connector
• Casing Dimensions (W x H x D): 155mm x 24mm x 155mm

•  Shipping Weight: 3.35kg
•  Power Supply: 24V/5A 4-pin DIN connector
•  Operating Temperature: 32°F to 104°F (-5°C to +55°C)
•  Storage Temperature: -4°F to 140°F (-25°C to +70°C

•  Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
•  Advanced Color Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
•  Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ Transmitter with manual or auto source selection
•  Features 1 x local HDMI input on the HDBaseT™ Receiver for connection of a source local to the display
•  Supports 4K 60Hz 4:4:4 UHD video up to 40m
•  Extends HDMI 1080p up to a distance of 70m over single CAT cable
•  Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
•  Supports USB Type C up to 4K UHD 60Hz 4:4:4 DP1.2 with 60W charging capability*
•  Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4 DP1.2
•  Features 2 x USB-Type A devices (RX - peripherals), 2 x USB-Type A devices (TX - peripherals) and 2 x USB Type-B (TX - host source specific) that support a combined data transmission bandwidth of up to 480Mbps
•  USB Type-A connections support charging of devices up to 500mA when there is an active connection to a Host device
•  Independent USB Type-A connection to support charging only of devices up to 5V 2A
•  Audio breakout to analog L/R audio and Optical digital (S/PDIF) outputs concurrently**
•  Bi-directional IR pass-through
•  Auto display on/off feature allowing control of display at the HDBaseT™ Receiver via CEC or RS-232
•  Web interface module for control and configuration of HEX70HDUK-KIT
•  Control via front panel, IR, RS-232 and TCP/IP
•  Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
•  Advanced EDID ad HDCP management

*USB-C video support is limited to 4K 60HZ 4:2:0 when charging feature is activated by the source device

**Analog audio breakout supports 2ch PCM only
