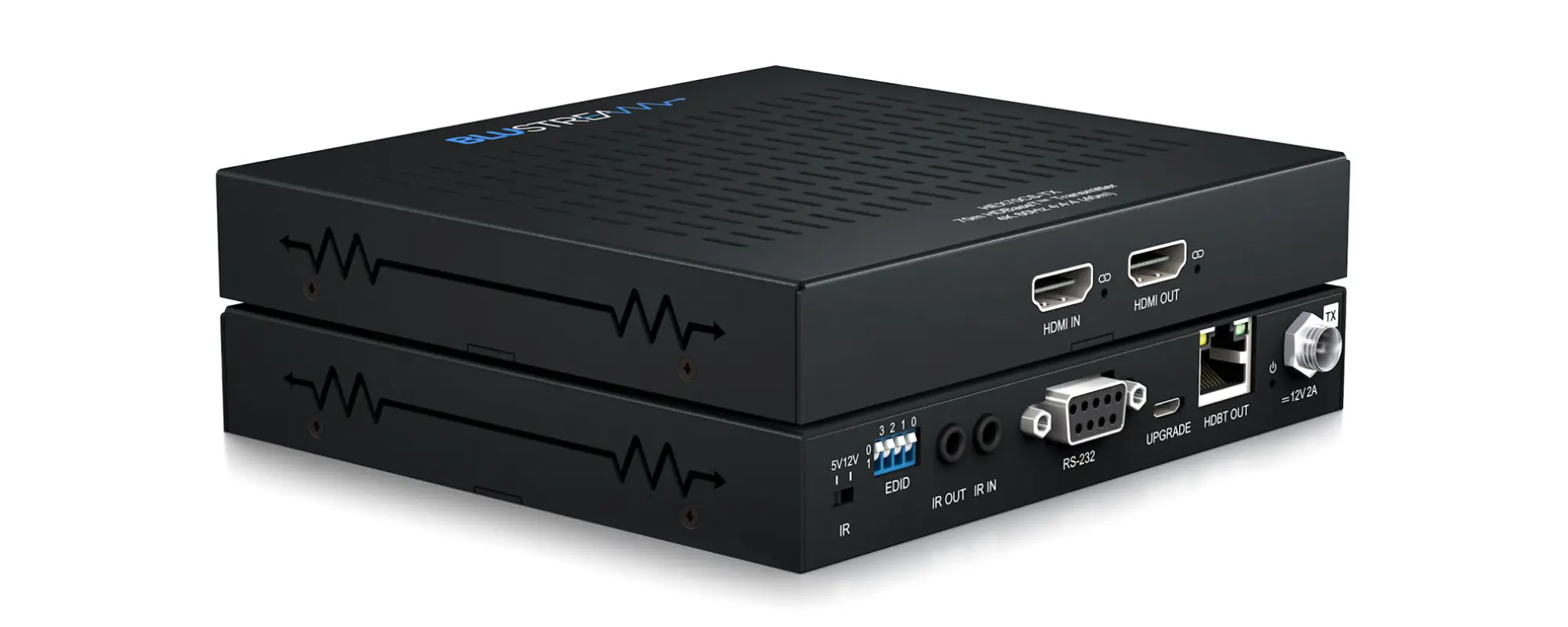

Blustream HEX70CS-TX

HDBaseT™ Transmitter - 70m

HEX70CS-TX

Our HEX70CS-TX HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ transmitter offers market leading features and outstanding value utilizing CSC technology with video down conversion.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 70m (4K to 40m) and includes a HDMI loop-out for integrating local displays or cascading to multiple devices.

• Video Input Connectors: 1 x HDMI Type A, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female
• RS-232 Serial Port: 1 x DB-9, female
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• EDID DIP Switch: 4-pin
• Power Supply: 12V/2A DC, screw type connector
• Power Consumption: 12.7W
• Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
• Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
• Ind. Extender Weight: 0.35kg (excluding accessories)
• Shipping Weight: 1.4kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Mounting Kit included

•  Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
•  Advanced Color Space Conversion (CSC)
•  Supports HDMI 2.0 18Gbps specification including HDR
•  Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
•  Extends HDMI 1080p video up to 70m
•  Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
•  Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
•  Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
•  Supports bi-directional RS-232 pass-through
•  Supports bi-directional IR pass-through
•  Supports bi-directional IR pass-through with switchable 5V/12V IR hardware support
•  HDCP 2.2 support
