Blustream HEX70CS-RX

HDBaseT™ CSC Receiver - 70m

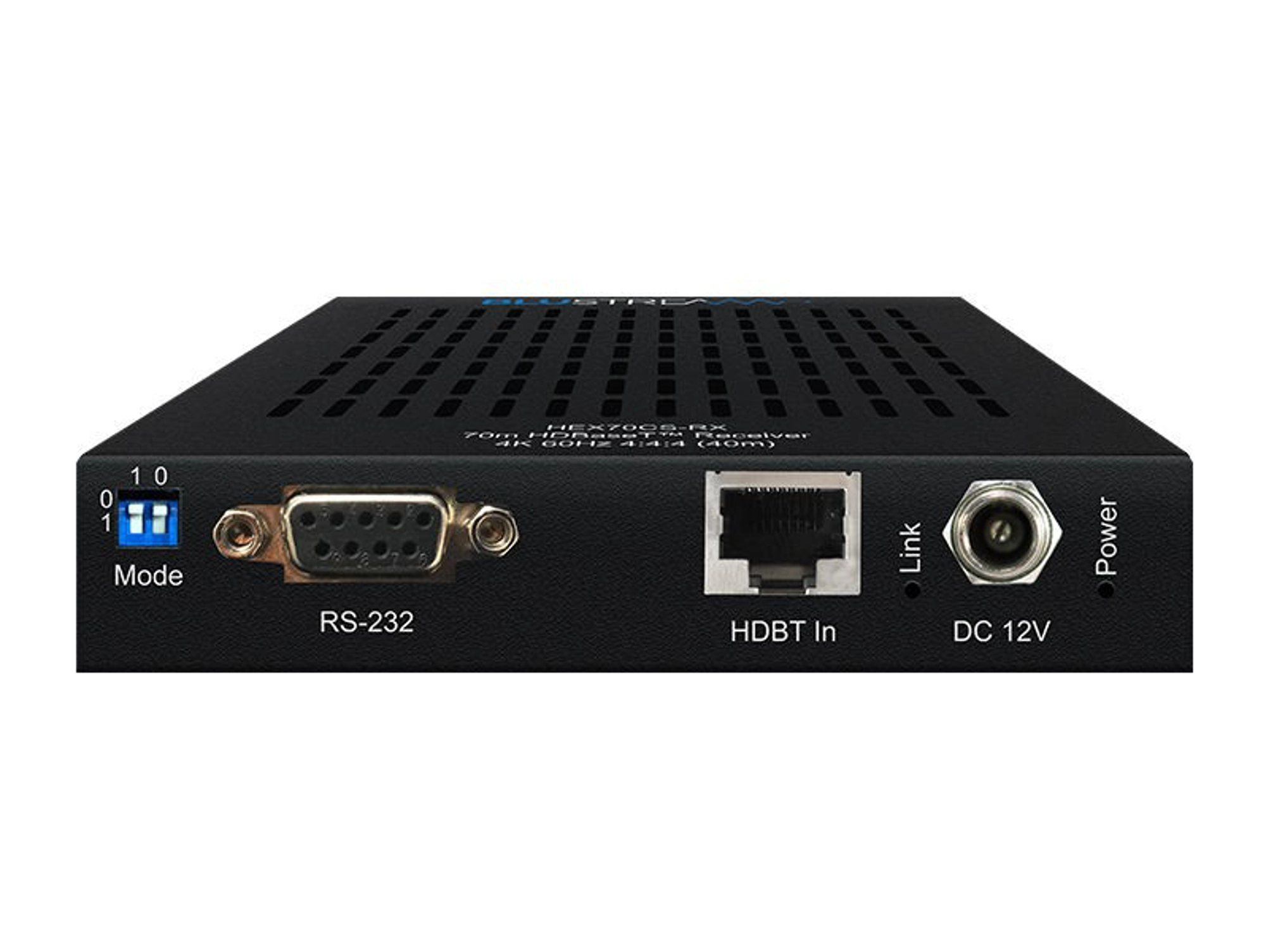

HEX70CS-RX

Our HEX70CS-RX HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ receiver offers market leading features and outstanding value utilizing CSC technology.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 70m (4K 40m).

The receiver features simultaneous analog stereo and digital coax audio breakout.

• Audio Output Connectors: 1 x RCA (S/PDIF) & 2 x Analog RCA (Left / Right)
• IR Output Ports: 1 x 3.5mm mono jack
• IR Input Ports: 1 x 3.5mm stereo jack
• RS-232 Serial Port: 1 x DB-9 female
• Video Output Connectors: 1 x HDMI Type A, female
• Video Input Connectors: 1 x HDBaseT™ RJ45 connector
• Power Supply: 12V/2A DC, screw type connector (not supplied)
• Power Consumption: 5.6W
• Unit Dimensions (W x D x H): 113 x 124 x 22mm (without connections)
• Unit Dimensions (W x D x H): 113 x 138 x 22mm (with connections)
• Unit Weight: 0.35kg (excluding accessories)
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Mounting Kit included

•  Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
•  Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
•  Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
•  Extends HDMI 1080p video up to 70m
•  Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
•  Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
•  HDMI re-clocking to help solve HDMI, HDCP, compatibility and handshaking issues
•  HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently
•  Supports bi-directional RS-232 pass-through
•  Supports bi-directional IR pass-through
•  Advanced EDID management
•  HDCP 2.2 compliant
