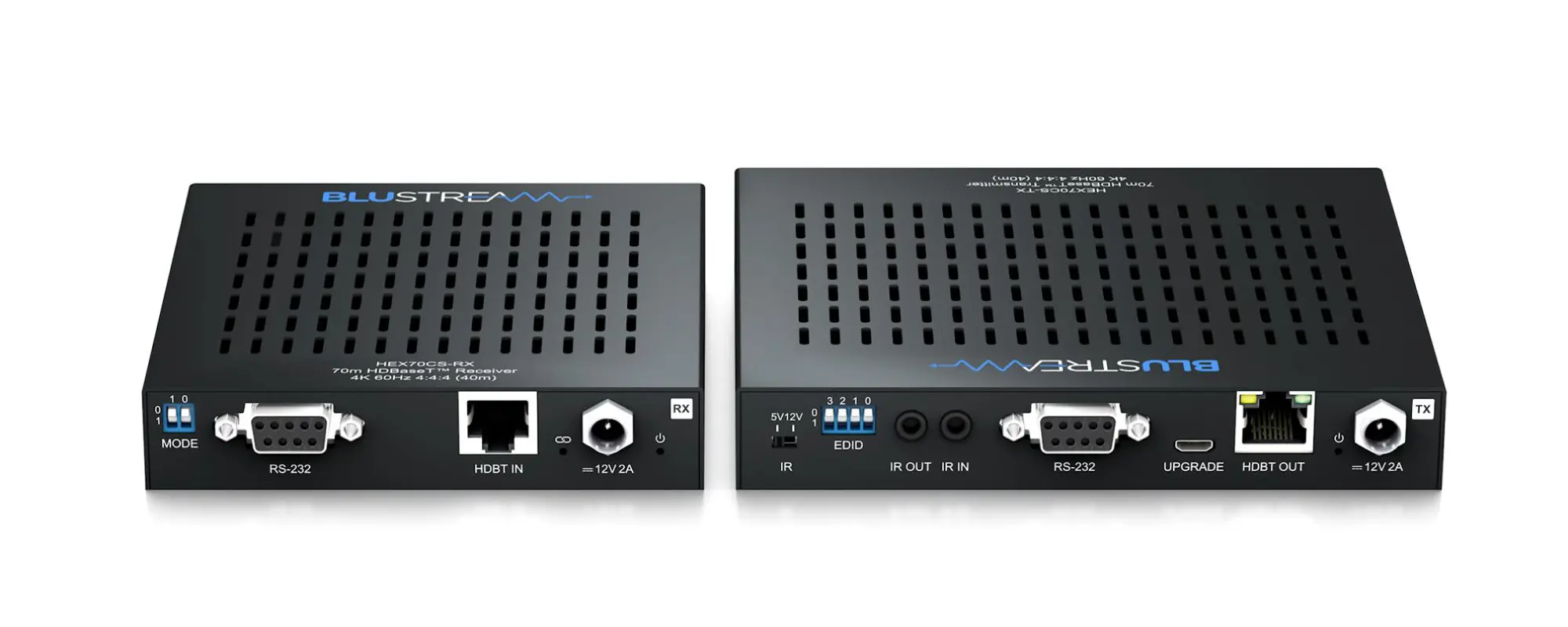

Blustream HEX70CS-KIT

HDBaseT™ CSC Extender Set - 70m

HEX70CS-KIT

Our HEX70CS-KIT HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ extender set offers market leading features and outstanding value utilizing CSC technology with video down conversion.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 70m (4K to 40m). The transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The receiver features simultaneous analog stereo and digital coax audio breakout.

HEX70CS-TX:

•  Video Input Connectors: 1 x HDMI Type A, female
•  Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female
•  RS-232 Serial Port: 1 x DB-9 female
•  IR Input Ports: 1 x 3.5mm stereo jack
•  IR Output Ports: 1 x 3.5mm mono jack
•  EDID DIP Switch: 4-pin

 HEX70CS-RX:

•  Video Input Connectors: 1 x HDBaseT™ RJ45 connector
•  Video Output Connectors: 1 x HDMI Type A, female
•  RS-232 Serial Port: 1 x DB-9 female
•  IR Input Ports: 1 x 3.5mm stereo jack
•  IR Output Ports: 1 x 3.5mm mono jack
•  Audio Output Connectors: 1 x RCA (S/PDIF) & 2 x Analog RCA (Left /Right)

•  Power Supply: 12V/2A DC, screw type connector
•  Power Consumption: 12.7W
•  Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
•  Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
•  Receiver Dimensions (W x D x H): 113 x 124 x 22mm (without connections)
•  Receiver Dimensions (W x D x H): 113 x 138 x 22mm (with connections)
• Ind. Extender Weight: 0.35kg (excluding accessories)
•  Shipping Weight: 1.4kg
•  Operating Temperature: 32°F to 104°F (0°C to 40°C)
•  Storage Temperature: -4°F to 140°F (-20°C to 60°C)
•  Mounting Kits included

•  Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
•  Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
•  Video down-conversion on HDMI receiver output allows a display only capable of supporting lower video resolutions (4K @ 60Hz 4:2:0 or 1080p) to receive the native 4K @ 60Hz 4:4:4 or 4K @ 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the transmitter HDMI loop out.
•  Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
•  Extends HDMI 1080p video up to 70m
•  Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
•  Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
•  Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
•  HDMI re-clocking on the HDBaseT™ receiver to help solve HDMI, HDCP, compatibility and handshaking issues
•  HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently
•  Supports bi-directional RS-232 pass-through
•  Supports bi-directional IR pass-through
•  Supplied with Blustream 5V IR receiver and emitter
•  Advanced EDID management
•  HDCP 2.2 compliant
