Blustream CAT100EARC

eARC/ARC Over CAT

CAT100EARC

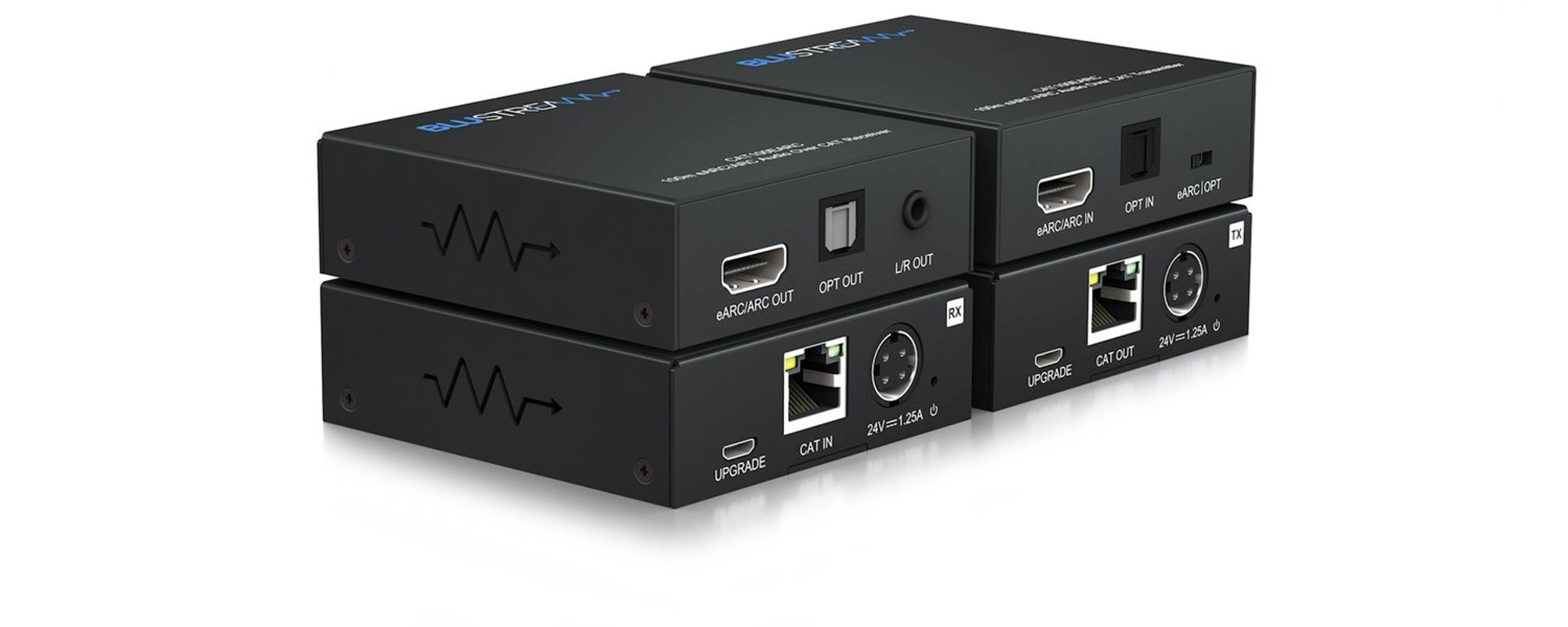

Our CAT100EARC Audio over CAT cable extender transmits HDMI eARC/ARC or optical digital audio signals up to a distance of 200m (eARC/ARC signals up to 100m).

This plug and play device supports CEC pass-through when HDMI eARC/ARC audio is selected and features a built in DAC to convert either of the inputs to a stereo left / right audio output.

CAT100EARC-TX:

• Audio Input Connectors: 1x Optical (S/PDIF) & 1x HDMI Type A
• Output Connectors: 1x RJ45
• Firmware Upgrade: 1x Micro-USB
• Dimensions (W x H x D): 74mm x 80mm x 24mm

CAT100EARC-RX:

• Input Connectors: 1x RJ45 & 5V/1A DC
• Output Connectors: 1x Optical (SPDIF), 1x HDMI Type A & 1x Analog audio L/R (3.5mm stereo Jack)
• Firmware Upgrade: 1x Micro-USB
• Dimensions (W x H x D): 74mm x 80mm x 24mm

• Shipping Weight: 0.7kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature : -4°F to 140°F (-25°C to +70°C)
• Power Supply: 24V/1.25A DC

•  Extend either eARC/ARC or optical digital audio signals over a single CAT cable*
•  CAT100EARC supports eARC/ARC distribution distances of up to 100m
•  CAT100EARC supports Optical audio distribution distances of up to 200m
•  Built in DAC (Digital to Analogue audio Converter) converts either HDMI eARC/ARC or optical digital to analogue stereo left/right audio output (2ch PCM only)*
•  Supports CEC pass-through when HDMI eARC/ARC mode selected
•  Supports the following audio formats:
•   - eARC: PCM 2.0/5.1/7.1ch, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos
•   - ARC: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
•   - Optical: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
•  Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver

*Selection between HDMI eARC/ARC or Optical digital audio via dipswitch on the TX
