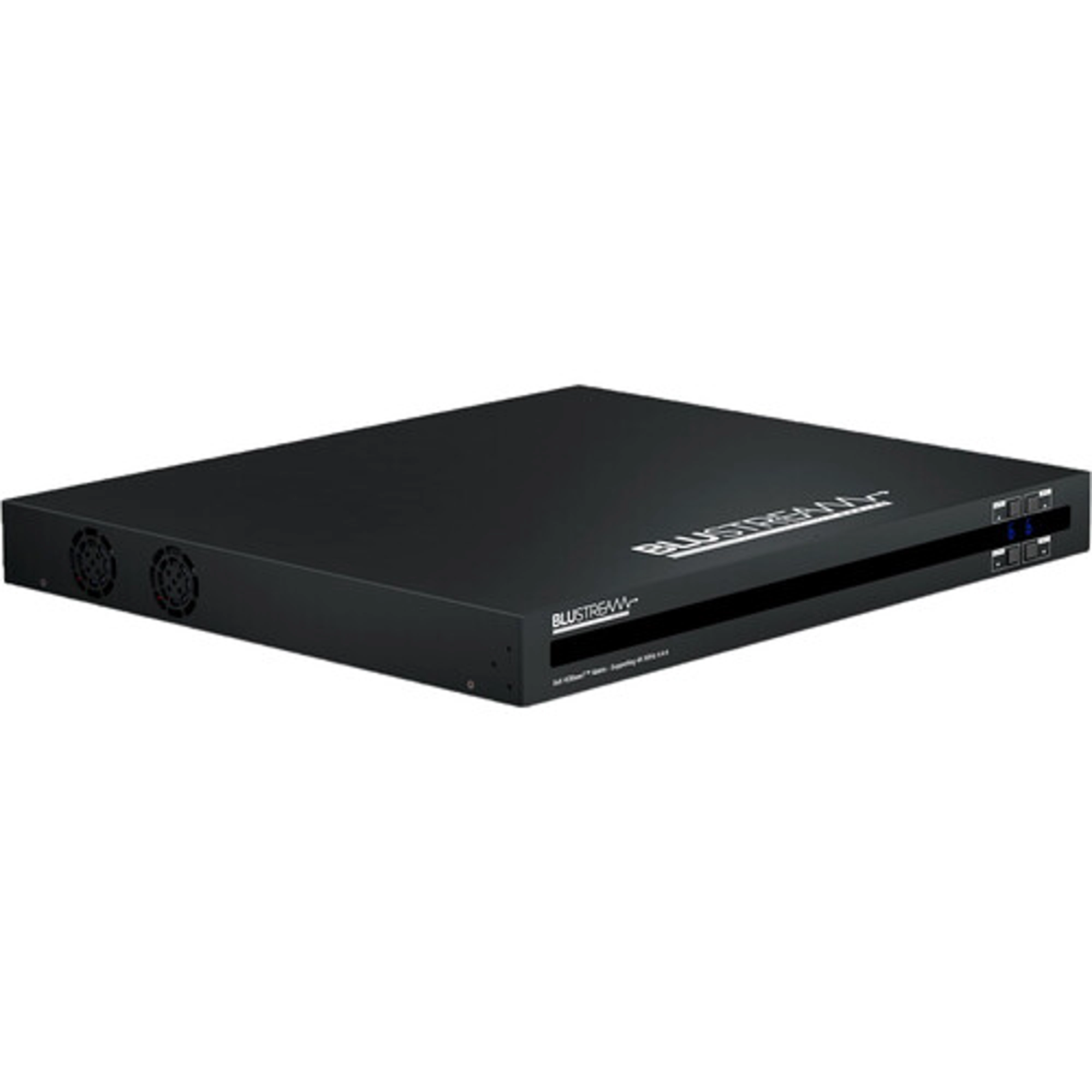

Blustream C66CS
SKU: BLU-C66CS
MPN: C66CS
Description
BLUSTREAM Contractor HDBaseT 6x6 Matrix
Send to a friend!
SKU: BLU-C66CS
MPN: C66CS
BLUSTREAM Contractor HDBaseT 6x6 Matrix
Send to a friend!
| Switching Type | IR Remote, Pushbutton, Software |
| Processing Resolution | UHD 4K at 60 |
| Color Processing | 4:4:44:2:0 |
| Video Inputs | 6x HDMI (2.0) Female |
| Input Video Format | HDMI (4:4:4/4:2:0)UHD 4K up to 60 fps |
| Embedded Audio Input | HDMI: 8-Channel (per Input) |
| Video Outputs | 6x RJ45 (HDBaseT) Female1x HDMI (2.0) Female |
| Output Video Format | HDMI / RJ45 (4:4:4/4:2:0)UHD 4K up to 60 fps |
| Embedded Audio Output | RJ45: 8-Channel (per Output)HDMI: 8-Channel |
| Other I/O | 1x DE-9/DB-9 RS-232 Input/Output1x RJ45 Control Input/Output7x 1/8" / 3.5 mm IR Input6x 1/8" / 3.5 mm IR Output |
| HDCP Support | Yes, Version 2.2 |
| DTS Compatibility | DTS, DTS 96/24, DTS Digital Surround, DTS Express, DTS Neo:6, DTS Neural:X, DTS Virtual:X, DTS-ES, DTS-HD Express, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X, DTS:X Pro |
| Dolby Compatibility | Dolby Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Dual Mono, Dolby Pro Logic, Dolby Pro Logic II, Dolby Pro Logic IIz, Dolby Surround, Dolby TrueHD |
| Wi-Fi | No |
| Bluetooth | No |
| Power I/O | 1x IEC C14 (100 to 240 VAC ) Input |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Certifications | FCC, CE, RoHS, CANICES-3 |
| Rack Form Factor | 1 RU |
| Dimensions | 17.2 x 14.8 x 1.7" / 437 x 377 x 44mm |
| Package Weight | 16.275 lb |
| Box Dimensions (LxWxH) | 22.3 x 19.2 x 5.5" |
