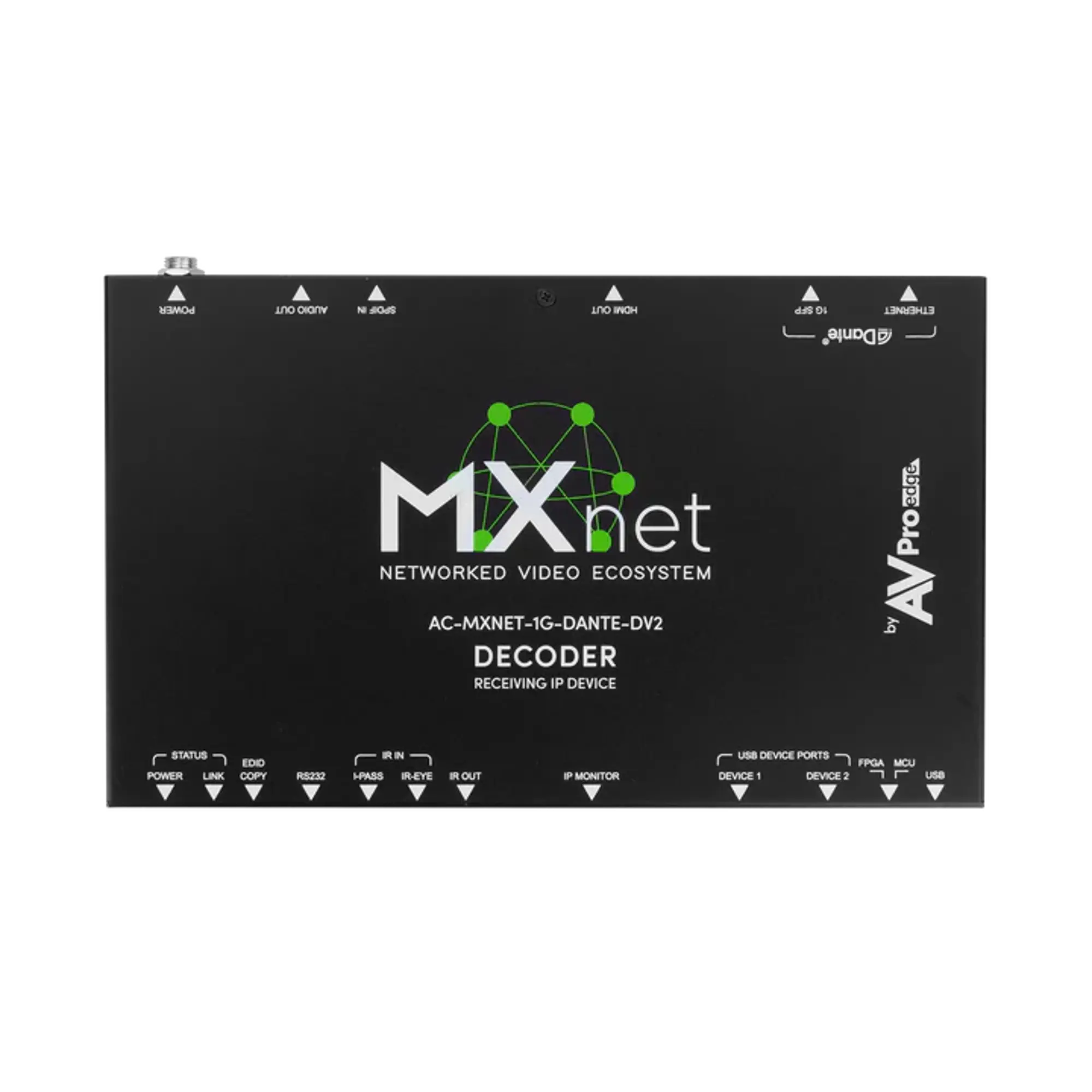

AVPro Edge AC-MXNET-1G-DANTE-DV2

MXnet 1G Evolution II Decoder with Dante

AC-MXNET-1G-DANTE-DV2

AC-MXNET-1G-DANTE-DV2 provides a stream break-out point to pass Dante

signals to other Dante-enabled devices, such as Dante-capable DSP Matrix amplifiers or self-powered Dante-equipped speakers. The MXnet Evolution II platform provides system designers with flexible endpoint options while simultaneously consolidating wiring paths.

Installations that systematically deploy Dante audio but segregate it to an independent network can now simplify long-haul transport cabling into single destination endpoint routes. Encoded Dante streams are ferried from AC-MXNET-1G-DANTE-EV2 encoders to any AC-MXNET-1G-DANTE-DV2 decoder endpoint, using these as break-out bridges to leapfrog encoded signals closer to additional Dante devices. For example, Dante-enabled amplifiers can be strategically located physically closer to the speaker systems that they will power, potentially overcoming Audinates 100-meter Category cable distance threshold for Dante while also minimizing the lengths of wire connecting passive analog speakers. Dante-equipped self-amplified speakers may also take advantage of merged centralized stream routes. Imaginative creativity will quickly turn into material and labor savings.

The AC-MXNET-1G-DANTE-DV2 retains the cool-running, energy-efficient, chip-top fan-free design characteristics of AVPro Edges MXNET-1G-EVO II series by incorporating Dante I/O software into the operating system chipset, which eliminates the thermal increase from the active device daughter board in previous implementations of Dante across the MXnet ecosystem. The AC-MXNET-1G-DANTE-DV2 and its companion encoder, the AC-MXNET-1G-DANTE-EV2, each securely fit into the same accessory rack holder as standard MXnet EVO II encoders and decoders.

Proprietary Motion JPEG-based CODEC MXnet Evolution II incorporates a proprietary video algorithm that carefully optimizes compression rates per multicast packet size. Genlock is supported, syncing a video source by frame rate to Decoders comprising a video wall for a simul-sync, tear-free appearance.

Native 4K/60 fps Support  MXnet Evolution II enables 4K/60 fps 4:4:4 RGB / YCbCr, 10- and 12-bit natively or with dynamic metadata. When not lossless, the advanced encoding/decoding engine applies a limited, ultra-light compression, composing an artifact-free image upon decoding, including Dolby Vision and HDR10+ content.

High Bitrate Multi-channel Audio Support  3D immersive audio CODECs such as Dolby Atmos and DTS:X for IMAX Enhanced are now supported.

USB and KVM Support Each Decoder unit has two USB ports. You may also connect a USB hub if needed to expand the number of USB ports. Connect and route any USB signals back to the Encoder Host. Use the MXnet Mentor software to specify the Host Encoder, and the upstream USB device connected the selected Decoder.

External Device Light Control - Light emission from an AC-MXNET-1G-DANTE-DV2 may be controlled via MXnet Mentor. Any status light, including network link LEDs and the OLED Data Window, may be optionally disabled to prevent unwanted distraction, enabling discreet placement where desired. Device lights may also be continuously flashed for high visibility when troubleshooting.

.

• Dante audio Pass-through/Break-out Bridge
• High bitrate 3D Immersive Audio Compatible
• Optimized Video Compression for Artifact-free Images
• Support for HDR10, HDR10+ and Dolby Vision
• USB and KVM Support
