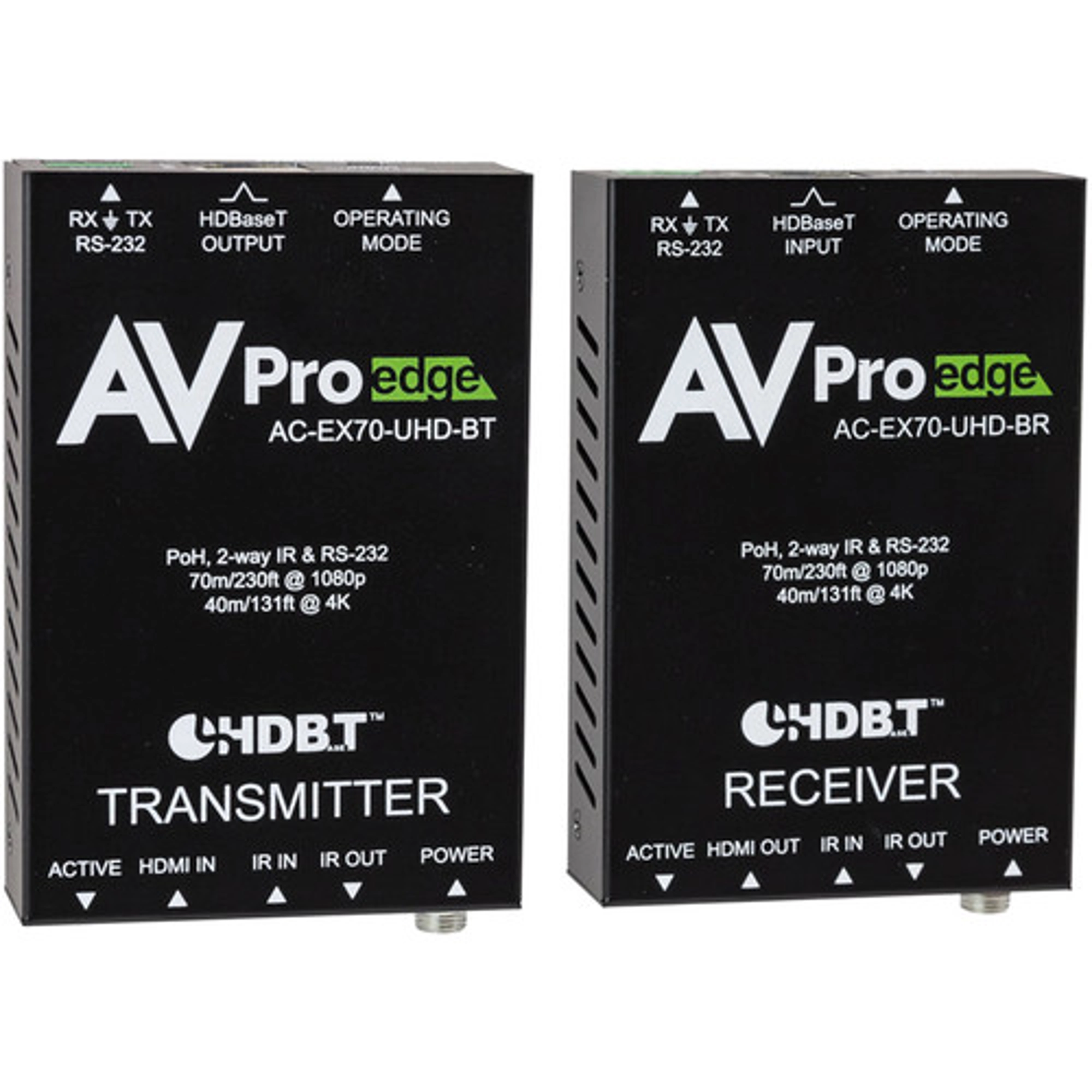

AVPro Edge AC-EX70-UHD-BKT

70M 10Gbps Basic HDBaseT Extender Kit

AC-EX70-UHD-BKT

AVPro Edge's AC-EX70-UHD-BKT is a low-feature HDMI Extender kit not for use as a transmitter or receiver for any matrix switch.

The AC-EX70-UHD-BKT can pass 1080p HDMI signals 70 meters and 4K HDMI signals 40 meters over readily available CAT-6a cable using HDBaseT technology. This kit is straightforward to use and install and works best with SDR signals

**These MUST be used as a kit not for use as a transmitter or receiver for any matrix switch.**

Extend 4K HDMI over Category Cable: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. CAT 6A cables are available widely and can be reworked easily by the installer or end-user.

Distance: By using AC-EX70-UHD-BKT, the transmission distance for HD 1080P is up to 70 meters (230) and UHD 4K resolution the distance reaches an impressive 40 meters (115).

Control: IR & RS-232 are bi-directional and can control the sources from the sinks or vice versa, this model doesn't carry I-Pass, for that feature check out our AC-EX70-UHD-KIT.

Bi-Directional Power: PoH (Power over HDBaseT) function is intended to power RX from the TX or TX from the RX, this gives the installer many options when a power outlet can be scarce.

LIMITATIONS:

The AC-EX70-UHD-BKT from AVPro Edge is designed to give a very affordable option in HDMI extension. This is our most basic HDMI extender, meaning it doesnt have the features you would find in our other models. Ethernet, ARC, eARC, USB, Audio Extraction, I-Pass IR, and longer distances with 4K.

**These extenders MUST be used as a kit (Tx and Rx). They are not for use as a transmitter or receiver for any matrix switch.**

Video:

• Video Resolutions Up to 4K 60Hz 4:2:0 & 4K30 4:4:4
• VESA Resolutions Up to DCI 4k (4096x2160)
• Color SpaceYUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
• Chroma Subsampling 4:4:4, 4:2:2, 4:2:0 Supported
• Deep ColorUp to 16 bit (1080) Up to 12 bit (4K)

Audio:

• Audio Formats Supported HDMI PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos

Distance:

• HDBaseT Distance (4K & HDR) 40 Meters (131 Feet) (Cat 6a)
• HDBaseT Distance (Full HD) 70 Meters (230 Feet) (Cat 6a)
• HDMI Lead In/Out Up to 50 Feet (Using Bullet Train HDMI)
• HDMI Lead In/Out (W/ AOC Cable) Up to 130 Feet (Using Bullet Train AOC)

Other:

• Bandwidth 10.2 Gbps
• HDCP HDCP 2.3 and Earlier

Ports:

• HDMI (TX & RX) Type A
• HDBaseT RJ45 w/ PoH for HDBaseT Receivers
• IR RX 3.5mm Stereo (3 Conductor)
• RS2323 Pin Terminal Block
• Power (TX & RX) Barrel Type

Environmental:

• Operating Temperature 23 to 125°F (-5 to 51°C)
• Storage Temperature -4 to 140°F (-20 to 60°C)
• Humidity Range 5-90% RH (No Condensation)

Power:

• Power Consumption (Total) 9 Watts Max
• Power Supply - Matrix Input: AC 100-240V ~ 50/60Hz Output: DC 12V 2A

Dimensions:

• Dimensions (Unit Only Height/Depth/Width)mm: 105 x 71 x 25 inch: 4.14 x 2.82 x 0.98
• Dimensions (Packaged Height/Depth/Width)mm: 140 x 193 x 87 inch: 5.5 x 7.6 x 3.4
• Weight (Unit) 0.35 lbs (0.16 kg)
• Weight (Packaged) 0.6 lbs (0.27 KG)

*Specifications subject to change without notice. Mass & dimensions are approximate

• HDMI 1.4
• 4K30 4:4:4
• IR and RS-232 Control
• Not for use as a transmitter or receiver for any matrix switch
