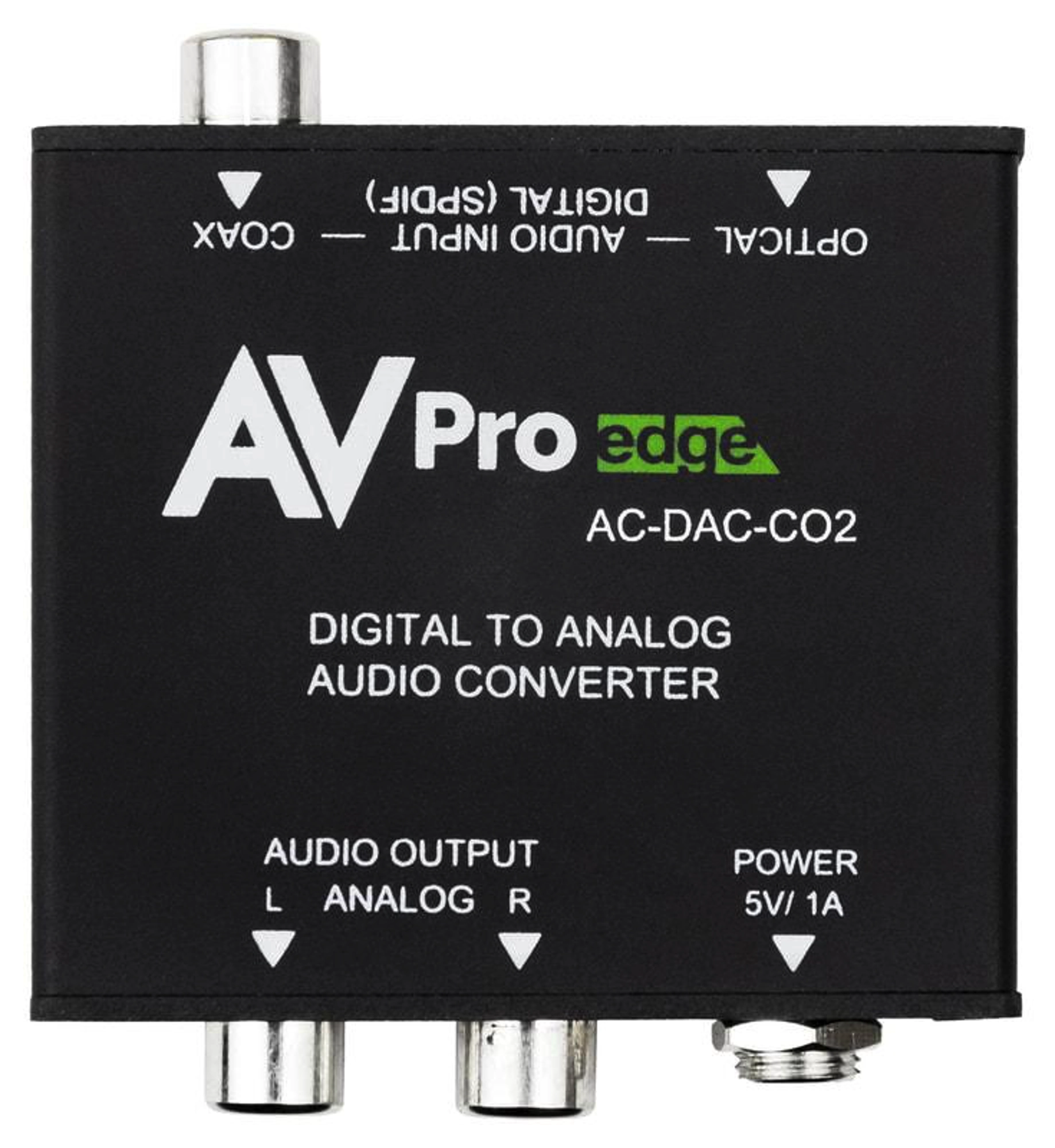

AVPro Edge AC-DAC-CO2

Digital to Analog Audio Converter

AC-DAC-CO2

AVPro Edge's Digital to Analog Audio Converter is an easy-to-use product that converts Coaxial or Optical audio signals into analog Stereo (L/R) audio. It can be easily switched between either Coaxial or Optical inputs. Its compact, elegant design and simple LED input status make it easier for users to connect up and use instantly.

• Input Ports 1TOSLINK (S/PDIF Audio)
• 1RCA (S/PDIF Audio)
• Output Ports 2RCA (Stereo Audio)
• Input Audio Format LPCM 2.0
• Output Audio Format Analog 2.0
• Input Sampling Rates 32kHz, 44.1kHz, 48k Hz, 88.2kHz, 96kHz, 176.4kHz &192kHz
• Output Level 2Vrms
• Output Impedance 600Ω
• ESD Protection Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge)
• Weight 30g
• Chassis Material Plastic
• Operating Temperature 0C - 40C/32F - 104F
• Storage Temperature 20C - 60C/4F - 140F
• Relative Humidity20 - 90% RH (Non-condensing)
• Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)
• Power Consumption 0.74W
• Chassis Material Metal
• Dimensions (unit only Length/Width/Height)MM: 64 x 58.3 x 22.2 INCH: 2.52 x 2.3 x 0.87
• Dimensions (packaged Length/Width/Height)MM: 133 x 155 x 90 INCH: 5.24 x 6.1 x 3.54
• Weight (Unit) 1.14 LBS (0.7 KG)
• Weight (Packaged)0.57 (0.26 KG)

• HDTV Digital Output Conversion
• 24-Bit Conversion
• Supports S/PDIF audio at 192kHz/24-bit data for conversion to left and right analog channels
• Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)

• AVP-AC-DAC-CO2_qsg.pdf
