AVPro Edge AC-CXWP-KVM-KIT
SKU: AVP-AC-CXWP-KVM-KIT
MPN: AC-CXWP-KVM-KIT
Description
ConferX HDMI Wallplate Extender Kit Tx Rx with KVM Control ARC 18Gbps 4K60 4:4:4 USB 2.0 250Mbps Bi-Directional 2-Gang White
Send to a friend!
SKU: AVP-AC-CXWP-KVM-KIT
MPN: AC-CXWP-KVM-KIT
ConferX HDMI Wallplate Extender Kit Tx Rx with KVM Control ARC 18Gbps 4K60 4:4:4 USB 2.0 250Mbps Bi-Directional 2-Gang White
Send to a friend!
AC-CXWP-KVM-KIT

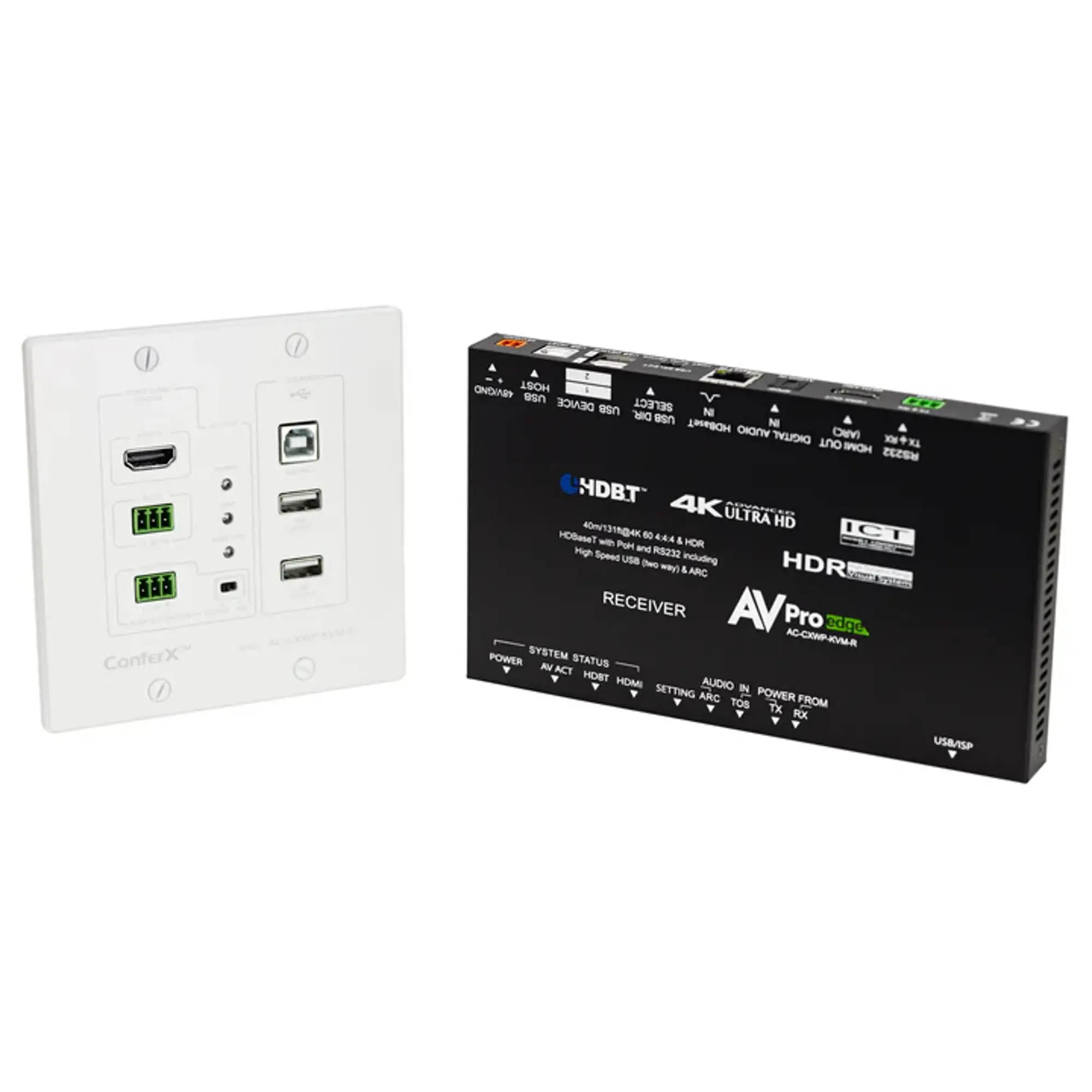

The AC-CXWP-KVM-KIT is a 4K60 4:4:4 18Gbps supported HDBaseT wall plate extender kit over single CAT UTP/STP. This device can take in any HDMI signal and transfer it long distances; simultaneously, it can send a USB 2.0 signal (bi-directionally) through the same cable. This is the ideal solution for classrooms and conference rooms to work with modern laptops and desktop computers.
Welcome to ConferX, the professional choice for video distribution solutions.
Invisible Compression Technology - ICT is a revolution in HDMI extension technology. It allows AVPro Edge Products to deliver high bandwidth 4K signals over category cable. Typically when this is done, the video is left with compression artifacts and banding. Using AVPro Edges proprietary ICT solution allows us to deliver a stable picture without degradation.
USB 2.0 and KVM Integration - The AC-CXWP-KVM-KIT supports the extension of USB signals, which may be switched and routed over the HDBaseT link along with the other AV signals and can be managed separately via a control system. USB 2.0 host and device ports are provided on both the TX and RX units, allowing you to connect a USB mouse, keyboard, microphone, or any other USB device to be connected at one unit and routed to a computer or other host at another unit.
Down Scaling - The AC-CXWP-KVM-KIT has a scaling circuit built into the transmitter. The scaler can scale 4K to 1080P. Essential when working with projectors or displays that are only 1080p.
Total EDID Management - The AC-CXWP-KVM-KIT has robust EDID control. EDID management allows you to manage the input device and request specific video resolutions and/or audio codecs. The following EDID options are available:
The EDID Copy Function allows you to copy and save from any display or projector you want to.
Audio Return Channel (ARC) - The Audio Return Channel in HDMI 1.4 and 2.0 enables a TV, via a single HDMI cable or Toslink, to send audio data upstream to an A/V receiver or surround audio controller. Our extender will continue the upstream audio to the transmitter. There it can be connected via HDMI ARC.
On-Board Troubleshooting - This unit allows you to generate a 1080P or 4k test pattern to identify external problems (source, repeater, displays, etc.). You can now be sure that your wiring is correct and get to the bottom of issues quickly should they arise without worrying if the source or sink is working correctly. Additionally, you can generate a test pattern from the Tx or the Rx to verify total system infrastructure integrity.
Video:
Audio:
USB (selectable host):
Distance:
Other:
Ports:
Environmental:
Power:
Dimensions:
*Specifications subject to change without notice. Mass & Dimensions are approximate.
40 Meters
AVPro Edge
Yes
