AVPro Edge AC-AXION-X
SKU: AVP-AC-AXION-X
MPN: AC-AXION-X
Description
AXION X Matrix Chassis Only
Send to a friend!

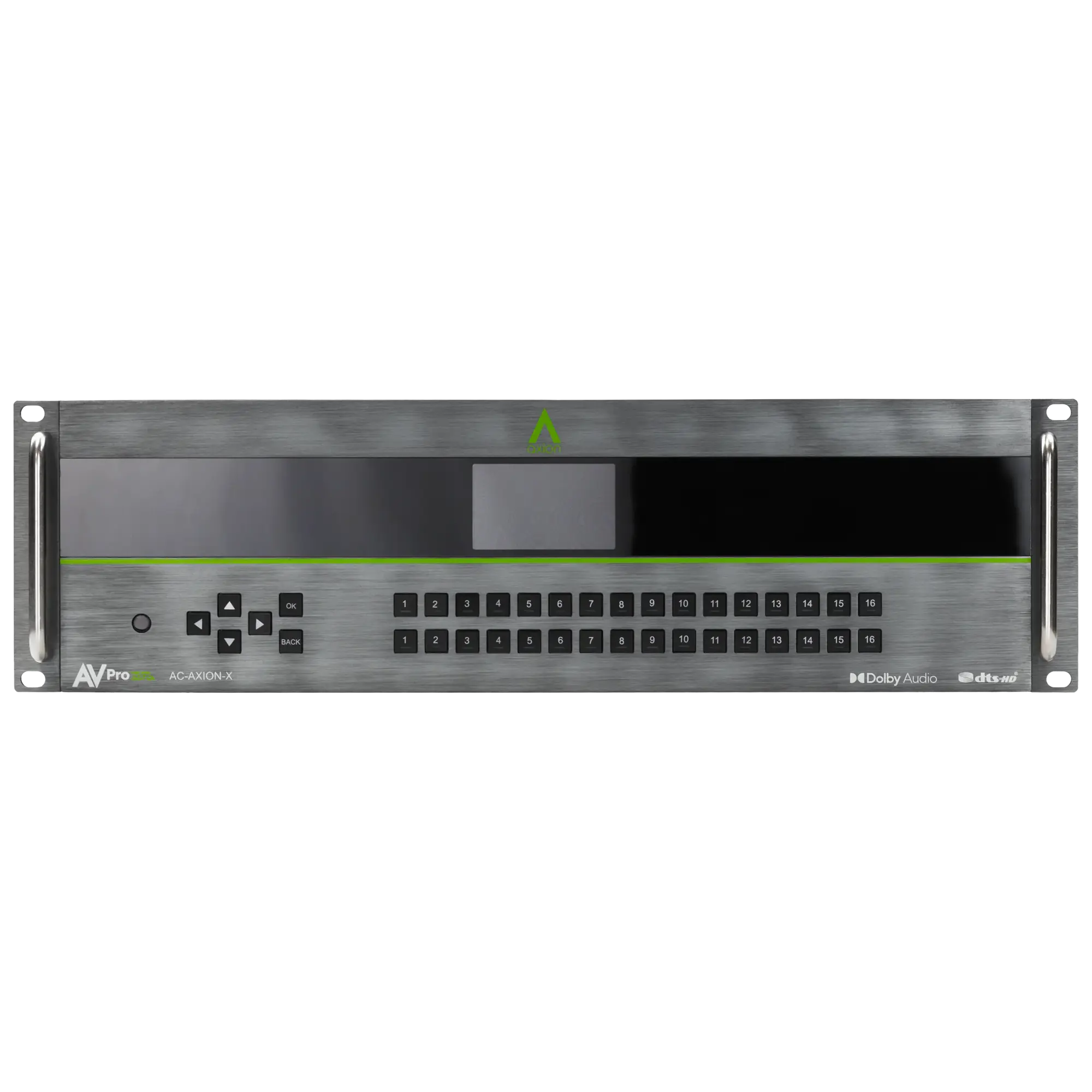

AXION X Matrix Chassis
AC-AXION-X
AXION X defines AVPro Edges expression for the current state-of-the-art in 4K matrix switchers. Featuring a chassis-based modular card architecture and custom-configurable for as many as 16 inputs by 16 outputs, AXION X is a world-class device deserving of your full attention.
Design and engineering was focused at fully addressing the needs expressed by custom integrators for a complete, synergistic, diversified product solution that would effectively manage any 4K video signal containing static or dynamic metadata, a companion high bitrate audio codec providing an immersive soundtrack, plus assorted system control signals.
AXION X is outfitted with a sophisticated suite of flexible features enabling integrators to autonomously craft input and output signal routing for audio, video, or control to meet any system requirement and to overcome unexpected on-site obstacles head-on.
How to order the AXION customizable matrix switch:
- Order the Base Chassis
- Determine the needs of the Installation
- How many Inputs? (input cards come in pairs, so you will always have an even number)
- How many Outputs? (Output cards also come in pairs)
- Will I need Audio Downmixing? How many sources will I need to downmix?
- Order Input and output cards
If you have any HDBaseT inputs or outputs, you will want to make sure you have transmitters or receivers to work alongside them.
Input Cards:
- AC-AXION-IN-AUHD: Dual 18Gbps HDMI input ports with dual HDMI loop out ports
- AC-AXION-IN-AVDM: Dual 18Gbps HDMI input ports that downmix 8+ channel audio to two-channel via the audio extraction port and dual HDMI loop out ports
- AC-AXION-IN-MCS: Dual 18Gbps HDMI input ports with dual HDMI loop out ports and MCS (Mission Critical Scaling)
- AC-AXION-IN-HDBT: Dual 18Gbps ICT HDBT input ports with a single mirrored HDMI port
- AC-AXION-IN-AUDIO: Dual RCA 2 Channel and Toslink inputs.
Output Cards:
- AC-AXION-OUT-AUHD: Dual 18Gbps HDMI output ports
- AC-AXION-OUT-MCS: Dual 18Gbps HDMI output ports with MCS (Mission Critical Scaling) and a single mirrored HDMI port
- AC-AXION-OUT-HDBT: Dual 18Gbps ICT HDBaseT output ports with a single mirrored HDMI port
Audio:
- Audio Formats Supported HDMI PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby AtmosAudio
- Formats Supported Extracted (Toslink) PCM 2 Ch, LPCM 6 Ch, LPCM 7 Ch, Dolby Digital, Dolby Digital Plus
- Audio Formats Supported Extracted (2CH Port) PCM 2 CH
- Audio Extraction Location Bind to Input, Bind to Output or Matrix (Independent)
- Audio Delay (Per Output, Extracted) Up to 630MS
Distance:
- HDBaseT Out (4K60 4:4:4 & HDR) w/ AC-EX70-444-RNE70 Meters / 230 Feet (Cat 6a)
- HDBaseT Out (1080P) w/ AC-EX70-444-RNE100 Meters / 330 Feet (Cat 6a)
- HDBaseT Out (4K60 4:2:0 Max) w/ AC-EX70-UHD-R40 Meters / 131 Feet (Cat 6a)
- HDBaseT Out (1080P) w/ AC-EX70-UHD-R70 Meters / 230 Feet (Cat 6a)
- HDMI In/Out (4K60 4:4:4) Up to 50 Feet (using Bullet Train HDMI)
- HDMI In/Out (w/ AOC Cable) (4K60 4:4:4) Up to 130 Feet (using Bullet Train AOC)
Other:
- Bandwidth HDMI18 Gbps Uncompressed
- Bandwidth HDBaseT 18 Gbps (Uses ICT above 10.2 Gbps signals)
- HDCP HDCP 2.3 and Earlier
- PoH for Receivers (No need to power receivers) Yes, all outputs
Control:
- Ports LAN, RS232, IR, Micro USB
- Drivers C4, RTI, ELAN, Crestron, URC (for more - see Drivers Page)
- LAN Web OS YES
Ports:
- HDMI Type A
- HDBaseT
- RJ45 w/ PoH for HDbaseT Receivers
- LAN RJ45 w/ Web Interface/Control
- Audio (Extracted Digital) Toslink
- Audio (Extracted Analog) 5 pin terminal block (balanced)
- IR Rx3.5mm Stereo (3 Conductor)
- RS2323 pin terminal block
Environmental:
- Operating Temperature 23 to 125°F (-5 to 51°C)
- Storage Temperature-4 to 140°F (-20 to 60°C)
- Humidity Range5-90% RH (No Condensation)
Power:
- Power Consumption (Total) 56 Watts Max
- Power Supply - MatrixInput: AC 100-240V ~ 50/60Hz
- Output: DC 48V 2A
Dimensions:
- Dimensions (Unit Only Height/Depth/Width) mm: 134.87 X 406.4 X 441.45 inch: 5.31 X 16 X 17.38
- Dimensions (Packaged Height/Depth/Width) mm: 241.3 X 571.5 X 597 inch: 9.5 X 22.5 X 23.5
- Rack Units 3U
- Weight Unit (Empty Chassis) 26.6 lbs (12.07 KG)
- Weight Packaged (Empty Chassis )33 LBS (14.97 kg)
*Specifications subject to change without notice. Mass & dimensions are approximate
-
Brand:
AVPro Edge
- Type:
- 18Gbps Bandwidth Support
- 4K60 4:4:4 Support
- Ultimate HDR Support (HDR 10 & 12 Bit, Dolby Vision, HLG)
- Available Dolby Atmos & DTX-X Audio Downmixing Input Cards
Invisible Compression - ICT is a technology we developed to ensure 18Gbps distribution over standard category cable. That means what you put in is what you see on the screen. No need to worry about compression artifacts and banding like you find with other compression methods.
Ultimate HDR Support - This matrix supports all flavors of HDR in all formats. Including HDR, HDR10, HDR10+, Dolby Vision, HLG, BBC, and NHK. All of them are permitted in up to 4K 60Hz and up to 12 Bit Deep Color. All color space compressions are compatible.
Extreme EDID Management - With 29 onboard EDID's, including HDR EDID's, not getting a picture is simply a thing of the past. You can manage the input side of the switch by selecting a preloaded EDID. It also can INSTANTLY read an EDID from any connected display and apply it to the desired input, all with the push of a button. Goodbye, EDID problems...
Front Panel Screen - Make setup a breeze! The front panel allows you to do basic configurations, including; EDID, Audio, Matrixing, and network. All without connecting a PC or hooking anything up. This additional mode of control is a welcome resource on the job site.
AVPro Edge User Interface In 2021, AVPro Edge gave the User Interface a significant overhaul, putting the full power of the switch in the integrator's hands. We designed The AVPro Edge User Interface with mobile devices in mind, so feel free to use your phone or tablet for real-time control of switching, scaling, EDID, signal health, control routing, audio routing, and much much more.
MCS (Mission Critical Scaling) Technology with MCS technology, the power is given to the integrator to choose what types of signals end up on the screen. Scaling is ideal when working with different kinds of TVs and Projectors in the same system.
Audio Downmixing - There is no need to set your source to 2-channel, no matter what kind of audio this matrix switcher receives. Converting audio to 2-channel in the matrix allows you to deliver Dolby Atmos sound to a home theater and 2-channel audio to a bedroom simultaneously.
Dual Audio De-Embedding - Our unique Audio De-Embedding allows:
- The user can extract 2 Channel PCM audio from each output. NOTE: the Analog Port only supports 2CH PCM
- It features four digital optical Toslink outputs with support for 7CH LPCM, Dolby Digital, Dolby Digital +, DTS, DTS Master Audio.
Extracted audio routing options include
- Bind to output (extracted audio swaps with the video, this is the default mode)
- Bind to input (extracted audio is fixed to the corresponding input by the same number)
- Independent (extracted audio is routed however integrators like and there are commands to allow it to function as a separate matrix)
Volume Control - The ability to manage the sound of an installation is essential. AVPro makes that process easier by allowing you to control the volume of each of the de-embedded audio outputs separately via control commands.
Easier Installation - With the AVPro Edge User Interface, many easily accessible tools are available inside our web-based user interface. Installers of all experience levels can fully deploy large video distribution systems more effortlessly than ever before. Companies will do more jobs and increase profits by finishing installs quicker and saving experienced technicians time and energy to direct towards new installations.
Identify Issues Before Leaving the Job Site - The AVPro Edge User Interface allows integrators to follow up and check each video signal's health. Integrators can use the HDMI and HDBaseT diagnosis tools to narrow down a problem with the cabling, EDID, or resolutions if there is an issue. Ensure integrator technicians are working on new installs instead of fixing systems that have already been wrapped up. Integrators can leave a site confident that they won't have to be back while conveying an expert installation to their clients and earning more money.
Built-In Simple Video Switching Control - With Admin control, integrators can set up a user with limited access to the User Interface. This feature is perfect for smaller bars and restaurants that need to have their staff control straightforward source switching without having access to the entire setup, diagnostics commands, or volume controls. In some instances, this can help integrators work around some clients' budget restraints, gaining installations they might not have won without the flexibility AVPro Edge products provide.
