Audix M45

Miniaturized Shotgun Ceiling Microphone

M45

High-Sensitivity Shotgun Ceiling Microphone optimized for vocal intellegibility.

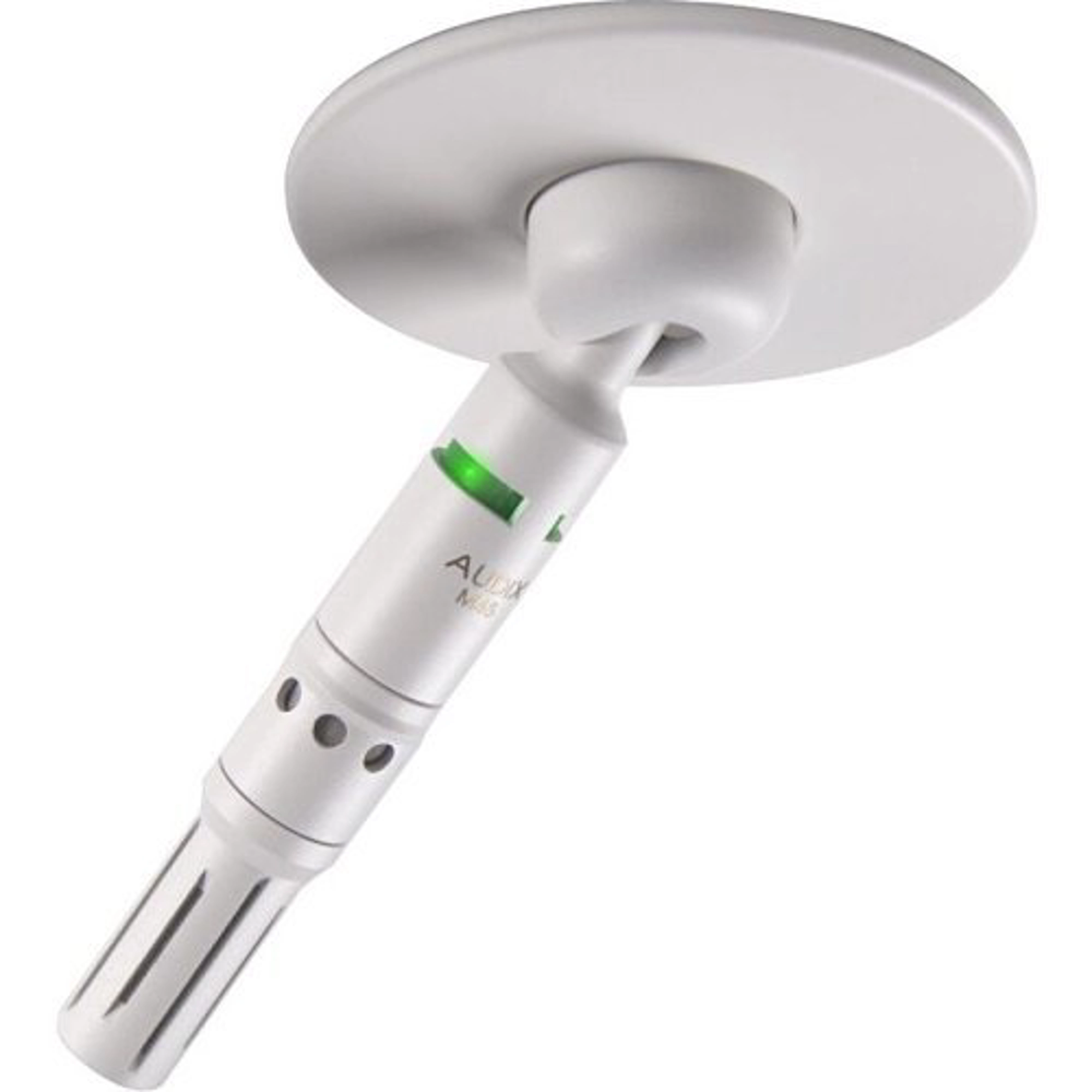

The M45 is a miniaturized shotgun condenser microphone with a swivel-and-pivot base for convenient aiming and positioning. The M45 is optimized for vocal intelligibility and offers high sensitivity, an integrated preamp, immunity from RF interference, and is easy to install in a 1-1/2 hole with no additional tools required.

Mic-level signal and LED control is over an RJ45 connection. An adapter is included to convert from RJ45 to an 8-conductor pluggable terminal block.

For use in Dante® networks, the optional AUDIX DN4 Enhanced Onramp for Dante | AES67 supports up to four devices and includes LED logic control.

Designed, machined, assembled, and tested by Audix in Wilsonville, Oregon.

• Transducer Condenser
• Frequency Response 85 Hz- 8kHz
• Polar Pattern Supercardioid
• Output Impedance 150 Ohms
• Sensitivity 98 mV / Pa @ 1 kHz
• Signal to Noise Ratio 72 dB
• Maximum SPL >124 dB
• Dynamic Range 100 dB
• Operating Voltage 18-52 V
• Connector RJ45
• Materials / Finish Brass & Aluminum /White
• Weight 195g

• High sensitivity and low noise
• Easy to install and aim
• Optimized for vocal intelligibility
• Immunity from RF interference
